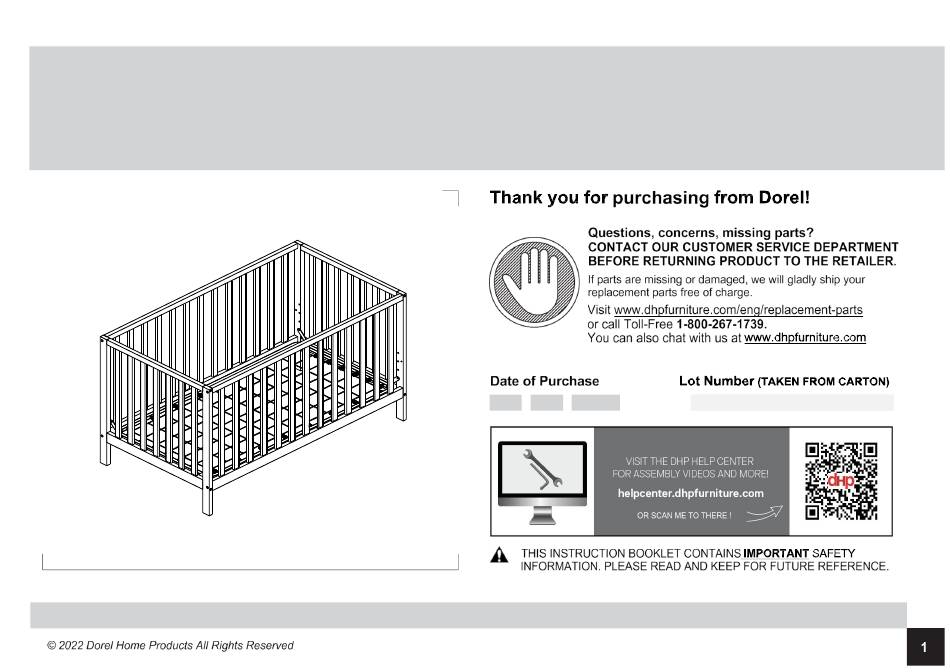

- Page 1 8074179 (White) 8074279 (Walnut) EMA 3-IN-1 CRIB Weight Limit: 50 Lb /22.7 Kg J.B. - 2024/01//26 B34807417900-100083...
- Page 2 Use Allen Key (Included)
-
Page 6: Part Numbers
POST X 2 PCS SIDE PANEL X 2 PCS POST X 2 PCS FRONT/BACK PANEL X 2 PCS MATTRESS SUPPORT x1PC PART NUMBERS PART NUMBERS PART NUMBERS PART NUMBERS 8074179 8074279 PART LABELS WHITE WALNUT T509560 T509610 T509570 T509620 T509580 T509630 T509590 T509640... - Page 7 Ø1/4’’X 13mm X 82mm Ø1/4’’X 13mm X 55mm Ø10mm X 15mm BOLT X 8 PC BOLT X 8 PC BARREL NUT X 16 PC Ø1/4’’X 13mm X 12mm Ø1/4’’X 13mm X 12mm BOLT X 16 PC BOLT X 4 PC ALLEN KEY X 1 PC T8074179 -00 8074179 (White)
- Page 8 Insert barrel nuts into side panel B as shown. Attach side panel B to the post (A & C) with bolts Use Allen key to tighten all bolts firmly.
- Page 9 Insert barrel nuts into front/back panel D as shown. Attach side panel B to front/back panel D with bolts Use Allen key to tighten all bolts firmly.
- Page 10 Attach mattress support E to the posts (A & C) of side panels B with mattress support bolts Block the indicated unused holes with bolts Use Allen key to tighten all bolts. To Re-position the mattress support : Loosen the bolts and adjust the mattress support as needed.
- Page 11 This Crib offers you four height positions of mattress support. When child is able to pull to standing position, set mattress to lowest position and remove bumper pads, large toys and other objects that could serve as steps for climbing out.
- Page 12 Step 4 Insert barrel nuts into front/back panel D as shown. Attach front/back panel D to the . post (A & C) with bolts Use Allen key to tighten all bolts firmly.
- Page 14 Convert your 3-in-1 Crib into a toddler bed with the Daybed & Toddler Rail (Model numbers: DA8015109 (White), 8118209 (Walnut)
- Page 15 8074179 / 8074279 (Blanco / Nogal)
- Page 17 Siempre siga las instrucciones de montaje. El peso máximo para esta cama no puede exceder las 50 libras (22.7 kilos).
- Page 18 8074179 (Blanco) T8074179 -00 8074279 (Nogal) T8074279 -00 NÚMERO DE PIEZAS NÚMERO DE PIEZAS NÚMERO DE PIEZAS NÚMERO DE PIEZAS 8074179 8074279 PART LABELS BLANCO NOGAL T509560 T509610 T509570 T509620 T509580 T509630 T509590 T509640 T509600 T509600...
- Page 19 50 Lb / 22.7 Kg Paso 1 Paso 4 Inserte en B, como se muestra. Inserte en D, como se muestra. Adjunte B a (A & C) con . Adjunte D a (A & C) con . Utilice la llave Allen para apretar todos los pernos. Utilice la llave Allen ...
- Page 21 8074179 / 8074279 (Blanc / Noyer)
-
Page 24: Liste Des Pièces
T8074179 -00 8074179 (Blanc) 8074279 (Noyer) T8074279 -00 LISTE DES PIÈCES LISTE DES PIÈCES LISTE DES PIÈCES LISTE DES PIÈCES ÉTIQUETTE 8074179 8074279 DES PIÈCES BLANC NOYER T509560 T509610 T509570 T509620 T509580 T509630 T509590 T509640 T509600 T509600... - Page 25 50 Lb /22.7 Kg Étape 1 Étape 1 Étape 1 Étape 1 Étape 4 4 4 4 Étape Étape Étape Insérez dans B, tel qu'illustré. Insérez dans D, tel qu'illustré. Fixez B à (A & C) avec . Utilisez pour serrer fermement tous les Fixez D à...
