Summary of Contents for Marcum Technologies PURSUIT SD+

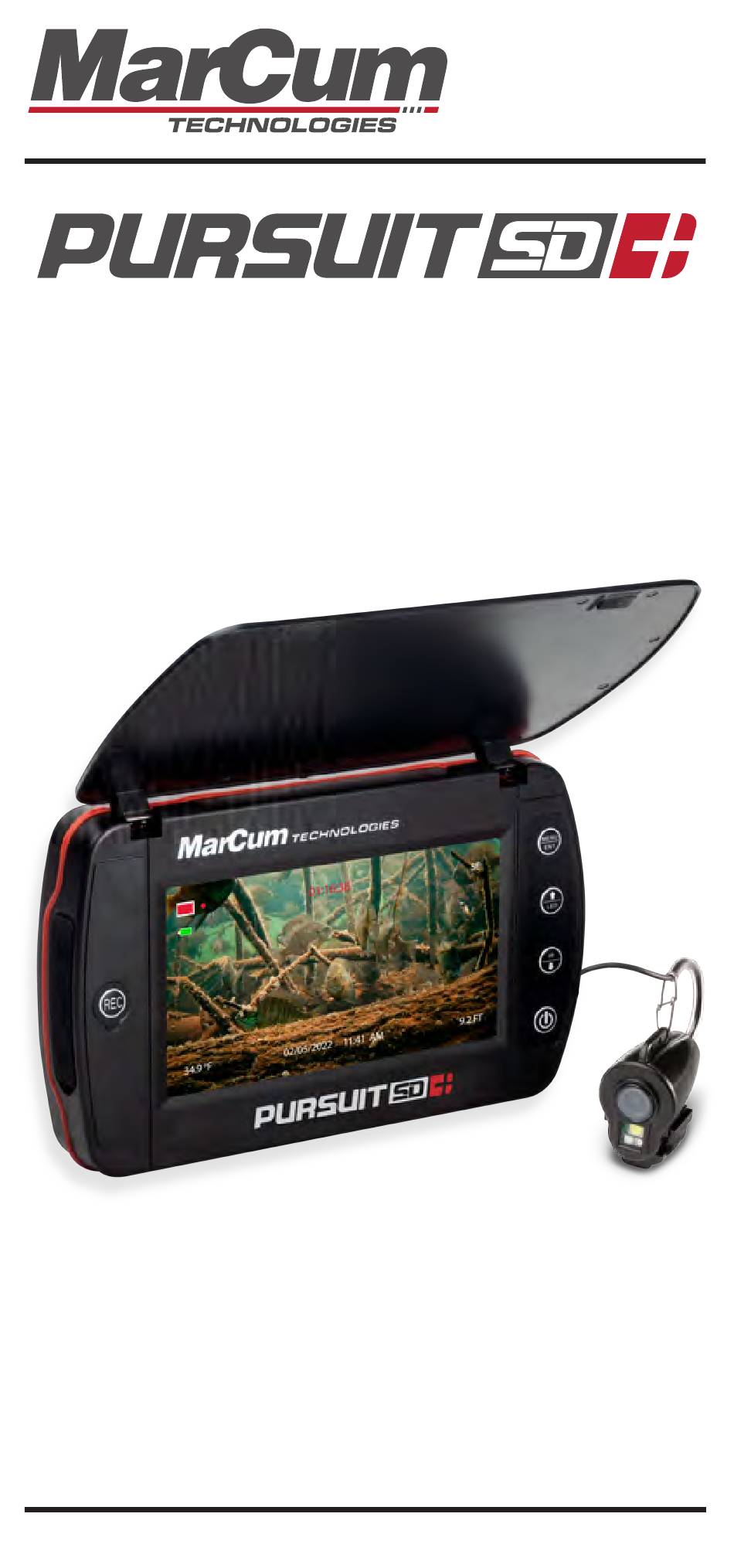

- Page 1 www.MarCumTech.com...
-
Page 2: Specifications
www.MarCumtech.com Pursuit SD+ The Pursuit SD+ viewing system comes complete with everything needed to enjoy the world of underwater viewing. It features a 5” Screen with a multi-purpose sun shield/screen protector. The camera features both visible LED lights as well as a stealthy infrared option for viewing in low light situations. -
Page 3: Operation
www.MarCumtech.com To charge the PURSUIT SD+, power the system off (5 second hold of power button) and locate the rubber cap on the left side of the monitor. Lift the rubber cap to expose the USB Charging port. Insert the supplied USB cable and connect it with the supplied charger, or any USB port. - Page 4 www.MarCumtech.com Pursuit SD+ MENU OPTIONS For ease of use, the menu system on the Pursuit SD+ times out after a 5 second period of inactivity and defaults back to the camera image without any additional keystrokes required. Enter the Menu system with a single press of the top Menu/Enter button. Use the Up or Down arrow buttons to navigate to the desired selection, followed by the Enter button to enter and change that setting.
-
Page 5: Dvr Operation
www.MarCumtech.com Video Out Port On the left side of the monitor there is a rectangular rubber cap that protects the charging port and the Video Out Port. Please make sure this cap is closed when not using the Video Out Port to avoid potential water damage. -
Page 6: Using Your Camera
www.MarCumtech.com Taking a Photo The PURSUIT SD+ has the ability to take a screen shot photo of what is currently visible on the screen. To take a picture, complete a quick press of the REC button. A red circle icon will momentarily appear in the upper Left-hand corner of the screen and then disappear, indicating that a picture was taken. -
Page 7: On-Screen Displays
www.MarCumtech.com NOTE : The Color kill feature will turn on automatically when the camera’s light sensor doesn’t detect enough light for optimal color viewing. This can happen in low light conditions, in deep water, or when the ice is very thick and/or covered with snow. -
Page 8: Operating Positions
www.MarCumtech.com Camera Direction The direction the camera is facing is displayed in the upper Right-hand corner of the screen. This direction will display as directions of the compass (N, NE, E, etc.) Compass direction is based off absolute “True North” direction. -
Page 9: System Maintenance
MarCum Technologies Website: www.marcumtech.com MarCum Technologies will repair or replace any components that fail in normal use. Failures due to abuse, misuse, unauthorized alteration, modification, or repair are not covered. The warranty is valid only for the original owner who purchases the system from an authorized dealer. -
Page 10: How To Obtain Service
www.MarCumtech.com immediately seek medical attention or it may result in injury to the eye(s). Do not use the battery in a location where static electricity or magnetic fields are great or it may result in damage to the battery safety devices. Do not leave the battery in high temperatures (i.e. - Page 11 “pre-paid freight” and insured to MarCum Technologies. It is the customer’s full responsibility to track their products sent out in the mail or other forms of delivery service. MarCum Technologies will not be liable for packages lost in route to us. Unless specified otherwise, do not include batteries or other accessories when returning the product for repair.
- Page 12 MarCum Technologies 3943 Quebec Ave N Minneapolis, MN 55427 MarCum User Manuals are available for downloads from www.MarCumtech.com. - 12 -...
