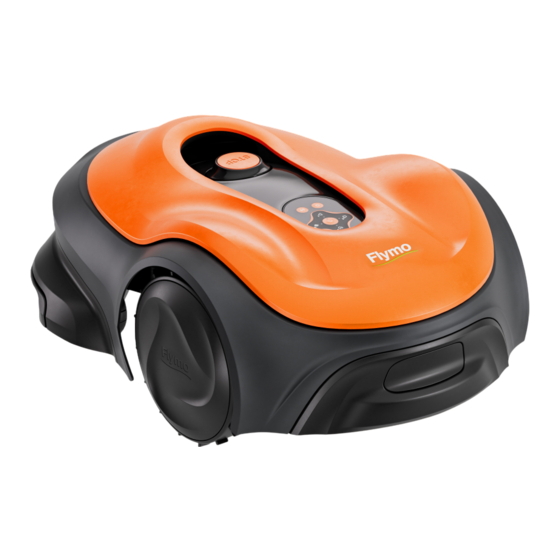

- Page 1 Robotic lawn mower UltraLife Operator’s manual Easier by Design www.flymo.com/uk...
-
Page 2: Table Of Contents
3.8 To extend the boundary wire or the guide wire... 20 9.1 Technical data.............45 3.9 After the installation of the product......20 9.2 Registered trademarks........46 3.10 To download and pair with the Flymo 10 Original EU Declaration of Conformity ® Bluetooth app............21... -
Page 3: Safety
It is important that all wires are • The product must only be used with the equipment connected correctly. recommended by Flymo. All other types of use are • Follow the maintenance instructions and if incorrect. necessary use Flymo original spare parts, refer to •... -
Page 4: Safety Instructions For Installation
Refer to • The product must only be operated, maintained page 27 . Flymo recommends to set the product and repaired by persons that are fully conversant to operate when the work area has no activity. with its special characteristics and safety The product can cause injury to animals at night in regulations. -
Page 5: To Lift And Move The Product
of electrical/mechanical abuse. Avoid storage in direct sunlight. 1.7 To lift and move the product WARNING: The product must be set to OFF before you lift the product. The product is disabled when the indicator on the ON/OFF button goes off. CAUTION: Do not lift the product when it is parked in the charging station. -
Page 6: Product Description
The serial number is on the product carton and on the product rating plate. Refer to • Use the serial number to register your product on www.flymo.com. 2.1.1 Support the edge cutting disc makes it possible for the product to cut near the edges of the lawn. -
Page 7: Product Overview
2.2 Product overview UltraLife 600 UltraLife 800/1200/1500 ON/OFF button 14. Rear wheels Keypad 15. Edge cut disc Stop button 16. Rating plate Top cover 17. Stakes Body 18. Connector for the loop wire Front wheels 19. Couplers for loop wire Charging station 20. -
Page 8: Symbols On The Product
25. Gardena smart Gateway LAN-cable The low-voltage cable must not be 26. Gardena smart Gateway shortened, extended or spliced. 27. Gardena smart Gateway power supply 28. Operator’s Manual, Quick Guide and instruction for Do not use a trimmer nearby the low- the GARDENA smart system voltage cable. -
Page 9: Led Status Indicator On The Keypad
• Use the Secondary area button (D) to cut in a work area that does not have a charging station. Refer Secondary area on page 27 . • Use the GO button (E) to start the operation of the product on the main area. •... - Page 10 Schedule or in Spot cutting . Cutting main area according to the set Cutting, in operating mode Override schedule . operating mode Parked until the next schedule or Parked until further Cutting in operating mode Secondary area . notice . Error.
- Page 11 Charging or installs firmware update. 2153 - 002 - Introduction - 11...
-
Page 12: Installation
3 Installation 3.1 Introduction - Installation CAUTION: Holes with water in Refer to www.flymo.com for more information about the lawn can cause damage to the installation and instruction videos. product. We recommend you to update the firmware before you •... -
Page 13: To Examine Where To Put The Boundary Wire
CAUTION: Make sure that the blades on the product do not cut the low-voltage cable. Max 5 cm/2" CAUTION: Do not put the low-voltage Max 5 cm/2" cable in a coil or below the charging station plate. The coil causes interference with the signal from the charging station. - Page 14 eyelet with approximately 20 cm / 8 in. of the boundary • Put the boundary wire 30 cm / 12 in. (C) from an wire. obstacle that is 1-2 cm / 0.4-0.8 in. high. " 30 cm / 12 " 1-2 cm / 0.4-0.8 •...
- Page 15 CAUTION: Do not put the guide wire across the boundary wire. >10% 0-25% CAUTION: Isolate or remove obstacles that are less than 15 cm / 5.9 in. in height. Isolate or remove obstacles that slope slightly, for example, stones, trees or roots. This will prevent damage to the blades of the product.
-
Page 16: To Examine Where To Put The Guide Wire
3.4.4 To examine where to put the guide wire Put the guide wire from the charging station through the work area and connect it to the boundary wire. 0 cm / 0" 3.4.3.4 To make a secondary area Make a secondary area (B) if the work area has 2 areas that are not connected with a passage. -
Page 17: Installation Of The Product
• Put the guide wire in all parts of the work area. • If the work area has a passage (B) with no guide wire installed, the minimum distance between • We recommend to put the guide wire in a line in all the boundary wires is 2 m / 6.5 ft. -
Page 18: To Install The Charging Station
3.5.2 To install the charging station CAUTION: Do not make new holes in the charging station plate. CLICK! CAUTION: Do not put your feet on the baseplate of the charging station. WARNING: Make sure that the plugs of the low-voltage cable and the power supply unit are clean and dry before you connect them. -
Page 19: To Install The Boundary Wire
min 30 cm / 12” Cut the boundary wire 1-2 cm / 0.4-0.8 in. above each connector. Connect the power supply cable to a 100-240V Push the right connector onto the metal pin on the power outlet. charging station with the mark "BOUNDARY->". Note: The product can be put in the charging Push the left connector onto the metal pin on the... -
Page 20: To Put The Wire Into Position With Stakes
3.7 To bury the boundary wire or the Put the 2 ends of the boundary wire and the end of the guide wire into the coupler. guide wire Note: Make sure that you can see the ends • Cut a groove in the ground with an edge cutter or a of the wires through the transparent area of straight shovel. -
Page 21: To Download And Pair With The Flymo Bluetooth App
OK button. Refer to code on page 23 . Note: We recommend you to change to a ® personal PIN code in the Flymo Bluetooth app. Push the Connect button on the product to enable the pairing operation. Note: ®... -
Page 22: Settings
Refer to To prevent that the grass in the narrow passage area and make a daily schedule on page 25 . is worn, Flymo recommends to set a low percentage for PassageSense . CAUTION: Do not cut the lawn more... -
Page 23: Lawnsense
station to the starting point. The factory setting is 60 cm / Note: ECO mode to save energy and to prevent 2 ft. interference with other equipment, for example hearing • Set the starting point at a short distance from the loops or garage doors. - Page 24 Note: PIN code, Loop signal and Messages are not Reset all user settings . reset when you select 24 - Settings 2153 - 002 -...
-
Page 25: Operation
5 Operation 5.1 To use the ON/OFF button 5.3 Operating modes The following operating modes are available: WARNING: Read and understand the • Main area safety chapter before you use the product. Override schedule • Spot cutting • • Push the ON/OFF button for 3 seconds to set the Park / Schedule •... -
Page 26: Override Schedule
Push the OK button. Push the OK button. 5.3.2 Override schedule 5.3.4 Park / Schedule Select Override schedule to temporarily override the Operating mode Park / Schedule means that the product schedule settings. You can select to override the goes back to the charging station where it stays until the schedule settings for 3 hours. -
Page 27: Secondary Area
5.4 To stop the product Push the Park button for 3 seconds. Push the STOP button on top of the product. Push the OK button. Note: To change the operating mode of the product, push the STOP button and the product will be in idle mode where you can set an operating mode. -
Page 28: To Charge The Battery
5.6 To charge the battery WARNING: Only charge the product using a charging station which is intended for it. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery. In the event of leakage of electrolyte flush with water and seek medical help if it comes in contact with the eyes etc. -
Page 29: Introduction - Maintenance
Do not use solvents for cleaning. Flymo recommends to use a special cleaning and maintenance kit. Speak to your Flymo service for more information. 6.3.1 To clean the product Remove the body of the product. Refer to remove the body of the product on page 29 . -
Page 30: Replacement Of The Blades
WARNING: Flymo can only guarantee safety if you use Flymo original blades with Clean the body of the product and the chassis with the embossed crowned H-mark logotype. a brush and running water. -
Page 31: Firmware Update
Attach new blades and screws. Remove the HMI cover. Make sure that the blades can pivot freely. 6.5 Firmware update Flymo regularly updates the firmware for the product. You can update the firmware of the product in 3 different procedures: •... -
Page 32: Battery
6.7 Winter service and clean surface. Remove the 6 screws on the battery cover with a Take your product to your Flymo service for service prior Torx 20 to remove the battery cover. to winter storage. Regular winter service will maintain the product in good condition and create the best conditions for a new season without any disruptions. - Page 33 • Thorough cleaning of the body, the chassis, the blade disc and all other moving parts. • Testing of the product’s function and components. • Checking and, if required, replacing wear items such as blades and bearings. • Testing the product’s battery capacity as well as a recommendation to replace battery if necessary.
-
Page 34: Troubleshooting
7 Troubleshooting 7.1 Messages The messages in the table below are shown in the app. Speak to your Flymo service if the same message shows frequently. Message Cause Action Wheel motor blocked, left/ Grass or other object around the drive Remove grass or other object. - Page 35 Refer to aged because of corrosion. plates and contact plates on page 30 . If the problem stays speak to your Flymo service. Slipped The product has got caught in something Free the product and correct the cause of and has been slipping.
- Page 36 Remove or cre- ate an island around objects that can cause the chassis to be lifted. If the prob- lem stays speak to your Flymo service. Wheel drive problem, right/ Grass or other object around the drive Clean the wheels and around the wheels.
- Page 37 New loop signal on page 23 . If the an error. Refer to problem stays speak to your Flymo service. Slope too steep The product stopped because the slope is Change the installation of the boundary wire too steep.
- Page 38 Message Cause Action Cutting system imbal- The product has senses vibrations in the Examine that the blades and screws are not ance blade disc. damaged or worn. Make sure that all blades are correctly installed and that there is only one blade attached in each position on the blade disc.
-
Page 39: Indicator Lamp In The Charging Station
7.2 Indicator lamp in the charging station The indicator lamp in the charging station must show a solid or flashing green light for a correct installation. If not, follow the instructions in the troubleshooting table below. Speak to your Flymo service for more information. Light Cause... -
Page 40: Symptoms
7.3 Symptoms If the product does not operate as usual, follow the symptoms table below. Speak to your Flymo service if you cannot find the cause for the fault. Symptoms Cause Action The product has diffi- The guide wire is not put straight in a line... -
Page 41: Find Breaks In The Loop Wire
Symptoms Cause Action To do the Uneven mowing re- The product operates for a small number of Increase the cutting time. Refer to Schedule settings on page 22 . sults. hours per day. For the shape of the work area it is necessa- Change the settings of the areas where the ry to adjust the settings for Starting points to... - Page 42 disconnect <-BOUNDARY. Connect a new loop wire to <-BOUNDARY. Connect the other end of <-BOUNDARY GUIDE BOUNDARY-> this new loop wire at the middle of the suspected wire section. POWER <-BOUNDARY Switch the connections between the guide wire and the boundary wire in the charging station. Start by switching connection BOUNDARY->...
- Page 43 Continue until only a very short section of the wire remains which is the difference between a solid green light and a flashing blue light. Then follow instruction in step 5 below. If indicator lamp still flashes blue in step 3 above: Put BOUNDARY->...
-
Page 44: Transportation, Storage And Disposal
If you keep the charging station outdoors, do not disconnect the power supply and the connectors. • Speak to your Flymo service for information about available storage accessories for your product. 8.3 Disposal • Obey the local recycling requirements and applicable regulations. -
Page 45: Technical Data
9 Technical data 9.1 Technical data Dimensions UltraLife 600 UltraLife 800/1200/1500 Length, cm Width, cm Height, cm Weight, kg 10.4 Electrical system UltraLife 600 UltraLife 800 UltraLife 1200 UltraLife 1500 Battery, Lithium-Ion 18.0 5937420-03, 5937420-04, 5937420-05 V/2.0 Ah Art.No Power supply (28V DC), V... -
Page 46: Registered Trademarks
Bluetooth Bluetooth SIG, inc. and any use of such word mark and logos are registered trademarks owned by marks by Flymo is under license. App Store is a trademark of Apple Inc. Google Play is a trademark of Google LLC. -
Page 47: Original Eu Declaration Of Conformity
10 Original EU Declaration of Conformity 2153 - 002 - Original EU Declaration of Conformity - 47... -
Page 48: Original Uk Declaration Of Conformity
11 Original UK Declaration of Conformity 48 - Original UK Declaration of Conformity 2153 - 002 -... - Page 49 2153 - 002 - Original UK Declaration of Conformity - 49...
- Page 50 50 - Original UK Declaration of Conformity 2153 - 002 -...
- Page 51 2153 - 002 - Original UK Declaration of Conformity - 51...
- Page 52 Copyright © 2024 Flymo S.A. All rights reserved Flymo and other product and feature names are registered trademarks of Flymo S.A. The Husqvarna UK policy of continuous improvement and updating means that specifi cations can be altered without prior notice. All measurements quoted are approximate.
