Nikrans LCD-300GDW Installation

Nikrans LCD-300GDW Installation

Cell phone amplifier

Advertisement

Quick Links

WWW.MOBILE-SIGNAL-BOOSTERS.SHOP
CELL PHONE AMPLIFIER
Nikrans LCD-300GDW
Calls/GSM / 3G / 4G/LTE / 5G
Indoor coverage: 3300 ft²
Frequency bandwidth of 900, 1800, 2100 MHz
https://www.mobile-signal-boosters.shop/
repeater-31/
Nikrans
LCD-300GDW
Free Support
3-YEAR warranty & service
30-DAY return policy
3-7 business day delivery
Chat with us
info@mobile-signal-boosters.shop
+448000698689
Indoor Antennas /
Outdoor Antennas
Safety for Human Health
Conformity to CE and RoHS standarts
Full kit ready to use
Full duplex mode (improvement of outcoming and incoming signal)
(Sales)
SPECIFICATION
Indoor coverage: 3300 ft²
Up-link freq: 890-915MHz, 1710-1785MHz,
1920-1980 MHz
Down-link freq: 935-960MHz, 1805-1880MHz,
2110-2170 MHz
Up-link Gain: 57 dB
Down-link Gain: 63 dB
Power supply: Input AC110~240V,output DC5V/3A
Working t °C: -25/+55
IP-Code: IP40
Humidity: 5 - 95 %
Size (mm): 204*164*44
Booster Weight: 1.2 kg
dBm: 13 dBm

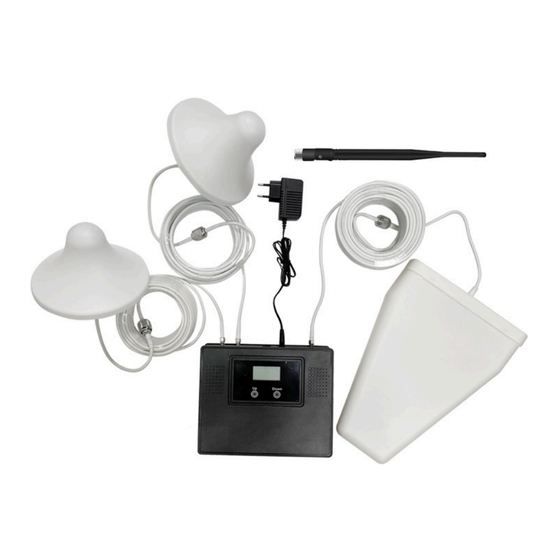

PACKAGE
Cables
Power supply
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the LCD-300GDW and is the answer not in the manual?

Questions and answers

Summary of Contents for Nikrans LCD-300GDW

  • Page 1 WWW.MOBILE-SIGNAL-BOOSTERS.SHOP CELL PHONE AMPLIFIER Nikrans LCD-300GDW SPECIFICATION Indoor coverage: 3300 ft² Up-link freq: 890-915MHz, 1710-1785MHz, 1920-1980 MHz Down-link freq: 935-960MHz, 1805-1880MHz, 2110-2170 MHz Up-link Gain: 57 dB Down-link Gain: 63 dB Power supply: Input AC110~240V,output DC5V/3A Working t °C: -25/+55...
  • Page 2 As a result, you will not have to face the inconvenience of adjusting gains manually. • Certified by CE and RoHS. LCD-300GDW is a high-quality device certified for its quality and safety standards. Hence, it is 100% safe to use for humans and has no known impact on health and environment.
  • Page 3 INSTALLATION SCHEME 1. Find the best position of an outdoor antenna (on the roof/ outside the window where your mobile phone displays 2-3 bars of mobile coverage). Choose the best direction of the antenna – it’s recommended to direct it towards the nearest GSM base station.
