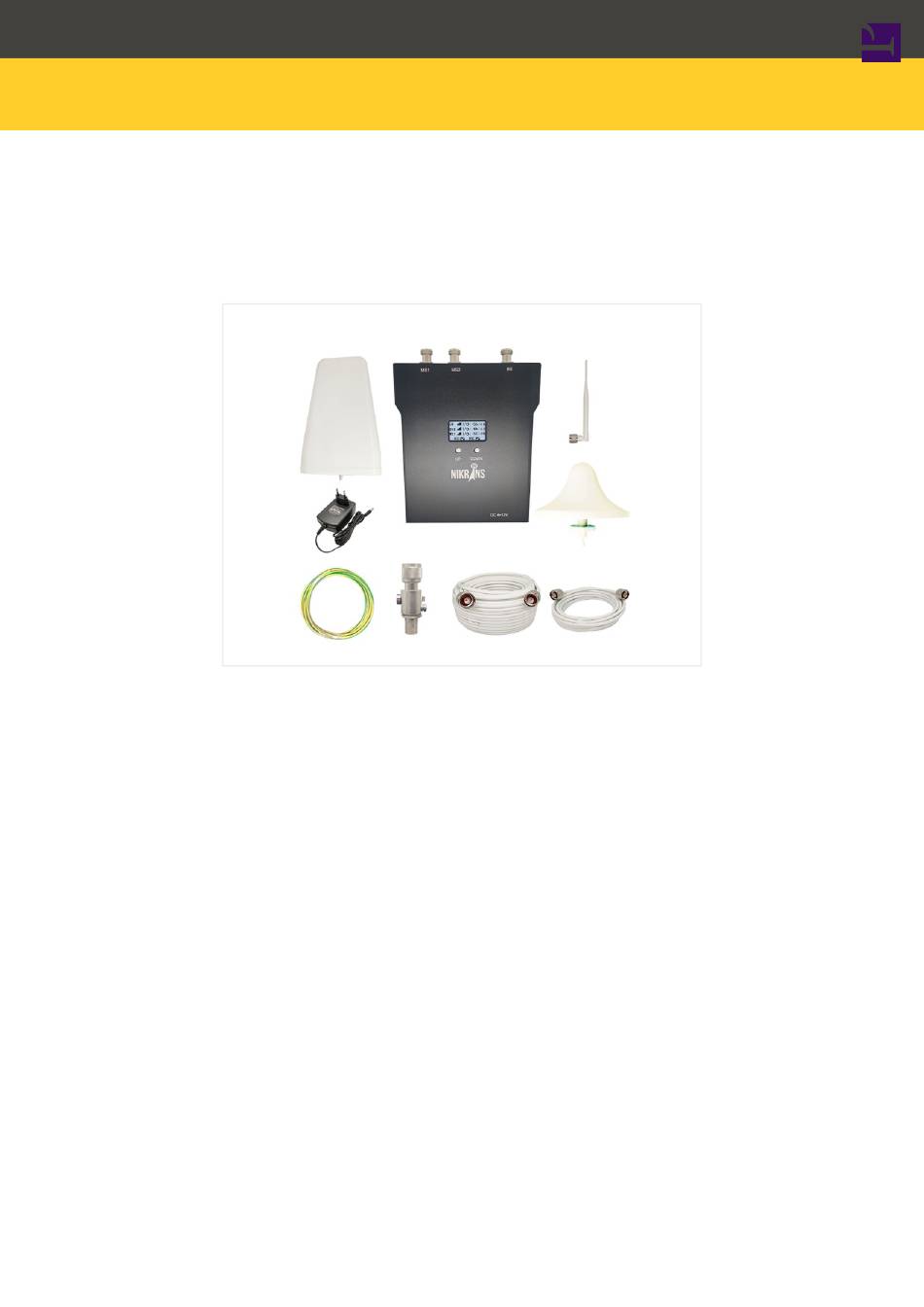

- Page 1 WWW.MOBILE-SIGNAL-BOOSTERS.SHOP INSTALLATION GUIDE CELL PHONE AMPLIFIER Nikrans BD-300GDW Freq.: 900, 1800, 2100 MHz Coverage: 3300 ft²...
-
Page 2: Safety Warnings
PREFACE This user’s manual describes the installation and maintenance of wide band consumer boosters. Please do read user manual carefully before installing and maintaining repeaters. The information in this manual is subject to change without prior notice. 1. SAFETY WARNINGS Users must follow the principles below⯑... - Page 3 2. INTRODUCTION AND REASONS FOR WEAK CELLULAR SIGNALS Mobile Signal Booster is a perfect solution for providing improvement of cellular signal reception inside a house, office, restaurant, VIP Room, apartment, building or shopping mall. Generally cell phones cannot pick up or maintain a strong cellular signal due to one of the two following reasons: 1.
-
Page 4: Model Description
3. MODEL DESCRIPTION Nikrans BD-300 GDW is a modern mobile signal booster that meets all the standards of the industry and even goes beyond them. The device is known for the stability of its functioning and its capacities to improve even the weakest GSM, 3G and 4G signals that can’t be even caught by your smartphone. This booster is very easy to use. -
Page 5: Specification
4. SPECIFICATION Indoor coverage: 3300 ft² Up-link freq: 880-915MHz, 1710-1785MHz, 1920-1980 MHz Down-link freq: 925-960MHz, 1805-1880MHz, 2110-2170 MHz Up-link Gain: 70+-2 dB Down-link Gain: 70+-2 dB Power supply: Input AC110~240V, output DC6V/12A, 3A Working t °C: -25/+55 Humidity: 5 - 95% Size (mm): 220*175*47 Booster Weight:... - Page 6 5. REPEATER SYSTEM OVERVIEW The picture below shows how simple and fast booster installation is and how effectively it works. A Yaggi or panel antenna (it depends on the booster model and its power), as donor/outdoor antenna, is installed at the top of the roof to pick up good mobile signals from the base station, and sends them through the cable to the booster where the signals get amplified significantly;...
-
Page 8: Outdoor Antenna Installation
6. ANTENNAS AND CABLES SETTING UP 6.1. Outdoor antenna installation The repeater’s main function is to improve weak RF signals in an area. The formula is: Input power + Gain= Output power. The signal strength from an outdoor antenna directly affects the efficiency of the indoor coverage. -
Page 9: Indoor Antenna Installation
Installation of a panel antenna as an outdoor antenna Installation of Yagi wide band antenna as an outdoor antenna Installation of a Yaggi antenna as an outdoor antenna Cable layout and connector assembly 1. Keep the type, specifications, routing direction, location and curvature radius of cables in compliance with the model requirements. - Page 10 1. Omni antenna (ceiling Omni or whip antenna) shall be installed in the center and radiate all directions. 2. It is better to use a directional panel antenna or Yaggi antenna when the area shape is long and narrow (corridors, long row of houses in two sides, tunnels or elevators or rural open space). Requirements to indoor antenna installation: •...
-
Page 11: Repeater Installation
7. REPEATER INSTALLATION 7.1 Installation requirements 7.1.1 Installation Location Requirements 1. The repeater shall be installed indoor in a cool, dry and ventilated room without erosive gas or smoke, or on a cool and ventilated wall to ensure excellent heat dissipation. 2. - Page 12 INSTALLATION STEPS 1. Find an appropriate position for an outdoor antenna. ( see the requirements in 6.1. sect. ) 2. Plug in the outdoor antenna to the mobile booster from BS side and fasten tightly. 3. Plug in the indoor antenna to the mobile booster from MS side and fasten tightly. 4.
-
Page 13: Repeater Settings
7.2.2 Repeater’s ports description 1. Outdoor port: connected with the outdoor antenna by cable 2. Indoor port: connected with indoor antenna directly or by cable 3. DC IN: connected with power supply. 7.2.3 Accessories selection Choosing accessories pay attention to the two characteristics – frequency and impedance. All accessories shall support the repeater’s frequencies. -
Page 14: Accessories Selection
BS - Outdoor port for connecting an external antenna. MS1 and MS2 - Indoor ports for connecting two internal antennas. DC 6-12V: for connecting a power supply. Note: You can use only 1 indoor antenna instead of 2 in case the area to cover is small (if distance between two antennas is less than 3m). - Page 15 2. After the device finishes starting up, the main screen with signal readings will be displayed. G9 – 900 MHz signal D18 – 1800 MHz signal W21 – 2100 MHz signal I - Input signal that the device receives from outdoors. This value is always measured as negative with the sign “-”...
- Page 16 Max Gain – The booster’s highest gain that is set by the factory. Working Gain – The current gain measured while the booster is working under different conditions. When the Input signal is weak, the booster will work with at the max gain, but when the device detects too much strong input signal, it will automatically reduce the gain to avoid self-oscillation of the system.
-
Page 17: System Test
The device detected that the external antenna is too close to the internal antennas. The booster will shut down automatically to protect the system from damage. It will restart after the problem is resolved. Solution: Ensure good antenna isolation. • Keep minimal distance (10 - 20m) between the outdoor and indoor antennas. The stronger input signal, the larger distance between antennas should be. - Page 18 Mode on your cell phone, use bars on the screen of your mobile phone to evaluate the change. If the signals in most areas have not been improved, please check recommendations below again: - Weak input signal leads to low output power. To increase input signal power level, change the direction of the outdoor antenna or its installation position or replace it for an antenna with higher gain.
- Page 19 7.4.2 Repeater can not communicate in Power-ON status 1. The power is on but there is a signal fluctuation or a flash signal. The phone call cannot be made/ received. It shall be caused by the insufficient isolation between outdoor and indoor antennas. Please take the following measures: - Firstly check whether the alarm LED lights.
- Page 20 8. FAQ 1. Will booster increase the RF radiation? No, it will decrease instead. Every cell phone irradiates heavily being in zones with poor mobile signal as a cell phone is constantly in searching mode. The danger is your cell phone is about 2cm to your body, which makes its usage rather harmful.
- Page 21 9. ABOUT NIKRANS BRAND Nikrans boosters is the result of a 7-year experience in selling cell phone signal amplifiers throughout EMEA, APAC, NAR and other regions. For all these years we’ve been following the market carefully listening to customers and industry leading experts with the aim of working up our own vision and quality standards in signal amplification.
- Page 22 Hereby, Nikrans declares that this signal booster is in compliance with the essential requirements and other relevant provisions of Radio Equipment Directive (RED) 2014/53/UE (CE marking). info@mobile-signal-boosters.shop · +448000698689 (Sales) · www.mobile-signal-boosters.shop...
