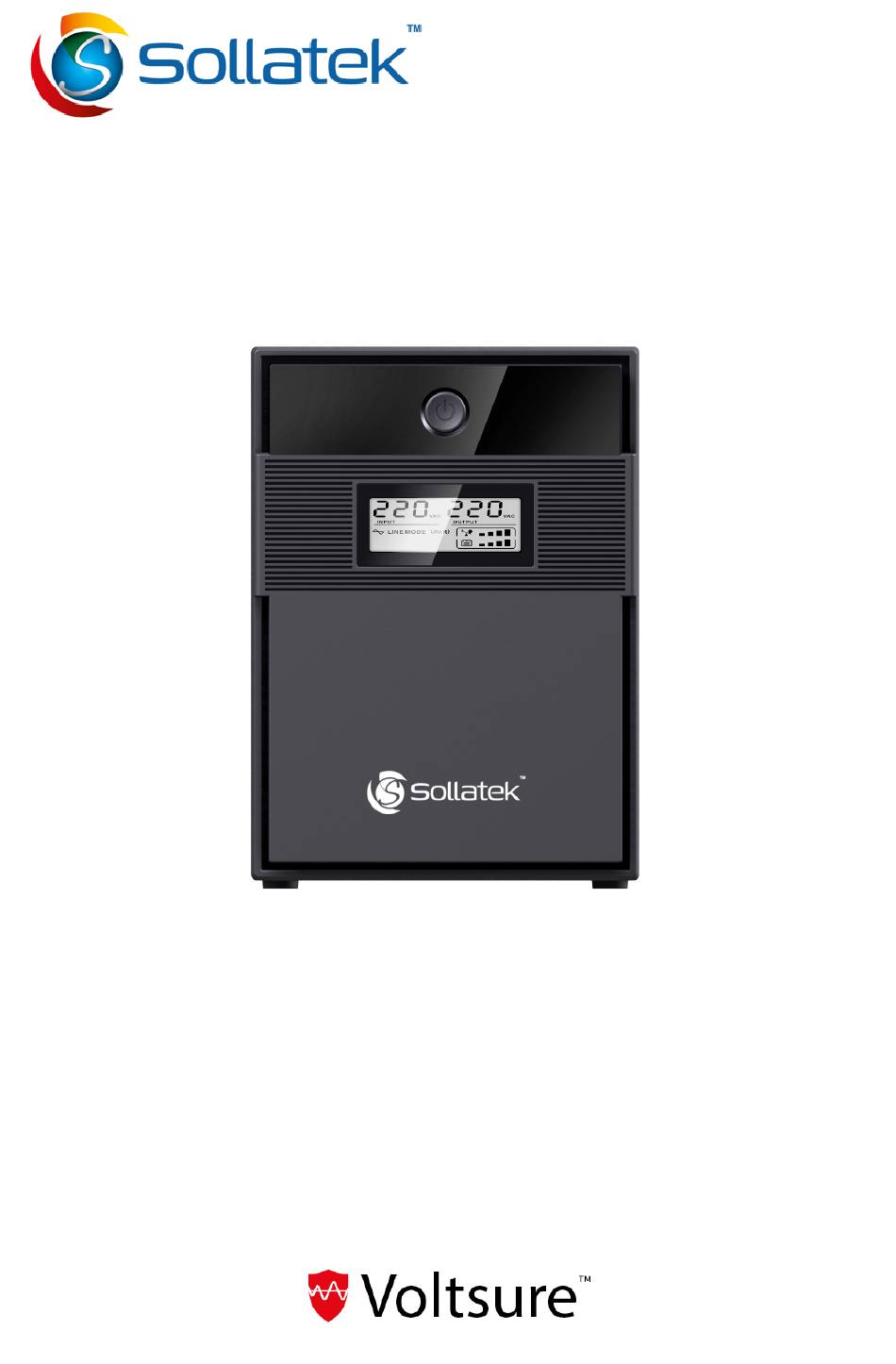

- Page 1 User Manual Ultima S Series 650/850/1200/1500/2200 Uninterruptible Power Supply (UPS)
- Page 2 IMPORTANT SAFETY INSTRUCTION READ BEFORE INSTALLING Safety of persons: The UPS has its own internal power source (the battery). Consequently, the power outlets Ÿ may be energised even if the UPS is disconnected from the AC-power source. Dangerous voltage levels are present within the UPS. It should be opened exclusively by Ÿ...
- Page 3 Product safety (continued): If the UPS is stored prior to installation, storage must be in a dry place. Ÿ The admissible storage temperature range is -10 to +40 . Ÿ This UPS can be used in TN power system. Ÿ UPS enclosure IP rating IP20 Ÿ...
-
Page 4: Description Of Features
1. Introduction The UPS is an intelligent and compact line interactive UPS (Uninterruptible Power Supply) which is designed to protect your personal computer or sensitive electronic equipment from all forms of power interference, including complete power failures. It is equipped with many features that allow any attached equipment to operate longer and more reliably. - Page 5 Display When in normal mode, it will display as When LCD starts to work, it will display all below. information for 3 seconds. INPUT BATTERY OUTPUT LOAD FA ULT INPUT OUTPUT L I N E M O D E L I N E M O D E B A C K U PM O D E When in AVR mode, it will display as below.
- Page 6 Battery capacity definition: 1B model battery definition: Indicator Battery charge status <20% <40% <60% <80% ≥80% When overloaded, the icon will flicker every 1second. When battery voltage is low, the icon will flicker every 1second.
- Page 7 Back Panel: 1200/1500/2200VA (Schuko) 650/850VA(Schuko) 1200/1500/2200VA (UK) ① AC Input ② Output receptacles ③ RJ11 Modem/phone line protection(650/850VA) RJ45 LAN/Modem/phone line protection(1200/1500/2200VA) ④ USB port ⑤ Breaker...
-
Page 8: Installation And Initial Startup
4. Installation and Initial Startup Remove the UPS from its packaging and inspect it for damage that may have occurred during shipping. If any damage is discovered, repack the unit and return it to the place of purchase. Charging This unit is shipped from the factory with its internal battery fully charged, however, some charge may be lost during shipping and the battery should be recharged prior to use. - Page 9 Connect the Loads Plug the UPS into a 2-pole, 3-wire grounded receptacle. Then connect one computer-related device into each of the power receptacles supplied on the back of the UPS. Do not attach a power strip or surge suppressor or laser printer / scanner to the UPS. Connect LAN cable, Modem or Phone line for Surge Protection Connect a single modem or phone line into surge-protected “IN”...
-
Page 10: Software Installation On Your Pc
If any abnormal situations occur that are not listed above, please call service people immediately. 7. Battery Replacement In the event that you need to replace the battery, please contact us at sales@sollatek.com for detailed instructions or call your local Sollatek distributor for assistance. -
Page 11: Specification
8. Specification MODEL 650VA 850VA 1200VA 1500VA 2200VA CAPACITY 650VA/360W 850VA/480W 1200VA/600W 1500VA/900W 2200VA/1200W INPUT Voltage 220 VAC Voltage Range 162~268 VAC OUTPUT Nominal Voltage 220Vac Voltage Regulation +/-10% (Battery mode) Frequency Range 50/60Hz Frequency Regulation ±1Hz (Battery mode) Transfer Time Typical 2-6ms Typical 4-8ms Waveform... - Page 12 Product Code Product Description 97602065-EU ULTIMA UPS650s 220V 650VA LCD EURO 97602085-EU ULTIMA UPS850 220V 850VA LCD EURO ULTIMA UPS650s 220V 650VA LCD IEC 97602065-IEC 97602085-IEC ULTIMA UPS850 220V 850VA LCD LEC 97602122-EU ULTIMA UPS1.2Ks 220V 1.2kVA LCD EURO 97602122-UK ULTIMA UPS1.2Ks 220V 1.2kVA LCD UK 97602152-EU ULTIMA UPS1.5Ks 220V 1.5kVA LCD EURO...
- Page 13 MJA | 20/11/2024 Ultima S Series 650 to 2200 VA User Manual Nov 2024 v2 A/I: 10910984 SOLLATEK (UK) LIMITED Sollatek House, Waterside Drive, Langley, Slough SL3 6EZ, United Kingdom Tel: +44 (1753) 214 500 Email: sales@sollatek.com Web: www.sollatek.com...
