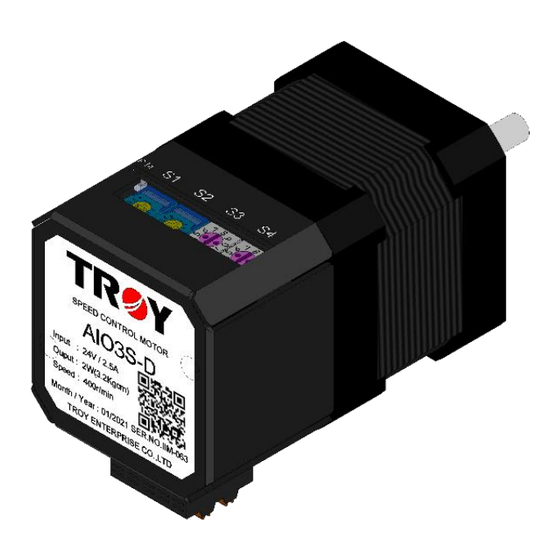

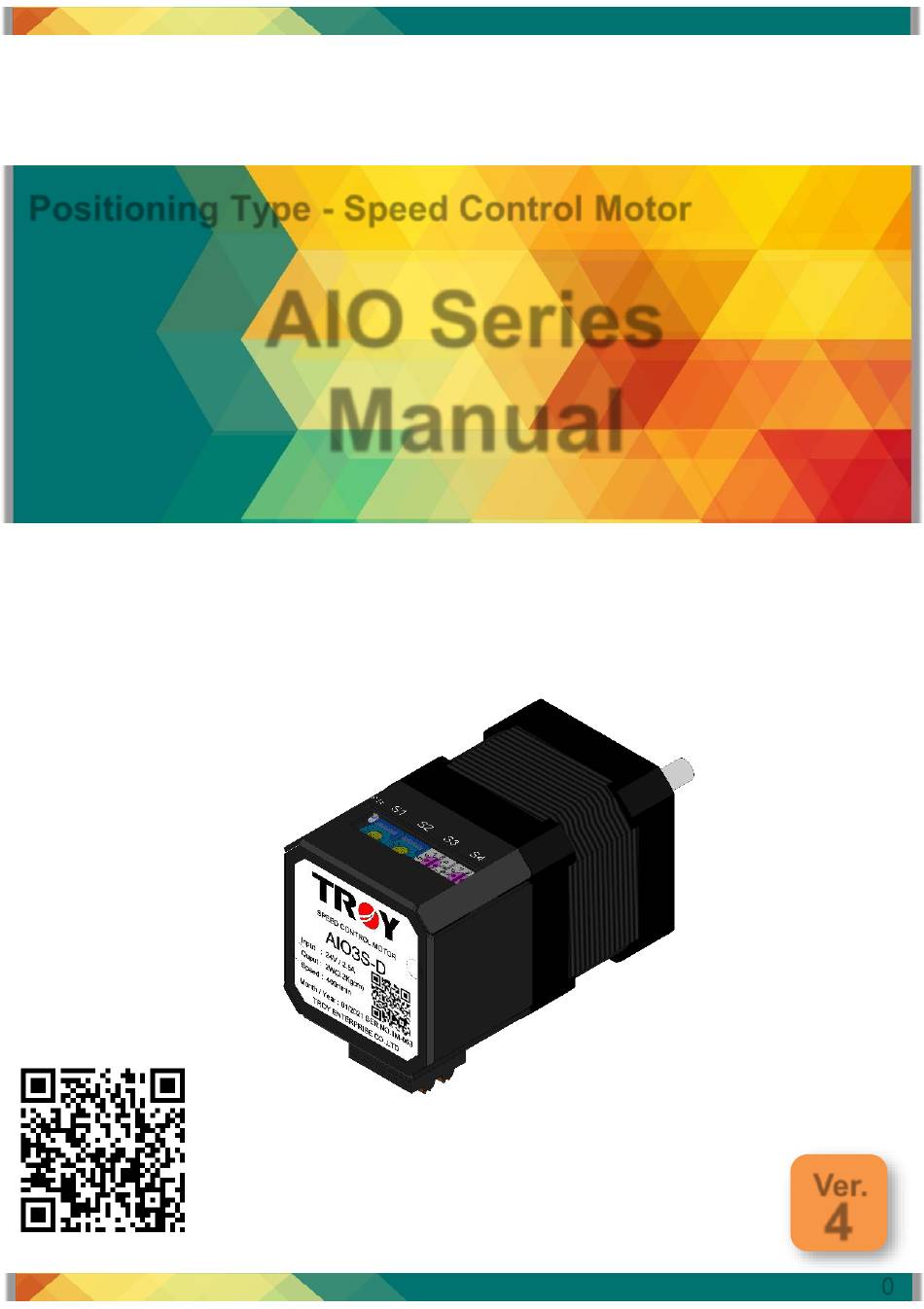

- Page 1 AIO-LP-V04E Positioning Type - Speed Control Motor AIO Series Manual Ver. ※Online View...
-
Page 2: Table Of Contents
3 Dimensions 3-1 Dimensions — AIO Series 3-2 Dimensions — DBVR 4 Functional Descriptions of Each Part 4-1 AIO Series — Front Panel Function Descriptions 4-2 AIO Series — Rear Panel Function Descriptions 5 Wiring 5-1 Input/Output Contact Interface Circuit 5-2 Input/Output, Ext-VR Wiring 5-3 Wiring Example —... -
Page 3: Precaution - Your Attention Is Our Intention
Should you have any questions in the manual, please do not hesitated to contact our service crew in each region. ◼ Package Contents： Appearance Quantity AIO Series Motor Plug-In Connector The following items are available for purchase separately Appearance... -
Page 4: Specifications
Specifications... -
Page 5: Specifications
Specifications Power Output 15 W 10 W Motor Round Shaft Type AIO3S-D AIO5S-D AIO10S-D AIO15S-D Rated DC24 ±10% Voltage Max. Current Rated Current Max Torque 0.31 0.45 0.65 Rated Torque 0.25 0.33 Permissible kgcm Inertia Load Rated Speed r/min Max. Speed r/min Speed Control r/min... - Page 6 Specifications Dustproof / Protection level Motor：IP20 Waterproof Protection Power Entry Power Input Mechanism Reverse Connection Protection 1.The torque, speed and allowable inertia values in the specification are the actual values when the motor is not equipped with a gearbox. 2. Allowable Inertia：The allowable value of a round shaft type motor. Please note Note the relation GD =4J when selecting the calculation.
-
Page 7: Characteristic Curves
Characteristic Curves ◼ AIO3S-D Characteristic Curves 0.31 0.25 High Torque Continuous Running Area 0.13 Low Torque Continuous Running Area Speed(r/min) ◼ AIO5S-D Characteristic Curves 0.45 0.33 High Torque Continuous Running Area 低 轉 矩 0.16 連 續 運 Low Torque Continuous 轉... - Page 8 Characteristic Curves ◼ AIO10S-D Characteristic Curves 0.65 High Torque Continuous Running Area 0.25 Low Torque Continuous Running Area Speed(r/min) ◼ AIO15S-D Characteristic Curves Low Torque High Torque Continuous Continuous Running Area Running Area Speed(r/min)
-
Page 9: Dimensions
Dimensions... -
Page 10: Dimensions - Aio Series
Dimensions — AIO Series AIO3S-D Side View Front View AIO5S-D Front View Side View... - Page 11 Dimensions — AIO Series AIO10S-D Side View Front View AIO15S-D Front View Side View...
-
Page 12: Dimensions - Dbvr
Dimensions — DBVR ◼ DBVR (Optional Items) AIO Series Dedicated Name：DBVR... -
Page 13: Functional Descriptions Of Each Part
Functional Descriptions of Each Part... -
Page 14: Aio Series - Front Panel Function Descriptions
AIO Series — Front Panel Function Descriptions Terminal Function Description P ： Power Light (Green) M ： M.READY Light (Orange). Signal Display When the light is on, the motor positioning is completed and stay stationary. Internal Speed Setting : 5~400RPM Inner Speed (Initial Value：Min. -
Page 15: Aio Series - Rear Panel Function Descriptions
AIO Series — Rear Panel Function Descriptions Function Description LOW State I/O Type +24V Input 0V Input Motor Start Running Motor Running Direction Switching SPEED2 Two-Speed Mode Switching External MODE Speed/Position Mode Switching Position Mode Position M.READY Motor Position is Completed... -
Page 16: Wiring
Wiring... -
Page 17: Input/Output Contact Interface Circuit
Input / Output Contact Interface Circuit ◼ Input Interface Wiring MOTOR DRIVER CONTROLLER MODE Photo Coupler -COM -COM ◼ Output Interface Wiring MOTOR DRIVER CONTROLLER M.Ready -COM Photo Coupler -COM... -
Page 18: Input/Output, Ext-Vr Wiring
A screwdriver is inserted into the latch (Orange), the wire is inserted Locking through the round hole, then the latch is released and the wire is clamped tightly. AIO Series Special Accessories (Optional) Ext-VR Speed Setter VR with Signal Shielded Wire DBVR... -
Page 19: Wiring Example - Running Test - Speed Mode
Wiring Example — Running Test - Speed Mode ◼ Speed Mode Wiring +24V AC110~220V ◼ Speed Mode Testing Steps Prepare Items AIO3S-D 1pcs Power Supply 1pcs Switch 1pcs STEP1—Wiring ✓ +24V to CN1 Pin 1 ✓ 0V to CN1 Pin 2 ✓... -
Page 20: Wiring Example - Running Test - Positioning Mode
Wiring Example — Running Test - Positioning Mode ◼ Positioning Mode Wiring +24V AC110~220V ◼ Positioning Mode Testing Steps Prepare Items AIO3S-D 1pcs Power Supply 1pcs Switch 1pcs STEP_1—Wiring ✓ +24V to CN1 ✓ Switch to CN1 Pin 1 Pin3, 10 ✓... -
Page 21: Wiring Precautions
Wiring Precautions ※Important Wiring Precautions ● The input/output signal line should be a signal isolated line covered by a metal mesh. The metal mesh should be one-sided grounded at the common point. When wiring, please separate the power line and the motor line by a distance of more than 10cm. - Page 22 Wiring Precautions ※詳細的產品選用洽詢本公司各地區的營業所或經銷商。 ！ Danger ※Th “v y k y ju y, ” Be sure to install an over current protection device, To prevent electric shocks, accidental a leakage circuit breaker, an over temperature injuries, fire. prevention device, an emergency stop device, etc. ’...
- Page 23 Wiring Precautions Warning ※ May cause injury or only damage to items. For trial operation, please fix the motor, and assemble the machine after confirming the operation under the To prevent accidental injuries. circumstances that the machinery is isolated. ’ May cause burns.
- Page 24 For detailed product selection, please contact our distributors in various regions. ※ Responsibility for Environmental Protection ※ Our company is committed to the promotion of environmental protection, all packaging materials used can be recycled and resources reused. When the product has been used for a period of time and needs to be replaced, please follow the waste disposal procedures to sort and recycle the resources.
