RADLEY Oregon 5240-058 Owner's Manual

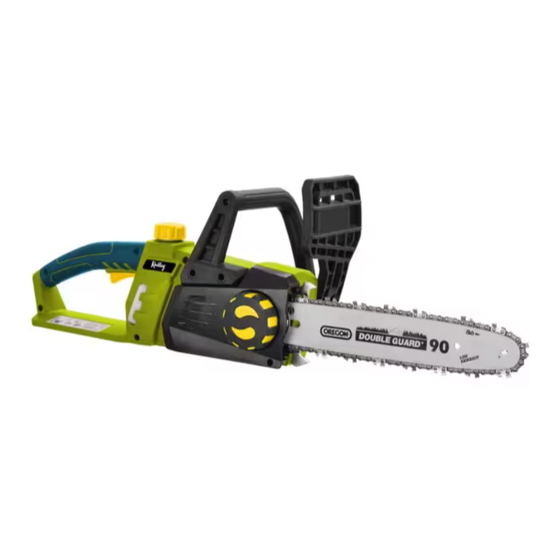

20v max brushless 12" chainsaw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
READ ALL INSTRUCTIONS BEFORE FIRST USE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
KEEP AWAY FROM CHILDREN.
* Maximum initial battery voltage (measured without a workload)
800874
is 20 volts. Nominal voltage is 18v.
GY219151
WEAR CSA APPROVED
EYE PROTECTION
WEAR EAR
PROTECTION
WEAR A
FACE MASK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Oregon 5240-058 and is the answer not in the manual?

Questions and answers

Related Manuals for RADLEY Oregon 5240-058

Summary of Contents for RADLEY Oregon 5240-058

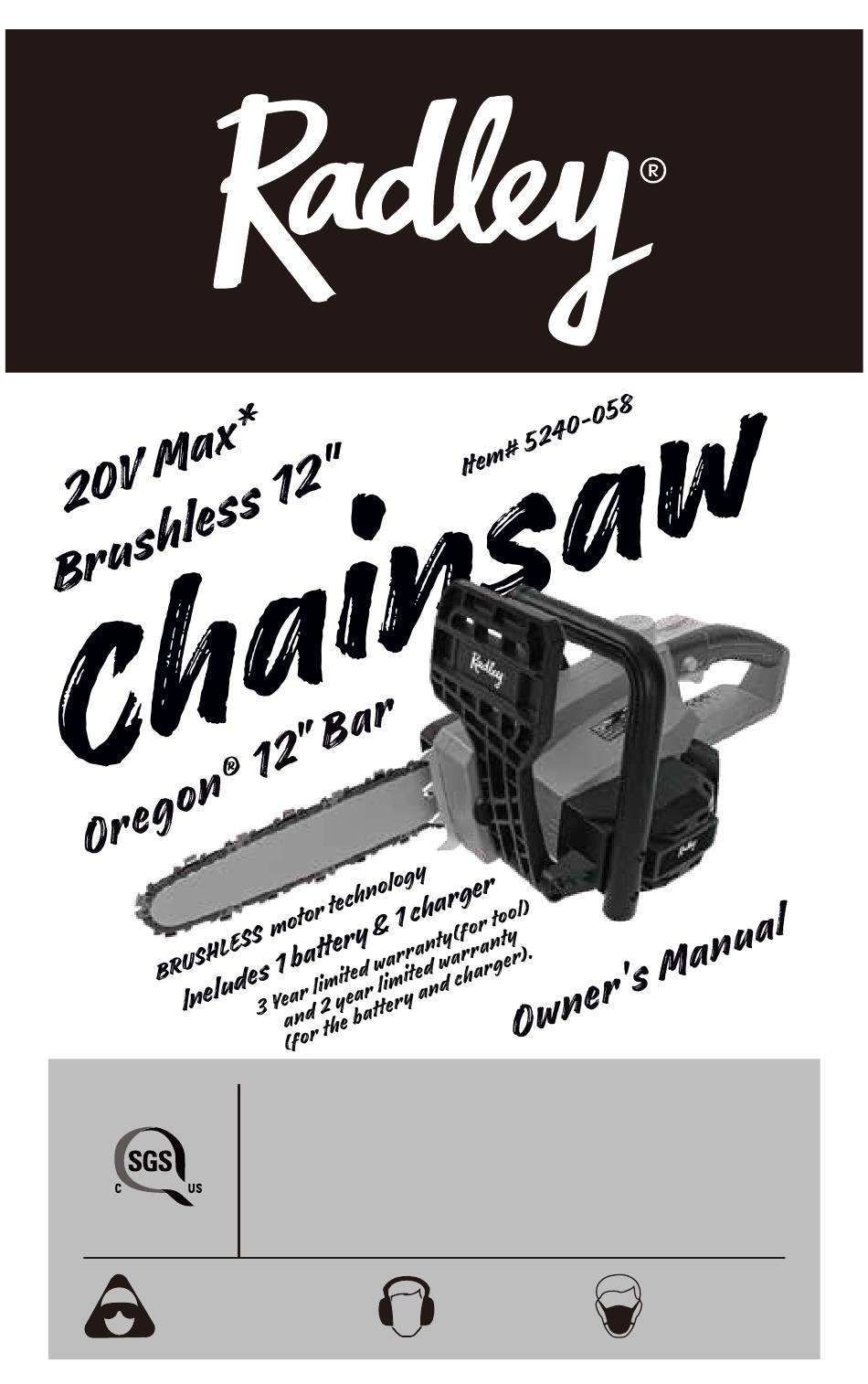

  • Page 1 READ ALL INSTRUCTIONS BEFORE FIRST USE. KEEP THIS MANUAL FOR FUTURE REFERENCE. KEEP AWAY FROM CHILDREN. * Maximum initial battery voltage (measured without a workload) 800874 is 20 volts. Nominal voltage is 18v. GY219151 WEAR CSA APPROVED WEAR EAR WEAR A EYE PROTECTION PROTECTION FACE MASK...

  • Page 2: Product Specifications

    20V MAX BRUSHLESS CHAINSAW - Owner’s Manual PRODUCT SPECIFICATIONS BRUSHLESS CHAINSAW Voltage 20V (No load) Chain Speed 8 m/s (No load) Bar Length 12” (305 mm) Max Cutting Width 10" (254 mm) Drive Links Chain Pitch 3/8 " (9.5 mm) Chain Gauge 0.043"...

  • Page 3: Table Of Contents

    5240-058 TABLE OF CONTENTS Table of contents......................General safety warnings....................Electrical gardening tool safety..................Chainsaw use and care....................Service..........................Chainsaw specific safety rules ..................8-11 Battery pack & charger safety ..................11-15 Symbols..........................Know your brushless chainsaw..................Checking the battery charge status................18-19 Assembly and operating....................

  • Page 4: General Safety Warnings

    20V MAX BRUSHLESS CHAINSAW - Owner’s Manual GENERAL SAFETY WARNINGS WARNING: Do not use on wet materials. WARNING: Disconnect the battery before cleaning or changing accessories. WARNING To avoid serious personal injury, do not attempt to use this product until you have read this instruction manual thoroughly and understand it completely.
  • Page 5 5240-058 SYMBOL MEANING Failure to obey a NOTICE or a CAUTION (without a safety alert) MAY result in property damage to you or to others. Always obey all messages following this symbol to reduce the risk of property damage. ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH CSA Z94.3 or ANSI SAFETY STANDARD Z87.1 FLYING DEBRIS can cause permanent eye damage.

  • Page 6: Electrical Gardening Tool Safety

    20V MAX BRUSHLESS CHAINSAW - Owner’s Manual SYMBOL MEANING To avoid electrical hazards, fire hazards or damage to the tool, use proper circuit protection. This battery charger is wired at the factory for 120V AC operations. It must be connected to a 120V AC,15A circuit that is protected by a time-delayed fuse or circuit breaker.

  • Page 7: Personal Safety

    5240-058 Avoid body contact with earthed or grounded surfaces such as water pipes. There is an increased risk of electrical shock if your body is earthed or grounded. Do not expose power tools, battery chargers or batteries to rain or wet conditions.

  • Page 8: Chainsaw Use And Care

    20V MAX BRUSHLESS CHAINSAW - Owner’s Manual If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. CHAINSAW USE AND CARE Do not force the chainsaw. Use the correct chainsaw for your application. •...

  • Page 9: Chainsaw Specific Safety Rules

    5240-058 CHAINSAW SPECIFIC SAFETY RULES Keep all parts of the body away from the saw chain when the chainsaw is • operating. Before you start the chainsaw, make sure the saw chain is not contacting anything. A moment of inattention while operating chainsaws may cause entanglement of your clothing or body with the saw chain.
  • Page 10 20V MAX BRUSHLESS CHAINSAW - Owner’s Manual likelihood of accidental contact with the moving saw chain. Always use two hands when operating the chainsaw. • Contact of the guide bar tip with any object must be avoided. • Tip contact may cause the guide bar to move suddenly upward and •...

  • Page 11: Causes And Operator Prevention Of Kickback

    5240-058 Use of the chainsaw for operations different from those intended could result in a hazardous situation. CAUSES AND OPERATOR PREVENTION OF KICKBACK WARNING: Kickback may occur when the moving chain contacts an object at the upper portion of the tip of the guide bar or when the wood closes in and pinches the saw chain in the cut.

  • Page 12: Vibration And Noise Reduction

    20V MAX BRUSHLESS CHAINSAW - Owner’s Manual VIBRATION AND NOISE REDUCTION To reduce the influence of vibration and noise, limit working hours and wear personal protective equipment. Observe the following points to minimize vibration and noise exposure: 1. Use the product only in accordance with its design and instructions. 2.
  • Page 13 fire, electric shock, or electrocution. The user bears sole responsibility for any damage caused by inappropriate use. e) The charger is specifically designed to charge 20V Max Radley battery packs. Do not attempt to charge any other battery with this charger.

  • Page 14: Disposal Of The Exhausted Battery

    20V MAX BRUSHLESS CHAINSAW - Owner’s Manual m) The charger is designed to operate on standard household electrical power. Do not attempt to use it on any other voltage. n) Unplug the charger immediately if there is any sign of smoke or flame. o) Do not drill into the housing of the charger or battery pack.

  • Page 15: Recycling And Disposal

    5240-058 6. TIPS FOR MAINTAINING MAXIMUM BATTERY LIFE a) Charge the battery pack before completely discharged. Always stop tool operation and charge the battery pack when you notice a decrease in tool power. b) Charge the battery pack between 41-105° F (5-40.5° C). Let a hot battery pack cool down before charging it.

  • Page 16: Battery Pack Recycling

    20V MAX BRUSHLESS CHAINSAW - Owner’s Manual BATTERY PACK RECYCLING To preserve our natural resources, please recycle or dispose of batteries properly. The batteries charged by this charger may contain chemicals and metals that are harmful to the environment. Never dispose of rechargeable batteries in your normal household garbage or in landfill sites as they will add to the pollution of the environment.

  • Page 17: Symbols

    5240-058 SAFETY SYMBOLS Read the user manual before using the machine. Whenever the tool is in use, Do not expose to rain. safety goggles must be worn objects. Ear protectors, such Wear safety boots to protect as a sound proof helmet must against electric shock.

  • Page 18: Know Your Brushless Chainsaw

    20V MAX BRUSHLESS CHAINSAW - Owner’s Manual KNOW YOUR 20V 12" BRUSHLESS CHAINSAW Chain oil reservoir cap Steel bucking spike On/Off Saw chain switch Guide bar Chain oil Sprocket reservoir Locking and chain cover tensioning knob Front handle Lock-out safety button Hand guard/ Chain brake handle Rear handle...

  • Page 19: Checking The Battery Charge Status

    5240-058 The level of charge remaining in the battery can be checked by using the battery LED power indicator that is contained on the end of the battery. The battery charge remaining may be checked while the battery is installed in the tool with the ON/OFF switch turned OFF. It may also be checked while the battery is removed from the tool.

  • Page 20: Assembly And Operating

    20V MAX BRUSHLESS CHAINSAW - Owner’s Manual Battery Inserted Green Charging Into Light Light Status Charger Charger connected to power supply. Battery being charged. Battery fully charged. Battery is charged but not operational on tool. This may indicate defective / bad contact on battery or charging conditions are either too hot or...
  • Page 21 5240-058 WARNING: Always wear protective gloves when working with the chainsaw and employ only original parts. Remove the battery before doing any work on the chainsaw itself- injury hazard! Before putting the electric chainsaw into operation, you must: 1. Adjust the saw chain tension. 2.
  • Page 22 20V MAX BRUSHLESS CHAINSAW - Owner’s Manual Fig.6a Fig.6b Fig.7a Fig.7b WARNING: Do not tighten the locking and chain tensioning knob until the chain tension has been adjusted. WARNING: Before installing the bar onto the tool, ensure that all the chain teeth lie in the groove along the edge of the edge of the bar.
  • Page 23 5240-058 To check the tension, pluck the chain anywhere halfway along the bar. The clearance between the underside of the chain and the bar should be 1/8"-5/32" (3-4mm) (Fig. 9). If it requires adjusting, turn the locking /tensioning knob counterclockwise one turn to loosen it, then, slowly turn it clockwise until you hear click (Fig.

  • Page 24: Working With The Chainsaw

    20V MAX BRUSHLESS CHAINSAW - Owner’s Manual FILLING RESERVOIR WITH CHAIN OIL Place the saw on a level surface. Clean the area around the chain oil reservoir cap. Chain saw oil is recommended as a lubricant. To prevent blocking the chain oil feeding tip, this operation requires extreme care to prevent the ingress of dirt of any kind.

  • Page 25: Protective Clothing

    5240-058 6. PROTECTIVE CLOTHING lt is essential that you wear the appropriate, tight-fitting protective clothing such as cut-resistant trousers. 7. HEARING PROTECTION AND SAFETY GLASSES Wear a protective helmet with integrated hearing and face protection during felling and forest work.This provides protection from falling branches. WARNING: Switch on the chainsaw only when guide bar, saw chain and sprocket cover are correctly assembled.

  • Page 26: General Use

    20V MAX BRUSHLESS CHAINSAW - Owner’s Manual WARNING: Do not use the chainsaw if the brake does not function proper- ly. Do not attempt to repair. Contact customer service @ 1-866-349-8665 or a qualified repair service. Fig.10 GENERAL USE 1. Cutting down a tree (Fig. 11-14) lf two or more persons cut and fell at the same time, the distance between the cutting and cutting persons should be at...
  • Page 27 5240-058 2. Set notch cut (Fig. 14a) Saw a notch (A) at right angles to the direction of fall with a depth of 1/3 of the tree diameter, as shown in (Fig.14a). First make the bottom horizontal notch (A).This will avoid jamming the saw chain or guide bar when setting the second notch.
  • Page 28 20V MAX BRUSHLESS CHAINSAW - Owner’s Manual Fig.15 Fig.16 Fig.17 Fig.18 When sawing on slopes, always stand above the tree trunk, as shown in (Fig.12). To maintain full control at the moment of sawing, reduce the contact pressure towards the end of the cut without loosening the firm grip on the handles of the chainsaw.
  • Page 29 5240-058 7. Sawing of wood under tension Sawing wood that is under tension requires special care! Wood under tension, which is released from tension by sawing, sometimes reacts completely uncontrolled. This can lead to serious or even fatal injuries (Fig. 21-23). Such work may only be carried out by trained specialists.

  • Page 30: Maintenance

    20V MAX BRUSHLESS CHAINSAW - Owner’s Manual 1. Replace saw chain and guide bar The guide bar must be replaced when the guide groove of the guide bar is worn out. The spur gear on the bar is damaged or worn. a) Checking the automatic chain lubrication.

  • Page 31: Exploded View

    5240-058 EXPLODED VIEW...

  • Page 32: Parts List

    20V MAX BRUSHLESS CHAINSAW - Owner’s Manual PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the saw. Any attempt to repair or replace electrical parts on this chainsaw may create a safety hazard unless repairs are performed by a qualified technician.
  • Page 33 5240-058 Key # Part # Part Name Quantity 3298000201053001 Regulating plate 104MLEA041 Rivet 3240100101009001 90PX040X Chain 3114100301023001 Chain plate sheath Axle clamp plate 3251100201053001 3422710101032001 Microswitch 33SJAQA004160101 Screw Block 3196000101072001 Screw 33AQABA004160102 3214100301072001 Brake block 3121910101001001 Left housing Front finger guard 3121910101053001 3121910101094001 Front handle...
  • Page 34 20V MAX BRUSHLESS CHAINSAW - Owner’s Manual Key # Part # Part Name Quantity Flat key 3314100101077001 Output shaft 3240100101020001 33DB600002011 Bearing Right housing 3121910101002001 Screw 33SQABA004120101 232219101001 Oil pump components 68-1 3290000301052001 Oil pump core Oil pump humper 68-2 3290000301052001 68-3 3294000501138001...

  • Page 35: Warranty

    WARRANTY RADLEY 2OV MAX BRUSHLESS CHAINSAW WARRANTY If this Radley tool fails due to a defect in material or workmanship within three years from the date of purchase, return it to any Home Hardware store with the original bill of sale for exchange. Two years for battery and charger.
  • Page 36 EXCLUSIVE TO HOME HARDWARE For information on the entire line up of Radley power tools visit homehardware.ca or your local Home Hardware retail store MADE IN CHINA /FABRIOUE EN CHINE HOME HARDWARE STORES LIMITED ST.JACOBS,ONTARIO NOB 2NO ORDER ONLNE/COMMANDE EN LGNE homehardware.ca...
