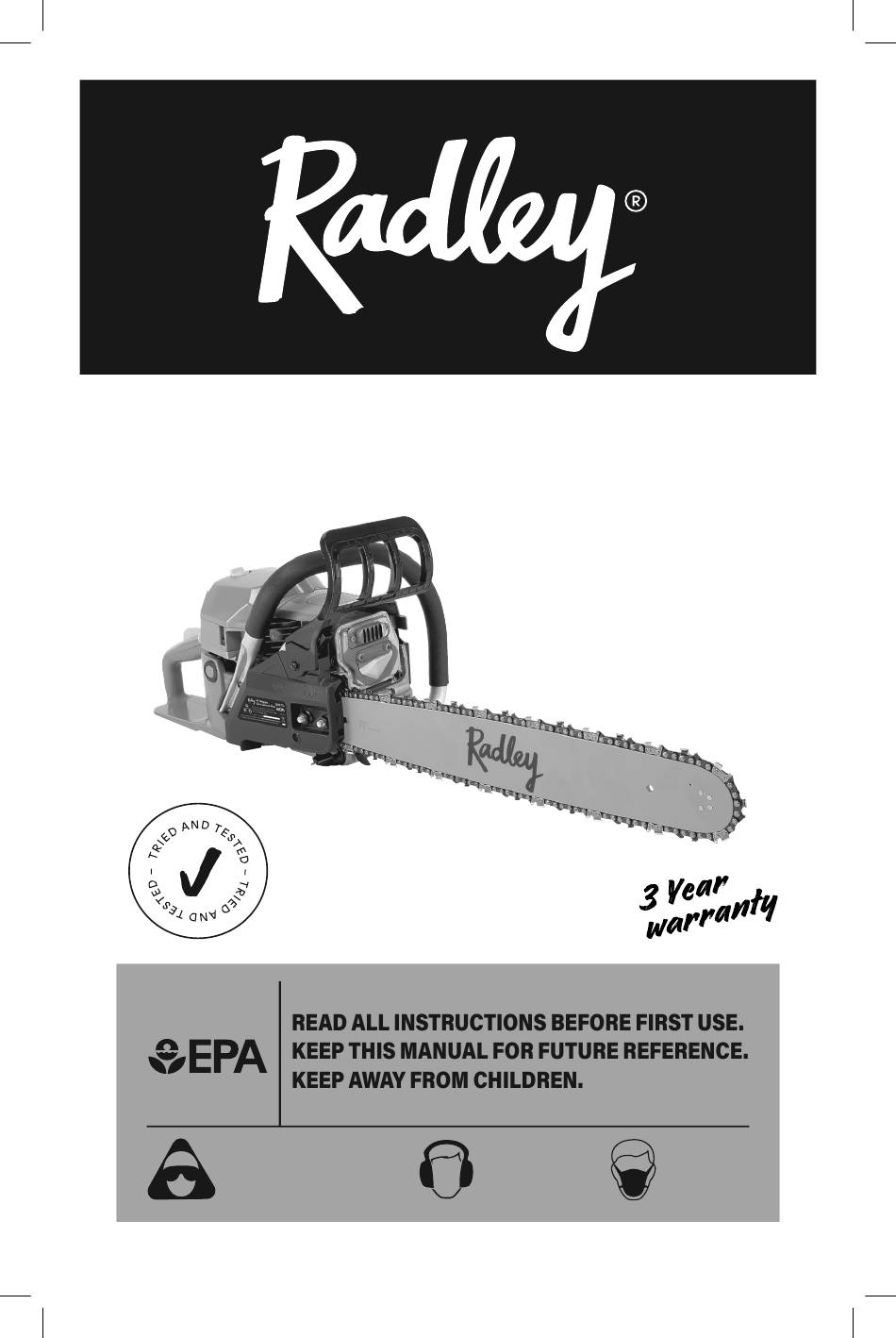

20" 52CC CHAINSAW
OWNER'S MANUAL
3 Year Limited Warranty on tool
WEAR CSA APPROVED
EYE PROTECTION
WEAR EAR
PROTECTION
WEAR FACE
PROTECTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YFG52-H and is the answer not in the manual?

Questions and answers

Ben
March 24, 2025

What tool do I need to adjust fuel mixture On my 52cc Radley chainsaw??

1 comments:
Mr. Anderson
March 24, 2025

A flat mouth screwdriver is needed to adjust the fuel mixture on a 52cc Radley chainsaw.

This answer is automatically generated

sonya
July 9, 2025

tension screw size and part number

Summary of Contents for RADLEY YFG52-H

  • Page 1 20" 52CC CHAINSAW OWNER’S MANUAL 3 Year Limited Warranty on tool WEAR CSA APPROVED WEAR EAR WEAR FACE EYE PROTECTION PROTECTION PROTECTION...
  • Page 2: Product Specifications

    RADLEY 20" 52CC CHAINSAW Displacement cc/cm3 Max. Output (kW /RPM) 2.0 / 8500 Fuel Gas to oil (two cycle) 50:1 Fuel tank capacity 18 ozs. / 530 ml Chain oil Motor oil Oil tank capacity 8½ ozs. / 250 ml...
  • Page 3: Table Of Contents

    5240-174 20" 52CC CHAINSAW TABLE OF CONTENTS Product Specifications ......................1 Table of Contents ........................2 General Safety Warnings ....................3-4 Chainsaw Use and Care ..................... 4-5 Specific Safety Rules ......................5-7 Symbols ..........................8 Know Your 20"Chainsaw ...................... 9 Handling Fuel ........................10 Operation ..........................
  • Page 4: General Safety Warnings

    IMPORTANT! SAFETY INSTRUCTIONS ALL OPERATORS MUST READ THESE INSTRUCTIONS BEFORE USE Any electrical appliance can be dangerous if used incorrectly. Some of the safety precautions given in this manual apply generally to many appliances. Other warnings are specific to the use of this chainsaw. Always follow these safety guidelines. Failure to do so may result in serious bodily injury or death.
  • Page 5: Chainsaw Use And Care

    5240-174 20" 52CC CHAINSAW 8. Toxic exhaust fumes - The unit produces toxic exhaust fumes when the engine is running. These gases (carbon monoxide) may be colourless and odourless. To reduce the risk of serious or fatal injury from breathing toxic fumes, never run the unit indoors or in poorly ventilated locations.
  • Page 6: Specific Safety Rules

    chainsaw for operations different from those intended could result in a hazardous situation. Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will make exposed metal parts of the tool "live"...
  • Page 7 5240-174 20" 52CC CHAINSAW ALWAYS USE TWO HANDS WHEN OPERATING THE CHAINSAW Contact of the guide bar tip with any object should be avoided. Tip contact may cause the guide bar to move suddenly upward and backward, which may cause serious injury. Follow instructions for lubricating, chain tensioning and changing accessories.
  • Page 8 ATTENTION! It is recommended that first time user should practice cutting logs on a sawhorse or frame. VIBRATION AND NOISE REDUCTION To reduce the influence of vibration and noise, limit working hours and wear personal protective equipment. Observe the following points to minimize vibration and noise exposure: 1.
  • Page 9: Symbols

    5240-174 20" 52CC CHAINSAW SYMBOLS Read the user manual before Warning! Danger! Note! using the machine. Whenever the tool is in use, Do not expose to rain. safety goggles must be worn to safeguard against flying Wear safety boots to protect objects.
  • Page 10: Know Your 20"Chainsaw

    KNOW YOUR 20" 52CC CHAINSAW Saw Chain Guide Bar Starter Handle Choke Knob Stop Switch Rear Handle Chain Oil Tank Fuel Tank Starter Cylinder Front Handle Cover Front Guard Handle Primer Bulb Throttle Lockout Muffler Bumper Spike Chain Cover Locking Nut Chain Throttle Lever Tensioning...
  • Page 11: Handling Fuel

    5240-174 20" 52CC CHAINSAW HANDLING FUEL WARNING! The engine of this product is designed to run with mixed fuel which contains highly flammable gasoline. Never store cans of fuel or refill the fuel tank in any place where there is a boiler, stove, wood fire, electrical sparks, welding sparks, or any other source of heat or fire which might ignite the fuel.
  • Page 12: Installing Guide Bar And Saw Chain

    INSTALLING GUIDE BAR AND SAW CHAIN A standard saw unit package contains the following items (Figure 1): 1. Power unit 2. Chain bar cover 3. Guide bar 4. Saw chain 5. Combination wrench 6. Hex key Install the guide bar and the chain on the Figure 1 power unit (Figure 2): Loosen the nuts and remove the chain cover.
  • Page 13: Fuel And Oil

    5240-174 20" 52CC CHAINSAW FUEL AND OIL WARNING! Gasoline is very flammable. Avoid smoking or flames near fuel. Make sure to stop the engine and allow it to cool before refueling the unit. Fuel up on outdoor bare ground and move at least 10' / 3m away from the fueling point before starting the engine.
  • Page 14 GAS-LITER TWO-STROKE OIL· LITER ( 2% / 1:50) 0.02 0.04 0.06 0.08 MIXING Always mix the gasoline and oil in a clean container intended for fuel. Always start by filling half the amount of the gasoline to be used. Then add the entire amount of oil.
  • Page 15: Operating The Engine

    5240-174 20" 52CC CHAINSAW OPERATING THE ENGINE STARTING THE ENGINE Fill fuel and chain oil tanks and tighten the caps securely (Figure 5). COLD ENGINE START Move the front hand guard fully rearward (A) (towards the front handle) to unlock chain brake, listen for audible click as sign chain brake is unlocked.
  • Page 16: Checking Oil Supply

    CHECKING OIL SUPPLY After starting the engine, run the chain at medium speed and see if chain oil scatters as shown (Figure 11). Tighten cap if necessary. 1. Chain oil (Figure 11). 2. Chain oil port (Figure 12). ADJUSTING THE CARBURETOR Figure 11 The carburetor on your unit has been adjusted by the factory, but may require fine tuning due to changes in...
  • Page 17: Chain Brake

    5240-174 20" 52CC CHAINSAW CHAIN BRAKE To release the brake, pull the front guard up toward the front handle till "click" sound is heard (Figure 14). 1. Break 2. Released 3. Operated STOPPING THE ENGINE Figure 14 1. Release the throttle lever to allow the engine to idle for a few minutes.
  • Page 18: Cutting A Tree

    CUTTING A TREE Decide the direction you want the tree to fall. Consider the wind, lean of the tree, location of heavy branches, ease of job after the tree falls, etc. Fall Direction While cleaning the area around the tree, arrange a good foothold and retreat path.
  • Page 19: Maintenance

    5240-174 20" 52CC CHAINSAW MAINTENANCE WARNING! Before cleaning, inspecting or repairing your unit, make sure that engine has stopped and is cool. Disconnect the spark plug to prevent accidental starting. MAINTENANCE AFTER EACH USE AIR FILTER To clean dirt in the filter, split the cleaner into halves and brush in gasoline .
  • Page 20 PERIODIC MAINTENANCE CYLINDER FINS Dust clogging between the cylinder fins will cause overheating of the engine. Periodically check and clean the cylinder fins after removing the air cleaner and the cylinder cover. NOTE: Be sure to block the air intake hole (Figure 26). Figure 26 FUEL FILTER Using a wire hook, take out the filter from the filler...
  • Page 21 5240-174 20" 52CC CHAINSAW MAINTENANCE OF SAW CHAIN AND GUIDE BAR SAW CHAIN WARNING! It is very important for smooth and safe operation to keep the chain sharp. Your chain needs to be sharpened when: • Sawdust becomes powder-like. • You need extra force to saw. •...
  • Page 22: Troubleshooting

    TROUBLESHOOTING 1. STARTING FAILURE PROBLEM POSSIBLE CAUSE SOLUTION Check fuel for water or Replace with proper fuel. substandard mixture. Remove and dry the spark Check for engine flooding. plug. Then pull the starter Starting failure. again without the choke. Check the spark plug. Replace with a new spark plug.
  • Page 23: Exploded View

    5240-174 20" 52CC CHAINSAW...
  • Page 24: Parts List

    PARTS LIST WARNING! When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the 20" 52cc chainsaw. Any attempt to repair or replace electrical parts on this 20"chainsaw may create a safety hazard unless repairs are performed by a qualified technician.
  • Page 25 5240-174 20" 52CC CHAINSAW Key # Part # Part Name Quantity 1855ZA0030 FOAM 1855ZA0031 OIL PUMP 1855ZA0032 SCREW ASSEMBLY M4*16 1855ZA0033 OUTLET OIL PUMP 1855ZA0034 OIL PUMP COVER 1855ZA0035 SCREW PLUG 1855ZA0036 NEEDLE BEARING 12*15*14 1855ZA0037 CHAIN WHEEL 7T0.325 1855ZA0038 CLUTCH DRUM 1855ZA0039 CLUTCH WASHER...
  • Page 26 Key # Part # Part Name Quantity 1855ZA0066 KEV 3*3.7*10 1855ZA0067 CRANKSHAFT CONNECTING ROD 1855ZA0068 WASHER 1855ZA0069 NEEDLE BEARING 1855ZA0070 PISTON PIN RING 1855ZA0071 PISTON 1855ZA0072 PISTON PIN 1855ZA0073 PISTON RING 1855ZA0074 CYLINDER WASHER 1855ZA0075 CLUTCH WASHER 1855ZA0076 INLET PIPE 1855ZA0077 PAPER BOARD 1855ZA0078...
  • Page 27 5240-174 20" 52CC CHAINSAW Key # Part # Part Name Quantity 1855ZA0102 AIR FILTER ASSEMBLY 1855ZA0103 CARBURETOR CONNECTOR 1855ZA0104 RUBBER WASHER 1855ZA0105 SCREW 1855ZA0106 RUBBER WASHER 1855ZA0107 THROTTLE LEVER 1855ZA0108 RUBBER WASHER 1855ZA0109 CHOKE VALVE WASHER 1855ZA0110 CHOKE VALVE 1855ZA0111 CLIP 1855ZA0112 LEFT HANDLE...
  • Page 28 Key # Part # Part Name Quantity 1855ZA0138 OIL OUTLET PIPE BLACK 1855ZA0139 OIL INLET PIPE BLACK 1855ZA0140 RUBBER WASHER 1855ZA0141 STEEL SLEEVE 1855ZA0142 AIR FILTER 1855ZA0143 PLASTIC WASHER 1855ZA0144 O WASHER 1855ZA0145 HEAT SLEEVE 1855ZA0146 AIR FILTER COVER 1855ZA0147 RUBBER WASHER 1855ZA0148 CLUTCH ASSEMBLY...
  • Page 29: Warranty

    5240-174 20" 52CC CHAINSAW RADLEY 20" 52CC CHAINSAW it has a three-year repair warranty with the original bill of sale.
  • Page 30 © 2021 Home Hardware Stores Limited Made in China 1-833-818-4111 Customer Service/Tech Support This Radley® product carries a three (3) year LIMITED warranty against defects in workmanship and materials. See Owner’s Manual for full details. READ ALL INSTRUCTIONS BEFORE FIRST USE.
