Sealey BT05 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.
Refer to
instruction
manual
1. SAFETY
Ensure that the tester is in good condition before use.
9
If the battery terminals are corroded or dirty clean them before using the tester.
9
Keep children and unauthorised persons away from the work area.
9
DO NOT disassemble the tester for any reason. The tester must only be checked by qualified service personnel.
8
DO NOT in damp, or wet locations and DO NOT use in the vicinity of flammable liquids or gases.
8
DO NOT use the tester for a task for which it is not designed.
8
DO NOT short the terminals of any battery.
8
For different instruments which use battery for power, the required battery charge level may vary. Refer to the instrument's user manual
9
for detailed information.
When not in use, store the tester carefully in a safe, dry, childproof location.
9
2. INTRODUCTION
Easy-to-use, with colour-coded analogue display needle; Good/Green, Low/Yellow,
Replace or Recharge/Red. Tests levels of AAA, AA, C, D, 1.5V, 9V and button type
batteries. Activated by the battery being checked, no additional battery needed for
operation. Lightweight and compact design for easy portability. Not to be used to
test lead acid batteries.
3. SPECIFICATION
Model No:
Nett Weight:
4. APPLICATIONS
4.1. 1.5V: AAA, SH16, MN2400, R03.
4.2. AA, HP7, MN1500, UM3.
4.3. C,HP11, MN1400, SO11, LR14, UM2.
4.4. D, HP2, MN1399, SP2, R20, UM1.
4.5. 9V: PP3, MN1604, 6F22, 006P.
5. OPERATION
5.1. TESTING BATTERIES (AAA, AA, C, D, ETC):

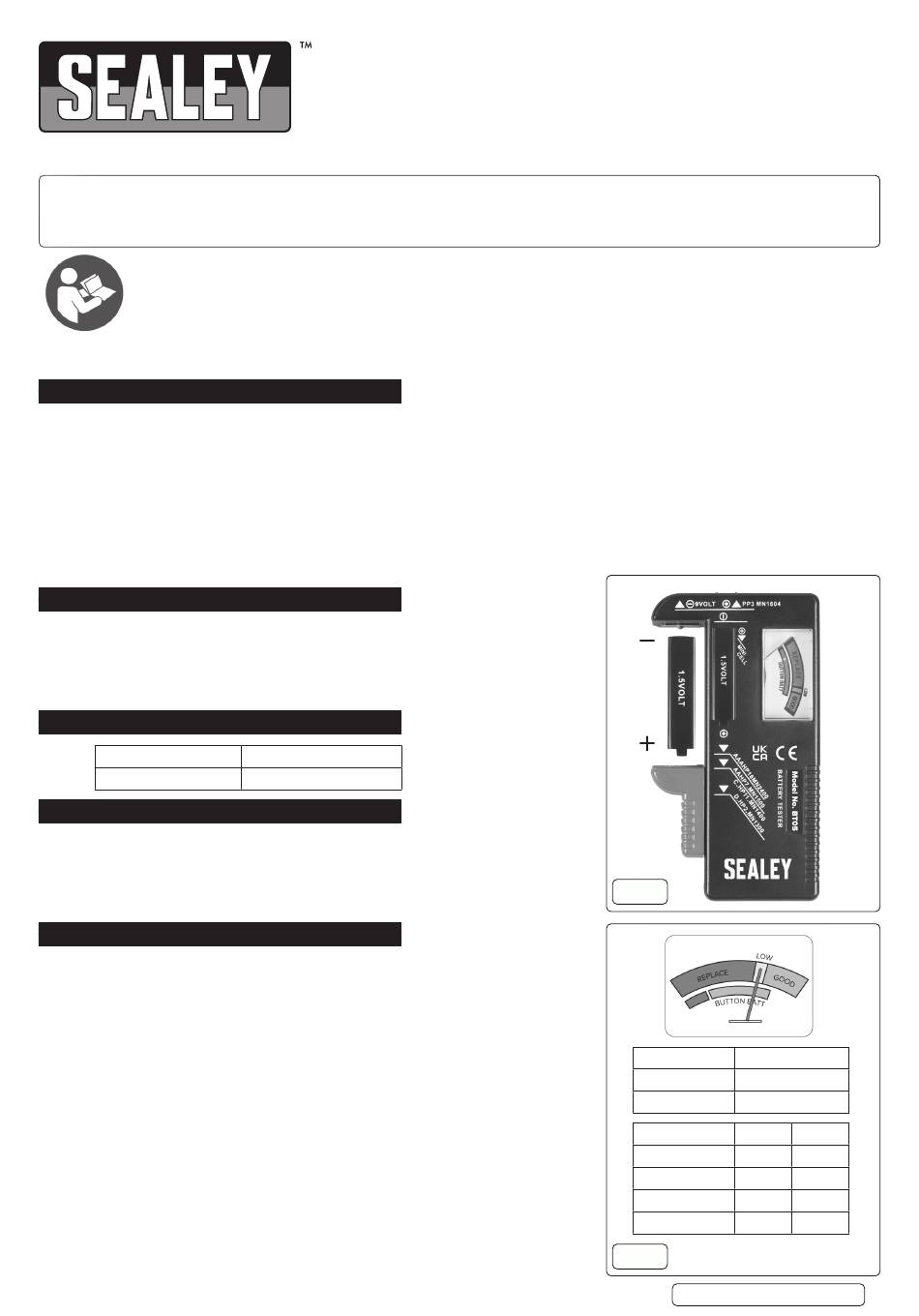

5.1.1. Refer to fig.1, connect the 1.5V battery to be tested to the metal contacts and ensure
the positive terminal of the battery is connected to the contact + and the negative
terminal of the battery is connected to the contact -.
5.1.2. Read the" 1.5V" scale:
• Green area indicates that the battery is good.
• Yellow area indicates that the battery is low.
• Red area indicates that the battery needs to be replaced or recharged.
• NOTE: If needle does not move, check that the battery is touching both contacts
before assuming that it is completely dead.
WARNING! The battery tester is activated by the battery being checked. Keep test
‰
time as short as possible to avoid unnecessary battery drain.
© Jack Sealey Limited
MULTIPURPOSE BATTERY TESTER, AAA,
AA, C, D, 9V, 1.5V BUTTON CELL BATTERIES,
ANALOGUE
BT05
MODEL NO:
BT05
0.046kg
Original Language Version
fig.1
Red Replace
Yellow Low Power
Green Good
Battery 1.5V
Nominal Load 4 Ω
Good/Low 1.0V
Low/Replace 0.9V
I Max at F.S.D 375mA
fig.2
BT05 Issue 1 10/10/24
9V
215 Ω
6.5V
5.3V
40mA
