Desco 150.018 Manual

Medium sander pneumatic, 4ʺ & 4.5ʺ
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Hand-Held
Scarifiers
Needleguns
Walk-Behind
Scarifiers
Impact Tools
Sanders
Specialty
Tools
Industrial
Vacuums

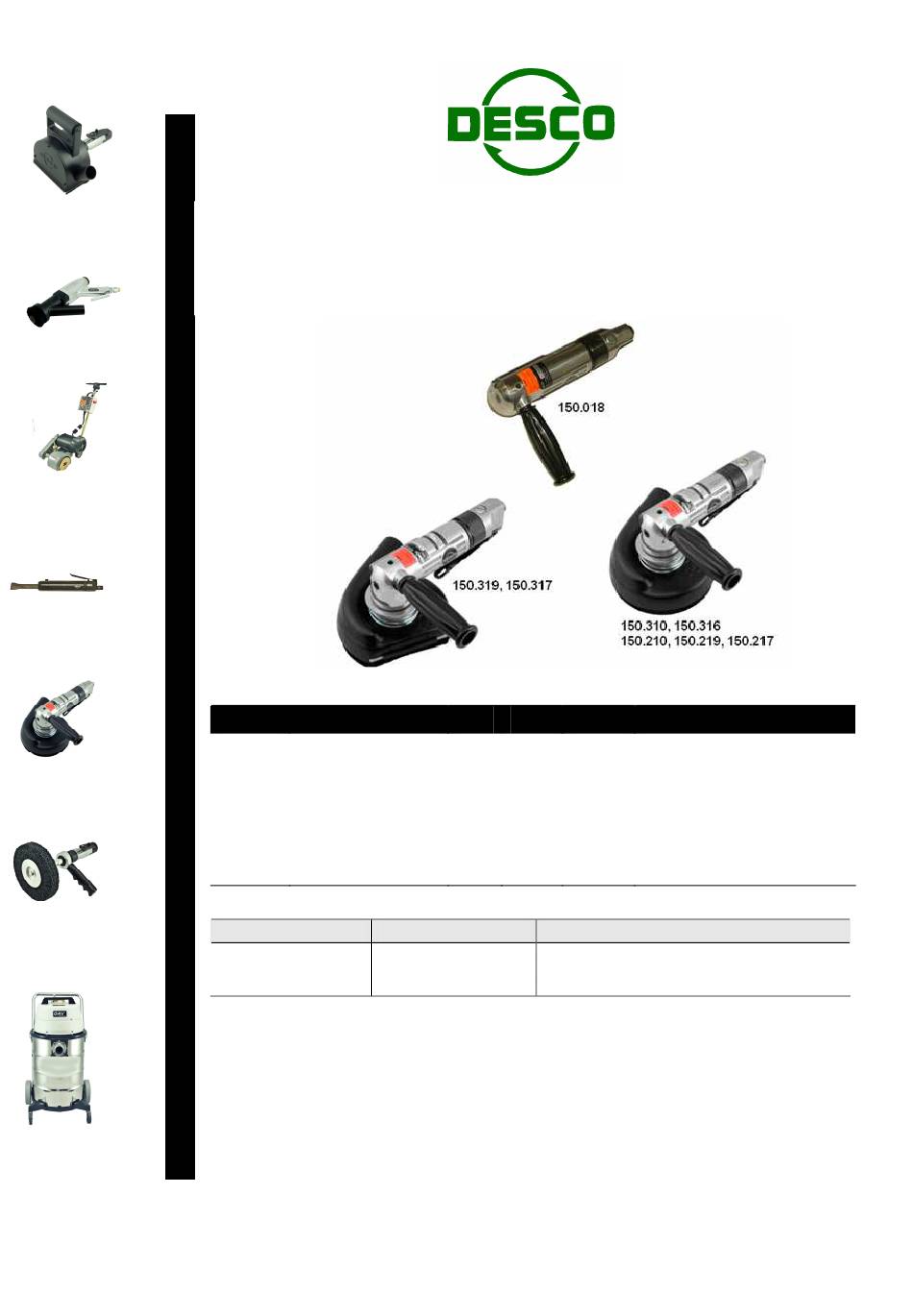

1-Desco_Grinder-Sander-4.0in-4.5in-Pneumatic-Manual_Jan2018.PDF
January 2018
Part
Description
150.018
Sander motor
150.319
4ʺ Sander
4ʺ Sanding system
150.317
150.310
4ʺ Sander
150.316
4ʺ Sanding system
150.210
4.5ʺ Sander
150.219
4.5ʺ Sander
150.217
4.5ʺ Sanding system
Abbreviations
1
2
DC – Dust Collector
BUP – Backup Pad
B – Bullnose
R – Round
*Notes:
a.
All configurations use the E-cup adapter and new 1.6ʺ deep shroud. As a result, all
depth setup data is new in this manual.
b.
See Chapter 6. Abrasive Depth within Dust Collector for depth setup information.
23031 Arroyo Vista ● Rancho Santa Margarita, CA 92688
949.858.7400 ● 949.858.9141 fax ● 800.337.2648 toll free
www.descomfg.com ● info@descomfg.com
Medium Sander
Pneumatic, 4ʺ & 4.5ʺ
Configurations*
1
2
DC
BUP
ASAC
none
none
none
B
RL
CA, CD
B
RL
CA, CD
R
RL
CA, CD
R
RL
CA, CD
R
HL
CD
R
CN
CA
R
HL
CD
3
ASAC – Abrasives Supported as Configured
RL – ROLOC
CA – Coated Abrasive
CN – Center Nut
CD – Conditioning Disc
HL – Hook & Loop
DC – Diamond Cup
DESCO Mfg. Co., Inc.
3
Accessories/Remarks
Carry case & assorted CA & CD
Carry case & assorted CD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 150.018 and is the answer not in the manual?

Questions and answers

Related Manuals for Desco 150.018

Summary of Contents for Desco 150.018

  • Page 1 All configurations use the E-cup adapter and new 1.6ʺ deep shroud. As a result, all depth setup data is new in this manual. See Chapter 6. Abrasive Depth within Dust Collector for depth setup information. DESCO Mfg. Co., Inc. 23031 Arroyo Vista ● Rancho Santa Margarita, CA 92688 Industrial 949.858.7400 ●...

  • Page 2: Table Of Contents

    Contents INTRODUCTION ........................ 1 ......................1 PPLICATIONS ....................1 ECHNICAL PECIFICATIONS ..................1 MPORTANT AFETY NFORMATION BASIC SAFETY RULES..................... 2 ........................2 ......................2 ERSONAL AFETY ......................2 SE AND OPERATION ........................3 ....................... 3 RIOR TO PERATION ......................3 RINDER PERATION .......................

  • Page 3: Introduction

    Innovative Solutions 1.0 Introduction The Desco 4ʺ and 4.5ʺ sander is a quality power tool available with highly effective dust collection. The tool is lightweight and affords the user maximum ease and efficiency in a variety of applications. As with any product of a quality manufacture, service life largely depends on correct handling.

  • Page 4: Basic Safety Rules

    DESCO Innovative Solutions 2.0 Basic Safety Rules WARNING Read and understand all instructions Failure to follow all instructions listed below may result in damage to the tool and/or serious personal injury. Work Area 1. Keep work area clean and well lit. Cluttered benches and dark areas invite accidents.

  • Page 5: Operation

    DESCO Innovative Solutions 3.0 Operation Prior to Operation 1) Check your work environment – Ensure the following before operation: • No flammable gas or liquid at worksite. • Work piece secured to prevent unwanted movement • Area cleared of children or unauthorized personnel.

  • Page 6: Tool Stowage

    DESCO Innovative Solutions 3) Use light grinding pressure – There is no need to press hard when grinding. Usually the grinder’s own weight is sufficient to allow the required light contact with the surface to be grinded. Let the tool do the work.

  • Page 7: Inspection And Preventative Maintenance Schedule

    DESCO Innovative Solutions 4.0 Inspection and Preventative Maintenance Schedule Interval Item Maintenance Procedure Daily Lubrication Always use factory in-line filter lubricator. Fill reservoir after each use or after 8 hours of operation with pneumatic tool oil. Insert 3-4 drops of oil in tool air inlet before storing.

  • Page 8: Changing Abrasives

    DESCO Innovative Solutions 5.0 Changing Abrasives Changing abrasives is a simple procedure as described below. However, when you change abrasive type, additional setup is often required. For example, if you change from coated abrasives to conditioning discs, you will also need to change the backup pad and shaft extension.

  • Page 9: Changing Diamond Cup Discs

    DESCO Innovative Solutions Changing Diamond Cup Discs 1) Disconnect tool from power source. 2) Lock the spindle. Locate the spindle lock wrench access port and insert the spindle wrench. Rotate disc by hand until spindle locks. Be sure wrench is fully inserted into slot before proceeding to remove diamond disc.

  • Page 10: Removing Stuck Diamond Cup Discs

    DESCO Innovative Solutions Removing Stuck Diamond Cup Discs When the procedure in section 5.3 fails to remove the disc, the disc is stuck and the sander needs to be taken apart to remove the diamond disc. 1) Disconnect tool from power source.

  • Page 11: Abrasive Depth Within Dust Collector

    Figure 6.1 – Abrasive Depth NOTE: If your abrasive depth is not within the acceptable range as identified in Figure 6.1, contact your Desco representative for assistance. Abrasive Depth – Adjusting to Accommodate Thickness Abrasives discs and the backup pads which secure them vary in thickness. As a result, the depth within the dust shroud varies and this affects dust containment.

  • Page 12: Abrasive Depth - Components To Adjust

    DESCO Innovative Solutions Abrasive Depth – Components to Adjust Part Description 500.237 Shaft extension, size A, 5/8-11 x 1.563 500.800 Shaft extension, size B, 5/8-11 x 2.650 500.230 Shaft extension, size C, 5/8-11 x 2.175 500.221 Shaft extension, size D, 5/8-11 x 2.000 500.235...

  • Page 13: Consumables

    4.5" Diameter ROLOC Attaching Center Nut Attaching Part Description Part Description 200.019 4.5" Desco RIP disc, 16 grit 815.424 4" Coated abrasive, 24 grit 815.9424 4.5" Coated abrasive, 24 grit 815.436 4" Coated abrasive, 36 grit 815.9436 4.5" Coated abrasive, 36 grit 815.460...

  • Page 14: Schematics

    DESCO Innovative Solutions 8.0 Schematics 4ʺ & 4.5ʺ Dust Collector Schematic Part No Description 150.321 Mounting plate, electric 150.009 Mounting plate, air 150.011 Spring 150.012 Body, round dust collector 150.005 Body, bullnose dust collector 150.002 Brush, round dust collector 150.001 Brush, bullnose dust collector 150.013...

  • Page 15: Grinder Schematic

    DESCO Innovative Solutions Grinder Schematic Part No. Description Part No. Description 550.372 Motor Housing "O" Ring 550.373 Seal Plate 550.387 Exhaust Deflector 550.179 Ball Bearing 550.389 Screw (2 req'd) 550.374 Arbor 550.1045 Plug 550.375 Ball Bearing 550.388 "O" Ring 550.376 Woodruff Key 550.390...
