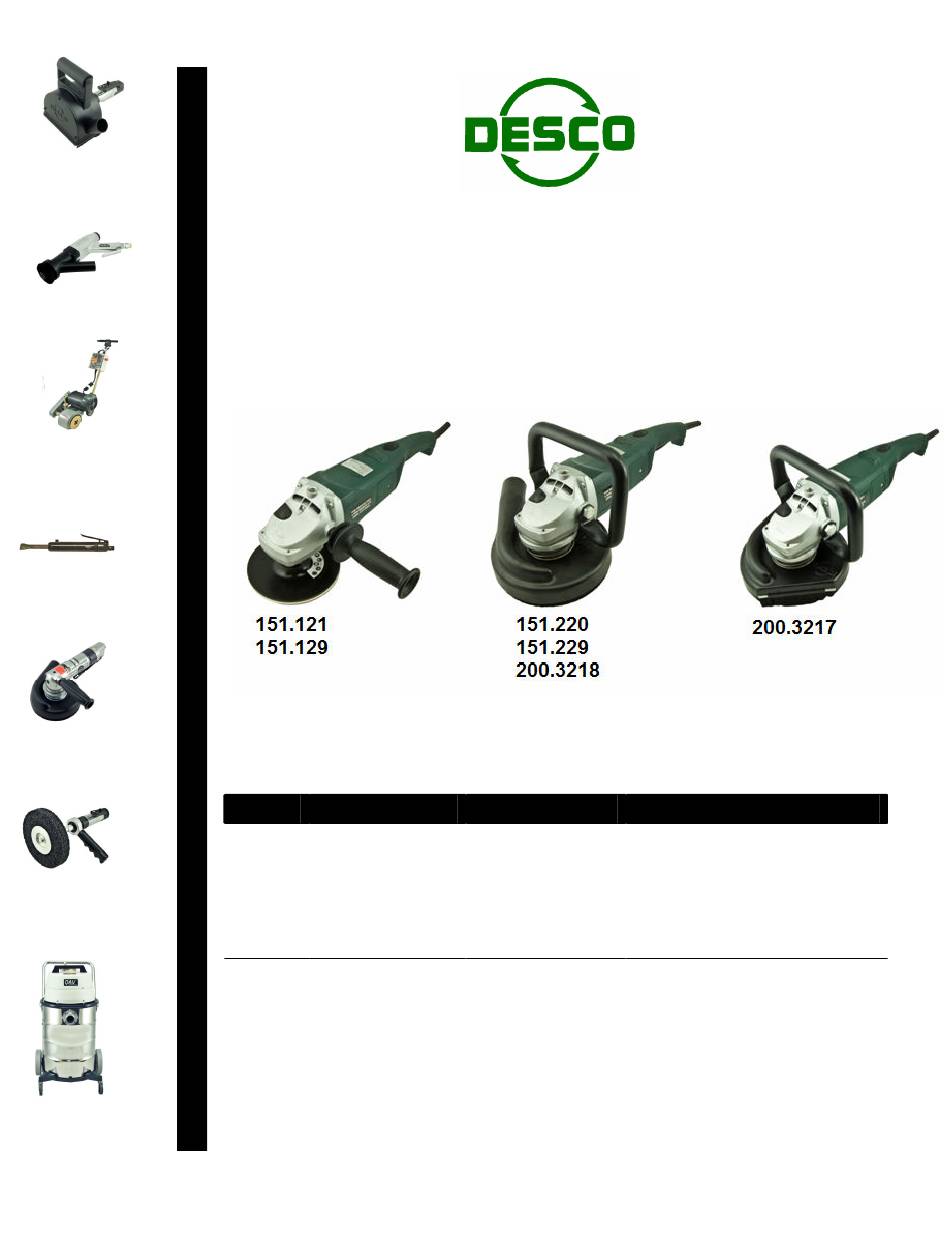

Grinder-Sander, 7in, Electric, (151., 200.series), Manual, Mar2013.PDF
March 2013
Part
Description
151.121
7ʺ Sander
151.129
7ʺ Sander
151.220
7ʺ Sander
151.229
7ʺ Sander
200.3217
7ʺ Sander
200.3218
7ʺ Sander
*Bullnose available only for use with diamond cup wheels (other abrasives do not fit).
23031 Arroyo Vista ● Rancho Santa Margarita, CA 92688
949.858.7400 ● 949.858.9141 fax ● 800.337.2648 toll free
www.descomfg.com ● info@descomfg.com
7ʺ Sander
Configurations
Dust Shroud
None
None
Floating Round
Floating Round
Floating Bullnose*
Floating Round
DESCO Mfg. Co., Inc.
Electric
Backup Pad (Abrasive)
Hook & Loop (Conditioning Disc)
Center Nut (Coated Abrasive)
Hook & Loop (Conditioning Disc)
Center Nut (Coated Abrasive)
None (Diamond Cup Wheel)
None (Diamond Cup Wheel)
Advertisement
Table of Contents
Related Manuals for Desco 151.121
Summary of Contents for Desco 151.121
- Page 1 Floating Round None (Diamond Cup Wheel) *Bullnose available only for use with diamond cup wheels (other abrasives do not fit). DESCO Mfg. Co., Inc. 23031 Arroyo Vista ● Rancho Santa Margarita, CA 92688 Industrial 949.858.7400 ● 949.858.9141 fax ● 800.337.2648 toll free Vacuums www.descomfg.com ●...
-
Page 2: Table Of Contents
Contents INTRODUCTION ..........................1 ..........................1 PPLICATIONS ........................ 1 ECHNICAL PECIFICATIONS ....................... 1 MPORTANT AFETY NFORMATION BASIC SAFETY RULES ........................2 ............................2 ..........................2 ERSONAL AFETY .......................... 2 SE AND OPERATION............................3 ......................... 3 RIOR TO PERATION ......................... 3 RINDER PERATION CHANGING ABRASIVES ........................ -
Page 3: Introduction
Innovative Solutions Introduction The Desco Pneumatic 7ʺ Sander is a quality power tool available with highly effective dust collection. The tool is lightweight and affords the user maximum ease and efficiency in a variety of applications. As with any product of a quality manufacture, service life largely depends on correct handling. -
Page 4: Basic Safety Rules
DESCO Innovative Solutions Basic Safety Rules WARNING Read and understand all instructions Failure to follow all instructions listed below may result in damage to the tool and/or serious personal injury. Work Area 1. Keep work area clean and well lit. Cluttered benches and dark areas invite accidents. -
Page 5: Operation
DESCO Innovative Solutions Operation Prior to Operation 1) Check your work environment – Ensure the following before operation: • No flammable gas or liquid at worksite. • Work piece secured to prevent unwanted movement • Area cleared of children or unauthorized personnel. - Page 6 DESCO Innovative Solutions 3) Use light grinding pressure – There is no need to press hard when grinding. Usually the grinder’s own weight is sufficient to allow the required light contact with the surface to be grinded. Let the tool do the work.
-
Page 7: Changing Abrasives
DESCO Innovative Solutions Changing Abrasives Changing abrasives is a simple procedure as described below. However, when you change abrasive type, additional setup is often required. For example, if you change from coated abrasives to conditioning discs, you will also need to change the backup pad and shaft extension. - Page 8 DESCO Innovative Solutions 3) Mount center-nut style backup pad by threading on to spindle while holding spindle lock. 4) Mount abrasive centered on backup pad. 5) Install center-nut and tighten with spanner wrench while holding spindle lock. 7ʺ Sander, Electric...
-
Page 9: Setup For Conditioning Discs
DESCO Innovative Solutions Setup for Conditioning Discs 1) Disconnect tool from power source. 2) Lay the tool on its back on a suitable work surface. 3) Mount hook and loop style backup pad by threading on to spindle while holding spindle lock. -
Page 10: Setup For Diamond Cup Wheels
DESCO Innovative Solutions Setup for Diamond Cup Wheels 1) Disconnect tool from power source. 2) Lay the tool on its back on a suitable work surface. 3) Remove jam nut from spindle while holding spindle lock, set aside. 4) Insert brass spacer. - Page 11 DESCO Innovative Solutions 5) Replace jam nut over spacer and tighten with ¾ʺ wrench while holding spindle lock. 6) Install diamond cup wheel by threading on to spindle while holding spindle lock. 7ʺ Sander, Electric Page 9 March 2013...
-
Page 12: Backup Pad And Shaft Extension Usage
DESCO Innovative Solutions Backup Pad and Shaft Extension Usage To ensure effective dust collection, the dust shroud must be in contact with the work surface during operation. However, backup pads and abrasive discs vary in thickness. Shaft extensions of various lengths were developed to accommodate this variable thickness. -
Page 13: Schematics
DESCO Innovative Solutions Schematics 7ʺ Dust Collector Schematic (Electric) Part Description 777.011 Spacer, (4 required) 200.014 Cup Adapter 750.107 Bolt (4) 151.006 Spring 151.007 Shroud, round 200.004 Shroud, bullnose 150.003 Brush set, round shroud 200.010 Brush set, bullnose shroud 200.001 Retaining plate 750.070... -
Page 14: Grinder Schematic
DESCO Innovative Solutions Grinder Schematic Electric Motor Part: 700.121 Used in Parts: 151.121, 151.129, 151.220, 151.229, 200.3217, 200.3218 7ʺ Sander, Electric Page 12 March 2013... - Page 15 DESCO Innovative Solutions Part No Description 343397790 Push button 342003390 Pressure spring 341005830 Guide bush 316045500 Gear housing cpl. 341515430 Bolt 341100660 Self locking nut 316045530 Bevel gear 141123870 Washer 143115230 Ball bearing, 12x37x12 339007280 Fixed bearing cover 316045560 Fan w. dust guard 310009490 Armature compl.,120V...
