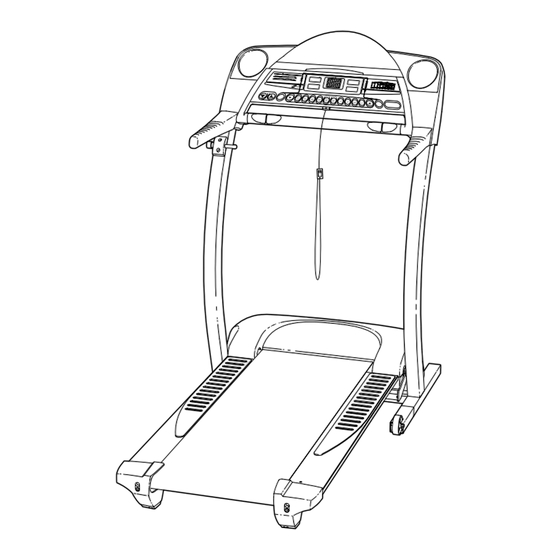

Model No. 831.291761
Serial No.
Serial
Number
Decal
SEARS, ROEBUCK AND CO.
HOFFMAN ESTATES, IL 60179
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
All manuals and user guides at all-guides.com
USER'S MANUAL
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Patent Pending
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ProForm 775 EKG
Summary of Contents for ProForm 775 EKG
- Page 1 SEARS, ROEBUCK AND CO. Patent Pending HOFFMAN ESTATES, IL 60179 CAUTION Visit our website at Read all precautions and instruc- tions in this manual before using www.proform.com this equipment. Save this manual new products, prizes, for future reference. fitness tips, and much more!
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com TABLE OF CONTENTS IMPORTANT PRECAUTIONS ..............3 BEFORE YOU BEGIN . -
Page 3: Important Precautions
All manuals and user guides at all-guides.com IMPORTANT PRECAUTIONS WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and information before operating the treadmill. 1. It is the responsibility of the owner to ensure 12. - Page 4 All manuals and user guides at all-guides.com 22. When using iFIT.com CDs and videos, an 25. Inspect and properly tighten all parts of the electronic “chirping” sound will alert you treadmill regularly. when the speed and/or incline of the treadmill is about to change.
-
Page 5: Before You Begin
Thank you for selecting the revolutionary PROFORM ® please call our toll-free HELPLINE at 1-800-736-6879, 775 EKG treadmill. The 775 EKG treadmill combines Monday through Saturday, 7 a.m. until 7 p.m. Central advanced technology with innovative design to help Time (excluding holidays). To help us assist you,... -
Page 6: Assembly
All manuals and user guides at all-guides.com ASSEMBLY Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires your own Phillips screw- driver , wire cutters , and rubber mallet... - Page 7 All manuals and user guides at all-guides.com 3. With the help of a second person, carefully tip the Uprights (64) back to the vertical position. Attach the Latch Assembly (32) to the left Upright (64) with two Extension Screws (35). 4.
-
Page 8: Operation And Adjustment
All manuals and user guides at all-guides.com OPERATION AND ADJUSTMENT THE PERFORMANT LUBE WALKING BELT an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge suppressor, Your treadmill features a walking belt coated with and plug the surge suppressor into an appropriate PERFORMANT LUBE , a high-performance lubricant. -
Page 9: Console Diagram
All manuals and user guides at all-guides.com CONSOLE DIAGRAM Manual/Program Indicators Display Program Display Display Program Profiles Note: If there is a thin sheet of plastic Clip on the face of the console, remove it. The console also features new iFIT.com interactive CAUTION: technology. - Page 10 All manuals and user guides at all-guides.com HOW TO TURN ON THE POWER Each time a button is pressed, the speed setting will change by 0.1 mph; if a button is held down, the speed setting will change in increments of 0.5 Plug in the power cord (see page 8).
- Page 11 All manuals and user guides at all-guides.com Time/Incline/Segment Measure your heart rate, if desired. Time display—When the manual mode or the Note: Before using the handgrip pulse sensor, iFIT.com mode is se- make sure that your hands are clean. lected, this display will show the elapsed time To measure your and the incline level of the treadmill.
- Page 12 All manuals and user guides at all-guides.com cline setting may be pro- Current Segment HOW TO USE PERSONAL TRAINER PROGRAMS grammed for consecutive segments.) The speed setting for the first seg- Insert the key fully into the console. ment will be shown in the flashing Current See HOW TO TURN ON THE POWER on page Segment column of the...
- Page 13 All manuals and user guides at all-guides.com To stop the program temporarily, press the Stop HOW TO USE HEART RATE PROGRAMS button. The Time/Incline/Segment Time display will begin to flash. To restart the program, press the Start button or the Speed button.
- Page 14 All manuals and user guides at all-guides.com During heart rate pro- The speed and/or incline of the treadmill will then grams, the program change, if needed, to bring your heart rate closer to display will show a the target heart rate setting for the next segment. graphic that represents The program will continue until no time remains in your heart rate.
- Page 15 All manuals and user guides at all-guides.com HOW TO CONNECT YOUR PORTABLE STEREO HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a 3.5mm LINE OUT jack, see instruction B.
- Page 16 All manuals and user guides at all-guides.com HOW TO CONNECT YOUR HOME STEREO HOW TO CONNECT YOUR COMPUTER Note: If your stereo has an unused LINE OUT jack, Note: If your computer has a 3.5mm LINE OUT jack, see instruction A below. If the LINE OUT jack is see instruction A.
- Page 17 All manuals and user guides at all-guides.com HOW TO CONNECT YOUR VCR HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B.
- Page 18 All manuals and user guides at all-guides.com If the speed or incline settings are too high or too • Adjust the volume of your CD player or VCR. low, you can manually override the settings at any If the volume is too high or too low, the con- time by pressing the Speed or Incline buttons on sole may not detect the program signals.
- Page 19 All manuals and user guides at all-guides.com Return to the treadmill and stand on the foot HOW TO USE PROGRAMS DIRECTLY FROM rails. Find the clip attached to the key and slide OUR WEB SITE the clip onto the waistband of your clothing. When the on-screen countdown ends, the program Our Web site at www.iFIT.com allows you to access will begin and the walking belt will begin to move.
- Page 20 All manuals and user guides at all-guides.com THE INFORMATION MODE/DEMO MODE THE OPTIONAL CHEST PULSE SENSOR The console features an information mode that keeps An optional chest pulse sensor adds even more fea- track of the total number of hours that the treadmill has tures to the console.
-
Page 21: How To Fold And Move The Treadmill
All manuals and user guides at all-guides.com HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be permanently damaged. - Page 22 All manuals and user guides at all-guides.com HOW TO LOWER THE TREADMILL FOR USE 1. Hold the upper end of the treadmill with your right hand as shown. Using your left hand, pull the latch knob to the left and hold it. Pivot the treadmill down until the frame is past the pin.
-
Page 23: Troubleshooting
All manuals and user guides at all-guides.com TROUBLESHOOTING Most treadmill problems can be solved by following the simple steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, call our toll-free HELPLINE at 1-800-736-6879, Monday through Saturday, 7 a.m. - Page 24 All manuals and user guides at all-guides.com Locate the Reed Switch (18) and the Magnet (48) on the left side of the Pulley (78). Turn the Pulley until the 1/8” Magnet is aligned with the Reed Switch. Make sure that the gap between the Magnet and the Reed Switch is about 1/8”.
-
Page 25: Conditioning Guidelines
All manuals and user guides at all-guides.com CONDITIONING GUIDELINES ergy. Only after the first few minutes does your body WARNING: begin to use stored fat calories for energy. If your goal Before beginning this is to burn fat, adjust the speed and incline of the tread- or any exercise program, consult your physi- mill until your heart rate is near the lowest number in cian. -
Page 26: Suggested Stretches
All manuals and user guides at all-guides.com SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. - Page 27 All manuals and user guides at all-guides.com NOTES...
-
Page 28: Replacement Parts
All manuals and user guides at all-guides.com The model number and serial number of your PROFORM ® Model No. 831.291761 EKG treadmill are listed on a decal attached to the frame. See the front cover of this manual to find the location of the decal. - Page 29 All manuals and user guides at all-guides.com REMOVE THIS EXPLODED DRAWING AND PART LIST FROM THE MANUAL Save this EXPLODED DRAWING and PART LIST for future reference. Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of the User’s Manual.
- Page 30 All manuals and user guides at all-guides.com PART LIST—Model No. 831.291761 R0702A To locate the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual. No. Qty. Description No. Qty. Description No. Qty. Description Motor Hood Book Holder Left Bottom Handgrip IFIT.com CD...
- Page 31 All manuals and user guides at all-guides.com EXPLODED DRAWING—Model No. 831.291761 R0702A...
