- Page 1 12-Inch 20V Lithium-ion String Trimmer With (1) 20V 2.0Ah Lithium-ion Battery 267-2903 OPERATOR’S MANUAL TOLL-FREE HELPLINE: 1-888-930-8528 Read this operator manual before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Symbols ................1 Important Safety Instructions ............2 Know Your Tools ................6 Charging Your Battery ..............8 Assembly ..................9 Operation ..................11 Maintenance ................14 Troubleshooting ................16 Warranty ..................17 READ ALL INSTRUCTIONS! READ & UNDERSTAND INSTRUCTION MANUAL WARNING: Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. -
Page 3: Important Safety Instructions
To reduce the risk of injury, user must read Read Operator's and understand operator’s manual before Manual using this product. Noise may damage your hearing. Always wear sound barriers (ear plugs or ear mufflers) to Wear Ear Protection protect your hearing. Always wear safety goggles or safety glasses Wear Eye Protection with side shields and a full-face shield when... - Page 4 FOR ALL TOOLS 1) Avoid Dangerous Environment – Don’t use tools in damp or wet locations. 2) Don’t Use in Rain. 3) Keep Children Away - All visitors should be kept at a distance from work area. 4) Dress Properly - Do not wear loose clothing or jewelry. They can be caught in moving parts.
- Page 5 4. Use tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. 5. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a con- nection from one terminal to another.
-
Page 6: Safety Warnings For Battery Pack
8. Damage to Trimmer - If you strike a foreign object with the trimmer or it becomes entangled, stop the tool immediately, check for damage and have any damage repaired before further operation is attempted. Do not operate with a broken guard or spool. -
Page 7: Know Your Tools
10. Battery pack need to be charged before use. Always use the correct charger and refer to the manufacturer’s instructions or equipment manual for proper charging instructions. 11. Do not leave battery pack on prolonged charge when not in use. 12. -
Page 8: Technical Data
1. On/off switch 7. Spool and line 13. Auxiliary handle 2. Safety lock 8. Flower guard 14. Push button for adjusting front 3. Operating handle 9. Cutting head handle 4. Battery pack 10. Edging wheel 15. Battery charger 5. Shaft adjustment collar 11. -
Page 9: Charging Your Battery
CHARGING YOUR BATTERY Battery Indicator The battery pack is equipped with a push button for checking the charge level. Simply press the push button to read off the battery charge level from the LEDs of the battery indicator: LED Indicator Battery Charge Level/Working Conditions 3 lights on 70%<Charge Level≤100%... -
Page 10: Assembly
NOTICE: The battery pack will fully charge if left on the charger, but it will not over- charge. If the battery pack remains on the charger for one month or more, it will drop to lower charge capacity. If this occurs, re-install the battery pack on the charger to recharge it fully. - Page 11 - If any parts are damaged or missing, please return the product to the place of purchase. Fitting The Safety Guard(Fig. 1) a. Place the string trimmer on a flat surface. Put the string trimmer upside down. Mount the protective hood on the motor head. b.
-
Page 12: Operation
OPERATION WARNING: Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. WARNING: Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with hearing protection. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries. - Page 13 Converting To Edging Function(Fig.7) a. Press the edging function converting button. b. Turn the trimmer head 90°.Release the edging function converting button, and make sure the string trimmer head is secured in place. c. Now the string trimmer can be operated as a wheeled edger. 90°...
- Page 14 a. Press the lock-off button and hold it in that position. Depress the ON/OFF trigger to turn on the string trimmer. b. Release the lock off button after the trimmer is turned on. c. To stop, release the ON/OFF trigger. Wait till the machine and the spool line come to a complete stop.
-
Page 15: Maintenance
along walls). c. Cutting with the tip of the lines. Do not force the trimmer into uncut grass. Use the recommended cutting area. (Fig. 10) d. Grass over 8 inches (200 mm) should be cut by working from top to the bottom in small increments to avoid premature line wear or motor drag. - Page 16 a. Remove the battery pack. b. Press both locking devices together at the spool cover and remove the spool cover, remove the old spool. c. Fit the new spool or refilled spool in the trimmer head. d. Refit the spool cover. Clean The String Trimmer a.
- Page 17 Storing The String Trimmer a. Remove the battery pack from the trimmer. b. Clean the tool thoroughly before storing it. c. Store the unit in a dry, well-ventilated area, locked-up or up high, out of the reach of children. Do not store the unit on or adjacent to fertilizers, gasoline, or other chemi- cals.
-
Page 18: Troubleshooting
TROUBLESHOOTING Problem Solution Possible Cause The battery pack is not Attach the battery pack to the trimmer. attached to the trimmer. No electrical contact between Remove battery, check contacts and reinstall the the trimmer and battery. battery pack. String trimmer Charge the battery pack. -
Page 20: Limited Warranty Service
LIMITED WARRANTY SERVICE 2-Year Tool, Battery and Charger Warranty Against Defects in Materials, Parts or Workmanship. All Units Must Be Used and Maintained in Accordance with The Directions and Regula- tions in the Operator's Manual. Contact the TOLL-FREE HELPLINE: 1-888-930-8528 for assistance.
Need help?
Do you have a question about the Yardworks 267-2903 and is the answer not in the manual?
Questions and answers

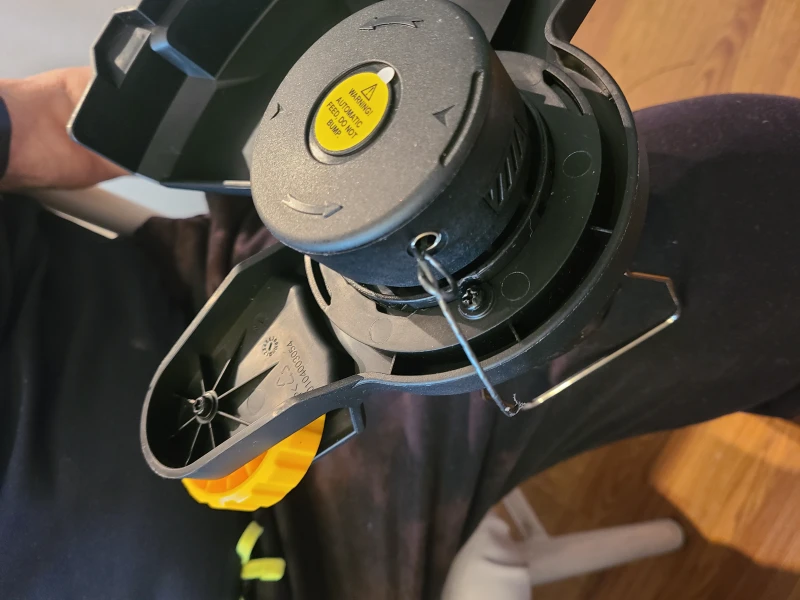

Just bought Yardworks 267-2903. Do I pull the metal wire for the stding?
No. The Yardworks 267-2903 does not require pulling a metal wire for standing.
This answer is automatically generated
Where do I get a replacement trimmer cap..

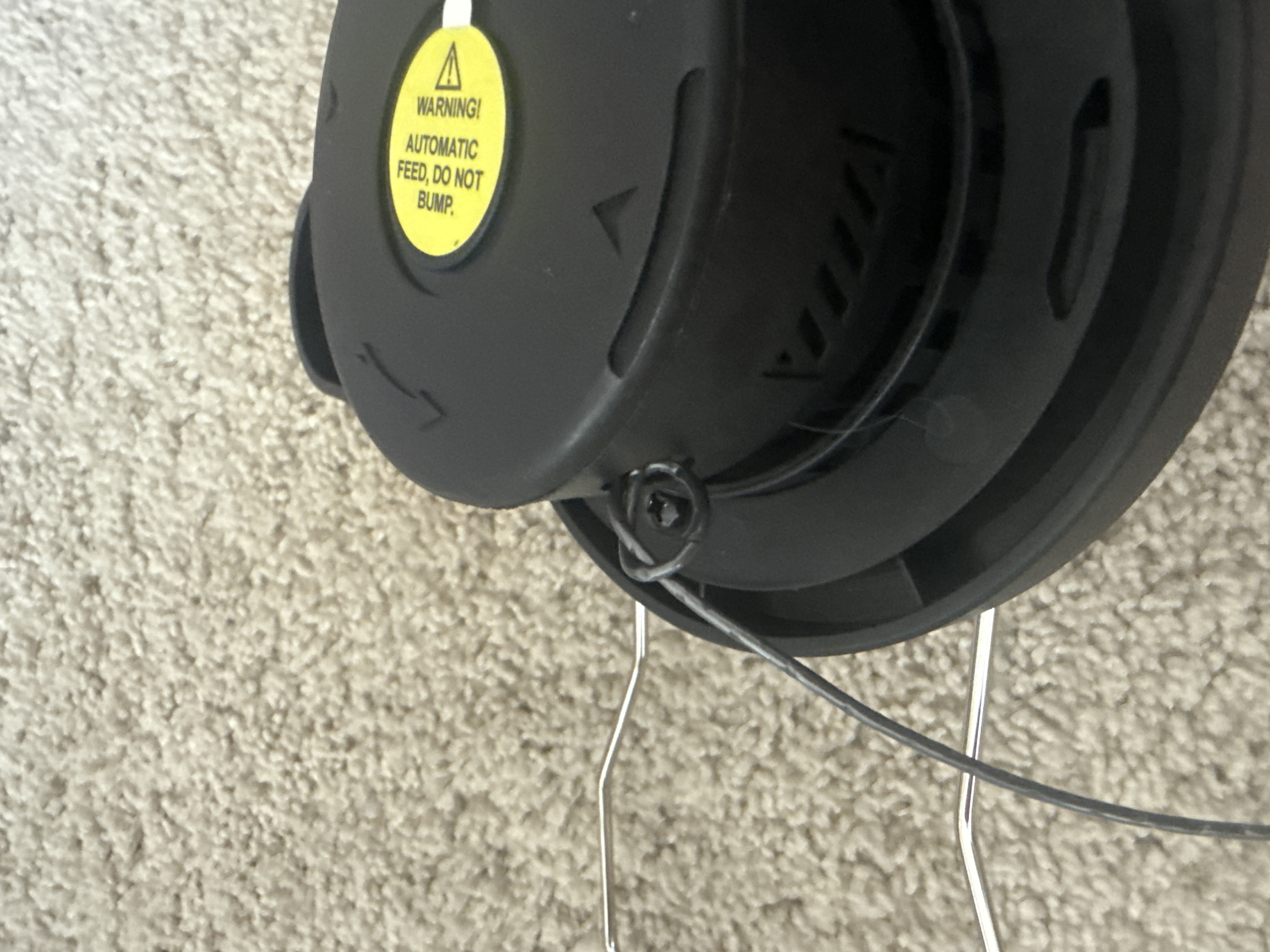

The string came looped/ tied is it supposed to stay that way?
