WSnow13S

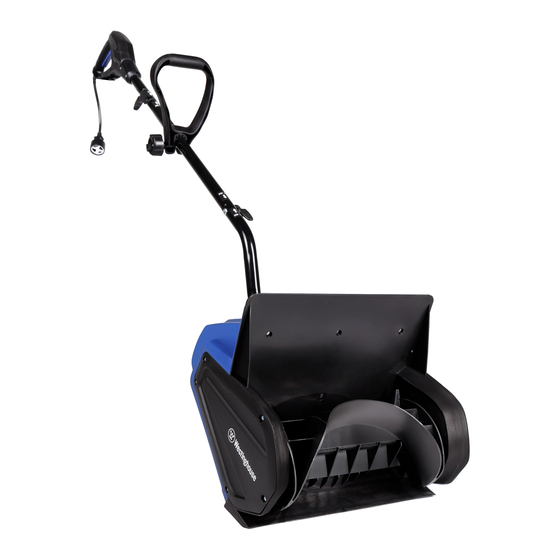

13-in. Snow Shovel
DO NOT RETURN THIS PRODUCT TO THE STORE
If you have questions or need assistance, please call customer service at 855-944-3571.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WSnow13S and is the answer not in the manual?

Questions and answers

Summary of Contents for Westinghouse WSnow13S

  • Page 1 User Manual WSnow13S 13-in. Snow Shovel DO NOT RETURN THIS PRODUCT TO THE STORE If you have questions or need assistance, please call customer service at 855-944-3571.
  • Page 2 State of California to cause cancer and birth coverage, it is important to defects or other reproductive harm. To minimize register your Westinghouse exposure, wear gloves or wash your hands frequently when servicing this equipment. For more information go product.
  • Page 3: General Safety Warnings

    IMPORTANT! 5. Avoid accidental starting – Do not carry the electric snow shovel with your finger on the switch. Make sure the Safety Instructions switch is off before plugging in the unit. If the cord is damaged in any manner during operation, All Operators Must Read These pull the extension cord from the wall receptacle.
  • Page 4 Operation This electric snow shovel can amputate hands and feet if used incorrectly. It can also pick up foreign • Do not put hands or feet near or under rotating parts. Keep objects, which can become dangerous projectiles when thrown into the air. Failure to observe the clear of the discharge opening at all times.
  • Page 5: Double-Insulated Appliances

    Maintenance and Storage 3. To prevent electric shock, use only with an extension cord suitable for outdoor use, such as SW-A, SOW-A, STW-A, • Check all fasteners at frequent intervals for proper tightness STOW-A, SJW-A, SJOW-A, SJTW-A, or SJTOW-A. to ensure that the equipment is in safe working condition. Before use, check that the extension cord is in good •...
  • Page 6: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand and follow all instructions in the WARNING! Electrical shock hazard.
  • Page 7: Technical Data

    Know Your Electric Snow Shovel Read the owner’s manual and safety instructions carefully before operating the electric snow shovel. Compare the illustration below to the electric snow shovel in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
  • Page 8: Carton Contents

    If you find damaged or assembly missing parts, DO NOT return the unit to the store. Please call Westinghouse Outdoor Power Equipment (855) 2. Insert a bolt through the aligned holes in the tubes 944-3571. and secure the other end with a knob (Fig. 3). Twist NOTE: Do not discard the shipping carton and packaging until tight.
  • Page 9: Operation

    Positioning the Adjustable Handle The appliance plug will fit into a polarized extension cord only one way. If the appliance plug does not fit fully into the 1. Move and rotate the adjustable handle to a comfortable extension cord, reverse the plug. If the plug still does not working position (Fig.
  • Page 10: Starting And Stopping

    To order genuine replacement parts or accessories for the Westinghouse electric snow shovel, please call Westinghouse Starting and Stopping Outdoor Power Equipment at (855) 944-3571.
  • Page 11 2. Secure the auger as you disassemble the auger assembly 5. Remove the screws and the bushings from the drive wheel nut (Fig. 12). (Fig. 15). Fig. 12 Fig. 15 Screws and bushings Auger assembly 3. Disassemble the left side cover by removing the five (5) 6.
  • Page 12 8. Install the replacement auger by following the above steps 4. Remove the four (4) screws and two (2) nuts from the in reverse order (Fig. 18). motor support (Fig. 20). Fig. 20 Fig. 18 Motor support with 4 screws 2 nuts Auger 5.
  • Page 13: Replacing The Scraper Blade

    Fig. 23 Fig. 25 4 screws Motor support Drill Belt 2. Remove the old scraper blade (Fig. 26). 7. Replace the worn belt with a new belt, then screw the motor support back into position (Fig. 24). Fig. 26 Fig. 24 Motor support Scraper blade Belt...
  • Page 14: Service And Support

    NOTE: Devices for retaining extension cords are commercially available, should you wish to purchase one. Service and Support If your Westinghouse electric snow shovel requires service or maintenance, please call Westinghouse Outdoor Power Equipment (855) 944-3571. Model and Serial Numbers...
  • Page 15 Service Hotline (855) 944-3571 777 Manor Park Drive, Columbus, OH 43228 and Westinghouse are trademarks of Westinghouse Electric Corporation. Used under license by Westinghouse Outdoor Power Equipment. WSnow13S 062624 Rev 01 © 2024 Westinghouse Outdoor Power Equipment, All Rights Reserved.
