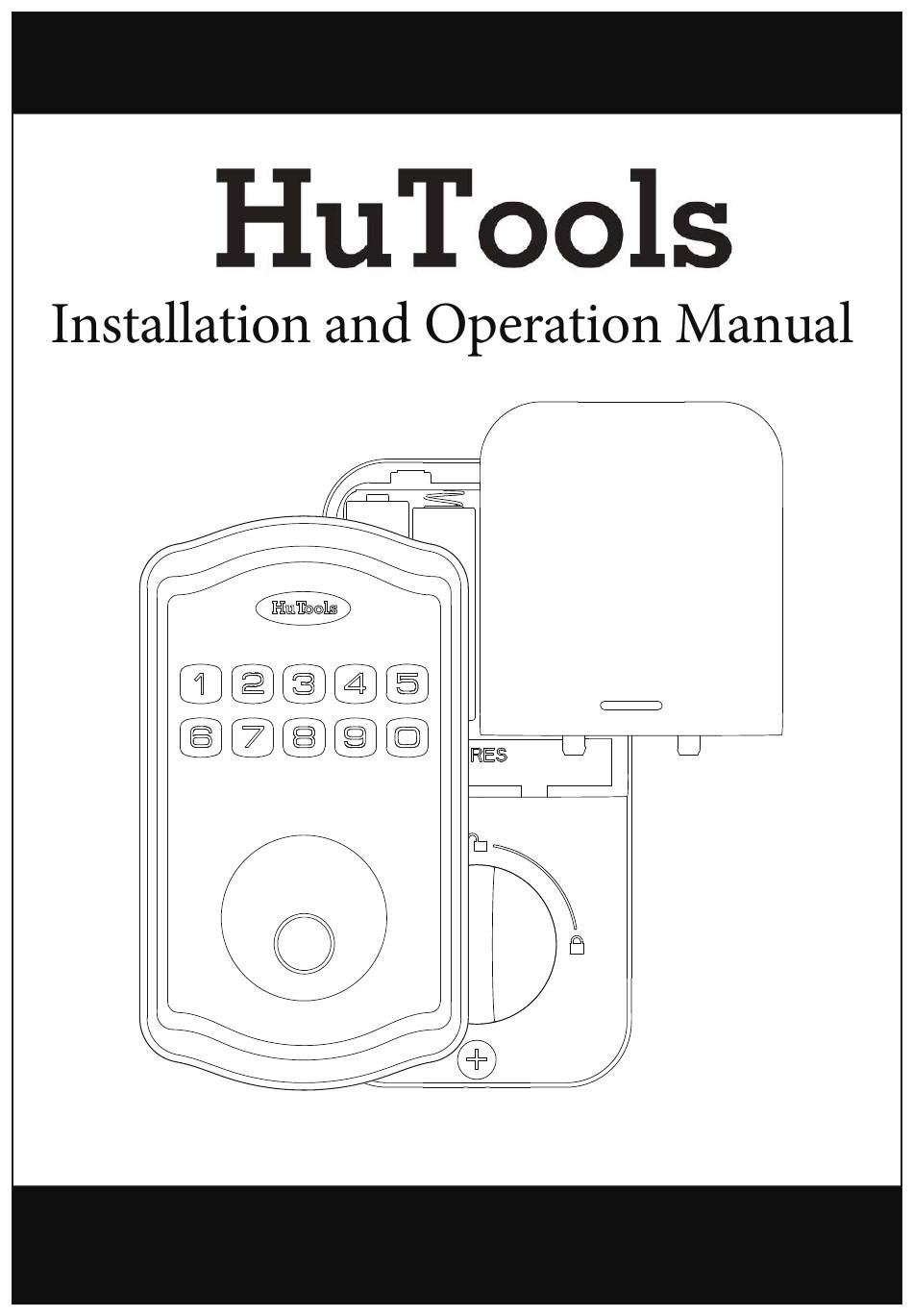

- Page 1 DKS02 Fingerprint Door Lock...
-
Page 2: Installation Overview
Installation Overview Install the physical lock Detect door orientation Change the default master code Customize setting Important tips to ensure a successful installation: Questions? -
Page 3: Parts List
Parts List Reset Tool K x 1 Micro USB Power Port NO ELECTRIC DRILLS... -
Page 4: Installation Instructions
Installation Instructions Door Measurements （54 mm） （25mm） Adjust Latch Backset Backset: (70mm) - Page 5 Installation Instructions (Continued) Install the Latch Install Strike on the door frame Make sure hole in door frame is at least 1''(25mm) deep. Check Alignment plate...
- Page 6 Installation Instructions (Continued) Install Keypad Assembly Install Mounting Plate Keep parallel to door edge.
- Page 7 Installation Instructions (Continued) Install Interior Assembly Connect the cable by pushing connector in firmly until it Don't put is completely batteries seated . in yet. Check deadbolt operation by turning the thumbturn back and forth. If thumbturn doesn't rotate, repeat steps 8c and apply much more force.
- Page 8 Detect door orientation / Factory reset reset your lock unlcoked and proceed to the next step. Test the Lock Locking: P Unlocking: Press any key to activate → →...
-
Page 9: Program & Use
Program & Use UNLOCK from outside 1 Press any key to activate. Touch and hold the 2 Enter Master code / User code. sensor with your finger. 3 Press to confirm. LOCK from outside Enable Auto Lock ( see page11) Press an y button on keypad for 2 seconds Programming Basics... - Page 10 Program & Use (Continued) · Micro USB Power Port Micro USB charging port is under the exterior keypad. When locked out or dead batteries, use a Micro USB cable to connect a portable power bank, it can supply power for keypad or reboot keypad.
- Page 11 Program & Use (Continued) · Activate the keypad by press before programming. Add User Code • Enter the New Code Again Delete User Code DAdd Fingerprint • Up to 20 fingerprints could be added. Scan Fingerprint 5 Times DDelete Fingerprint Scan Unwanted Fingerprint...
- Page 12 Program & Use (Continued) D D . Disable Silent Mode Enable Silent Mode • Enable Auto Lock • Disable Auto Lock Set Auto Lock Time Delay • Vacation Mode • Add One-Time Code • Enter the Code Again...
- Page 13 Program & Use (Continued) Factory Default Settings How To Reset Step1 Step2 Keep holding the reset button until the latch extends Safety Warnings • • • • • • •...
- Page 14 Troubleshooting Solution When Refers to Thumbturn won't rotate by hand. Installing Doesn’t work on the left-hand door or A H J right-hand door. C D E The latch goes in and out. F G Q The latch retracts. The latch doesn't extend but there's C D E motor turning sound.
- Page 15 Troubleshooting Solution When Refers to Thumbturn won't rotate by hand. Keypad doesn't respond when touched (no lights are visible and no beeping is heard) . The keypad light never goes off. Deadbolt doesn't lock/extend when A H J pressing any key for 2 seconds. Deadbolt doesn't unlock/retract when A H J entering codes +...
- Page 16 Troubleshooting Solutions A Make sure the thumbturn is vertical and door unlock when installing. B Use much more strength to rotate the thumbturn. C Step 1: Make sure the cable is properly seated when connecting. Step 2: Make sure the batteries are placed properly. Step 3: Change another 4 fresh AA alkaline batteries.
- Page 17 Note that this is not to charge the batteries. S When batteries are running low, you'll see 10 flash red lights after pressing any key on keypad. * * If none of the above resolves your issue, please contact us at support@huTools.com.
