STRECKEISEN SEISMIC INSTRUMENTATION STS-2.5 Quick Start Manual

STRECKEISEN
S I
EISMIC NSTRUMENTATION
Host box
1 2
7
CENTER
push once to wake up & monitor
push again to invoke action
3 W
V 3
4
5
FAULT STATUS
3
U
ON:
NOT CENTERED
BLINK: CENTERING
ON: SENSOR LOCKED
BLINK PATTERN:
2x: CASE TILT >0.5º
3x:
SENSOR ERROR
4x: HOSTBOX ERROR
5x: SOFTWARE ERROR
N
ON: READY
BLINK: BUSY
E
X-­‐ Axis
STS-2.5 Hostbox
STRECKEISEN
SEISMIC INSTRUMENTATION
SNo
101010
SNo
M ade i n S w itzerland
6
Step by step set up procedure for a correctly installed instrument:
Please consult the manual for placing and installing the instrument correctly.
Step 1: connecting the host box (HB) to power
After the HB has been connected to power, or following a time after any externally-initiated activity, the HB is asleep.
When it is asleep, the LED's entirely are extinguished.
Step 2: waking up the HB
Pressing either button on the HB will wake up the HB and display status.
The sensor was shipping in the locked state; therefore the HB will display the locked status (continuous RED) when
being installed for the first time after shipping.
Step 3: unlock the sensor
Press the LOCK/UNLOCK button and the sensor will be unlocked. This takes about 1s. The status LED (RED) will go
off and some or all of the three LED's indicating the sensor component's states (BLUE) go on.
Step 4: centering the sensor
Press the CENTER button. An autocenter will initiate. If successful, the status LED should be on (GREEN) and it's
ready to go. Unlike an STS-2, which may require several autocenter initiations, the STS-2.5 will typically accomplish
centering after one initiation.
Be patient, the centering process can take up to several minutes!
Step 5: It's operating
After ~60s the HB goes asleep again, all LED's go dark.
Be aware of the fact that the signal settling time after a perturbance (e.g. centering) is about 3 minutes. Temperature
equilibration after deployment may last hours and may cause apparent "offsets" on X, Y, and Z, which disappear when
temperatures are equilibrated and constant.
Step 6: prepare for shipping
To prepare for shipping, wake up the HB (if asleep), then press the lock/unlock button
until the RED status LED is steadily on. Power down and pack. Do not forget to cover the sensor connector with its
protection cap.
This fact sheet provides condensed information for field usage. For complete information please consult the manual.
STS-2.5 Field fact sheet V1.0 © Streckeisen GmbH, Switzerland. All rights reserved.
STS-2.5 Field fact sheet

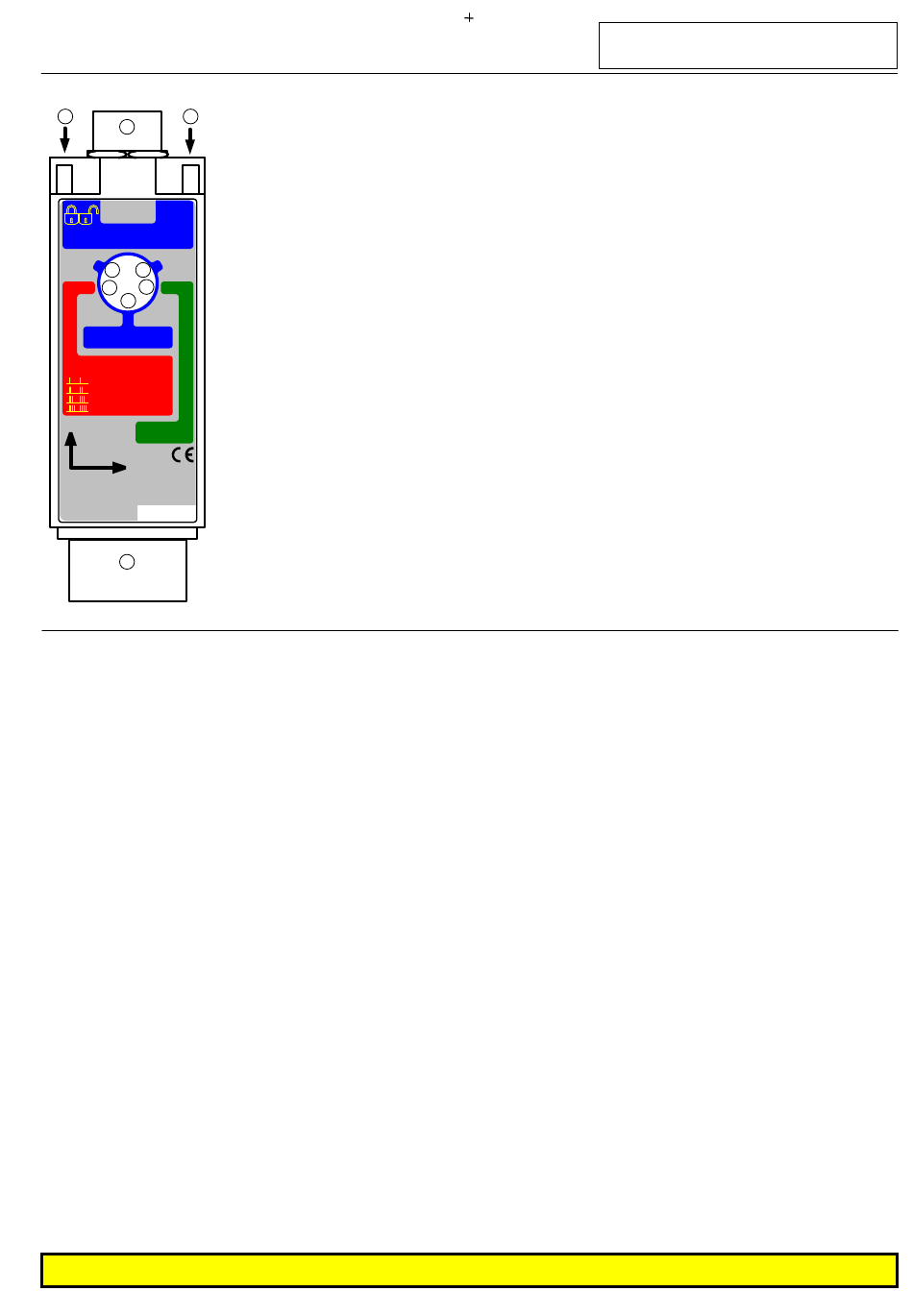

Normal mode: all lights dark. Pressing a
button once wakes up system and displays
state. To invoke CENTER or
LOCK/UNLOCK press second time. System
goes back to sleep after 60s idle.
 LOCK/UNLOCK button
LOCK or UNLOCK sensor.
‚ CENTER button
Do a complete centering.
ƒ UVW LEDs (blue)
Steady: corresponding sensor
component is beyond boom position
centering-limit of ±1.5V. Blinking:
centering in progress.
„ STATUS LED (green), var. blink pattern:
steady: system ok.
blinking: sensor busy
(centering, firmware download..).
Sensor
Serial No
… FAULT LED (red), var. blink pattern:
„ steady: sensor locked.
ð unlock with LOCK/UNLOCK button
„ 1 blink:
ðlevel the case with sensor feet and bubble
level.
„ 2 blinks: various sensor hardware errors
(No sensor connected, Power supply failure,
mechanical defects..).
ðUsually a lab inspection case.
„ 3 blinks: Host box hardware error.
„ 4 blinks: software error, host box or sensor
(Different software versions are normally
updated automatically and do not rise this
error)
† Connector digitizer side
24pol neg. Mating connector:
CA3106PG24-28P-A176
mating cable: KMI 110959
‡ Connector sensor side
mating cable:
STRECKEISEN 3-384.xx (xx=length)
Specifications and hostbox connector pinout see overleaf
case tilt exceeding 0.5º
