Shine Master4G-X User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Shine Master4G-X and is the answer not in the manual?

Questions and answers

Summary of Contents for Growatt Shine Master4G-X

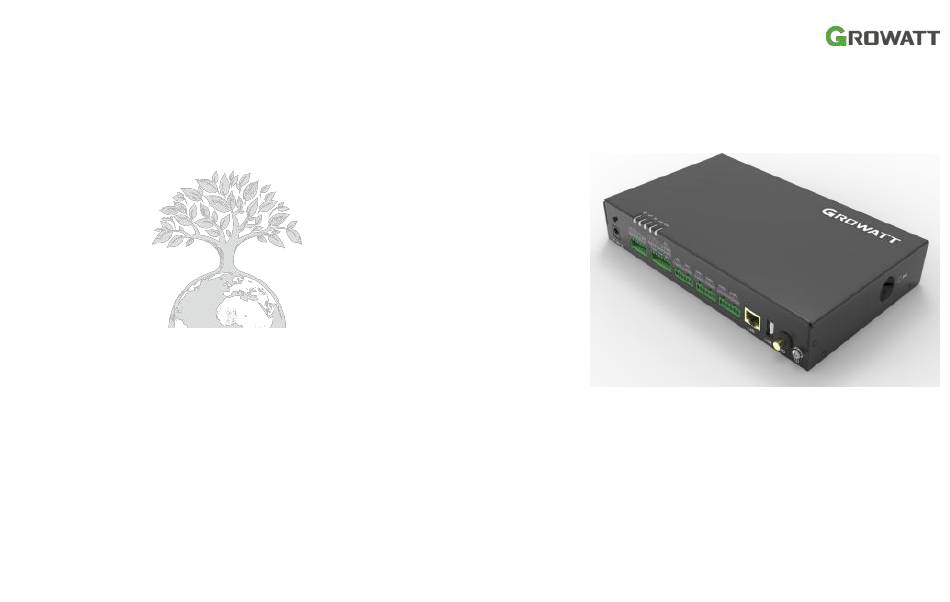

  • Page 1 Shine Master4G-X User Manual SHENZHEN GROWATT NEW ENERGY CO.,LTD 4-13/F,Building A,Sino-German(Europe) Industrial Park 400-931-3122 + 86 755 2747 2131 service@ ginverter. com W www.growatt.com...
  • Page 2 Content 1.1 Manual description 1.2 Copyright statement 1.3 Applicable personnel 1.4 Manual use 4. 1 install Shine Master4G-X 5.1 Cable preparation 5.2 Install the ground wire 5.3 Install RS485 communication line 5.4 Install the DI signal line 5.5 Install the power output line 5.6 Install the AI signal line...
  • Page 3 Dear users, thank you very much for using the Shine Master4G-X data logger (hereinafter referred to as Shine Master) developed and produced by Shenzhen Growatt New Energy Co ., Ltd. (hereinafter referred to as Growatt) . We sincerely hope that this product will meet your needs and expect you give more opinions on the performance and function of the product.
  • Page 4 Please read the user manual carefully before installing the device to understand product information and safety precautions. ordinal name ordinal name Insulated tools must be used when installing the equipment. For personal safety, please wear personal protective equipment. LED indicator light(POWER 、 SIM card socket(SIM)...
  • Page 5 Mounting installation instructions: Please choose a flat and firm interior wall for installation; When mounting the Shine Master4G-X on a wall, make sure that the cable connection area is facing downwards for easy cable connection and maintenance; It is recommended to use the self-tapping screws and expansion solenoids...
  • Page 6 The Shine Master4G-X can be connected to RS485 communication devices such as (optional) inverters, environmental monitors, and electricity meters through the RS485 port; Please make sure RS485+ is connected to RS485A of Shine Master4G-X, RS485 - DI signal line RS485B is connected to Shine Master4G-X.
  • Page 7 port logotype instruction port instruction RS4851 、 RS485A, RS485 differential line number + RS4852 、 RS4853 、 RS485B, RS485 Differential Signal- RS4854 Support passive dry contact signal input. Cascading connections instruction: It is recommended that the number of devices connected to each RS485 channel be less than 32;...
  • Page 8 The Shine Master4G-X can be connected to the Al signal of the environmental monitoring sensor through the Al port; It is recommended that the transmission distance should not exceed 10m; 1, 2, 3, 4 of Al port are connected to Al signal +, GND is connected to Al...
  • Page 9 Monthly SIM card traffic Traffic baseline requirements 2. Observe the LED indicator to check the running status of the Shine Master4G-X. inverter 10MB+4MB x Number of inverters Device performance data can be 3MB x Number of meters refreshed every 5 minutes...
  • Page 10 Shine Matser4G-X comes with DHCP disabled by default, and the default access IP is 192.168.0.254. Therefore, when using Shine Master4G-X for the first time, please connect Shine Master4G-X to the computer via a network cable to access the built-in page.
  • Page 11 Check and confirm that Shine Master4G-X has enabled DHCP function, connect the PC and Shine Master4G-X to the same router to make them in the same LAN. Check the network segment where the router is located. Taking the TP_LINK router as an example: Click win+R on the PC, enter cmd to enter the command line interface, and enter ipconfig to view the IP assigned to the PC by the router.
  • Page 12 Figure 7-13 Built-in Page Figure 7 - 11 Login Interface (1 )By clicking Start in the lower-left corner of the desktop, then Control Panel, and The username is "admin" and the password is "admin". After entering them, click finally Network and Sharing Center. on login.
  • Page 13 (2)Click on the "Change Adapter Settings" function key (5)In the popped-up Internet Protocol Version 4 Properties dialog box, click on in the top left corner of the toolbar; "Use the following IP address", then enter the IP address in the blank field below: 192.168.0.XX (XX can be any value between 2 and 253), subnet mask: 255.255.255.0, default gateway: 192.168.0.1, DNS server does not need to be set.
  • Page 14 Device Monitoring. On the left side of each tab interface in section B, there are submenus, where each item in the submenu has its own independent operation area. Clicking on Shine Master4G-X system information allows you to view "Product Information," "Device List," "Communication Information," and other information.
  • Page 15 Parameter settings for CAN communication The Shine Master4G-X comes with the default settings for four RS485 ports, labeled as RS485-1, RS485-2, RS485-3, and RS485-4, all set at a baud rate of 9600. In actual Set the domain name and upload interval of the...
  • Page 16 (1 )Refer to "7.1" "Built-in Page Login Method" to log in to the built-in page. The login account is "admin", and the password is "admin". Choose "RS485" in the list on the left side of "System Settings"; Figure 7-26 RS485 Baud Rate Settings (4 )Select the parity from the 'Parity' dropdown list, with options of 'None', 'Odd', and 'Even' available;...
  • Page 17 (6 )In the 'Data Bits' dropdown list, select the number of data bits, with (9 )After setting is completed, click 'Submit' and a prompt will appear saying options of 6 to 8 bits available.; 'Settings Successful'; Figure 7-32 Setting Successful Prompt (10)Check the 'RS485' on the left list of 'System Information' to see if the corresponding RS485 channel settings have been successfully changed;...
  • Page 18 (4 )In the "Protocol Type" drop-down list, select the Modbus protocol to use. Figure 7-37 CAN Communication Protocol Settings (5 )After setting up, click "Submit", and it will prompt "Settings Successful" Figure 7-38 Setting Successful Prompt Figure 7-34 CAN Settings (2 )Select the corresponding CAN channel in the 'Port' drop-down list, with two channels available: CAN1 and CAN2.
  • Page 19 The device address is divided into device address and system address. The device address is the communication address of the device itself on RS485, while the system address is a management address assigned by Shine Master4G-X to the device. The Figure 7-41 Inverter Addition Interface system address follows the priority principle, starting from the 01 bit for allocation, with devices added first receiving priority.
  • Page 20 Figure 7-44 Start Address (6 )Number of Addresses: Shine Master4G-X supports adding multiple addresses of the same type of devices in a continuous manner at once. For example, if there are four photovoltaic inverters to be monitored with addresses 1, 2, 3, and 4, then set the "Start Address"...
  • Page 21 "Channels," which includes four options: RS485-1, RS485-2, RS485-3, and RS485-4. Figure 7-52 Starting Address (6 )Number of Addresses: Shine Master4G-X supports adding multiple devices of the same type with consecutive addresses at once. For example, if you need to monitor four electric meters with addresses 1, 2, 3, and 4, you should input "1"...
  • Page 22 1 to 32; Figure 7-60 Start Address (6 )Address Quantity: Shine Master4G-X supports adding multiple addresses for devices of the same type in a continuous manner. For example, if there are four...
  • Page 23 (2 )Click "Add" to pop up the "Add Data" window; Figure 7-61 Number of Environmental Monitoring Addresses to Add (7 )After filling out the form, click "Submit." Once you receive the success prompt, select "System Information" from the first-level menu, then choose "Device List" from the second-level menu to check if the environmental monitor has been successfully added.
  • Page 24 1 - 32; Figure7- 68 start address (6 )Number of addresses :Shine Master4G-X can add multiple address with consecutive addresses.For example, 例如 :Assume that there are four PID device addresses that need to be monitored, and the addresses are 1, 2, 3, and 4 respectively.
  • Page 25 Shine Master4G-X interface can support display of device data information, including “inverter,meter,“Environmental Monitor ”、“ PID device ” ,and it can check the history data. Take “inverter” as an example ,check the work information of device.
  • Page 26 1、Connect to server via router “internet mode”to “enable”; (1 )First step,check whether Shine Master4G-X DHCP is on,refer to 7. 1. 1, enter interface by connecting computer directly& via cable ,login interface ,login account is“admin, password is “admin”,select “wired communication”in left list of “system setting”.
  • Page 27 "admin" and the password is "admin". Select "Server" in the list on the left of "System Settings", select "Open" and enter the corresponding Server port number, server domain name, such as server-cn.growatt.com/server.growatt.com, and data upload time interval;...
  • Page 28: Technical Specifications
