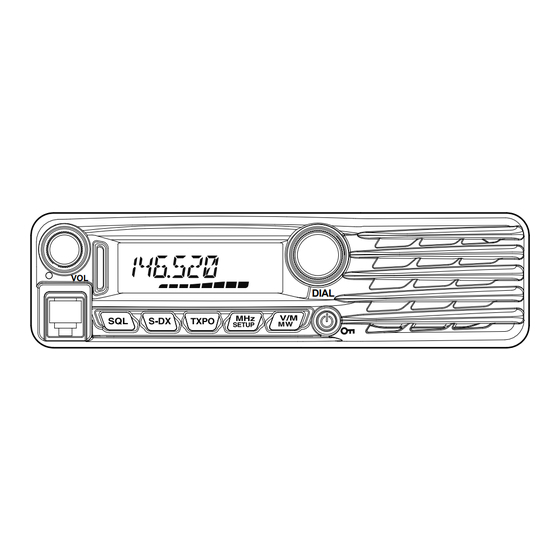

FT-3165R
FT-3165E
Advance Manual
VHF FM TRANSCEIVER
VOL
DIAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FT-3165R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yaesu FT-3165R

Summary of Contents for Yaesu FT-3165R

  • Page 1 FT-3165R FT-3165E Advance Manual VHF FM TRANSCEIVER DIAL...

  • Page 2: Table Of Contents

    Contents Basic Operation ......................3 Microphone Gain Setting ....................3 RF Squelch ........................3 Advanced Operation ...................... 4 Split Tone Operation ....................... 4 Tone Search ........................5 DCS Search ........................6 EPCS (Enhanced Paging & Code Squelch) Operation ..........7 Storing CTCSS Tone Pairs for EPCS Operation ............

  • Page 3: Basic Operation

    Basic Operation Microphone Gain Setting The microphone gain has been programmed at the factory to a level that should be satisfactory for the supplied SSM-85D Microphone. If an after-market microphone is used, you may wish to set a different Mic Gain level. 1.

  • Page 4: Advanced Operation

    Advanced Operation Split Tone Operation The FT-3165R/E can be configured to operate in a “Split Tone” system via the Setup menu, to facilitate operation on repeaters using a mix of both CTCSS and DCS control. 1. Press and hold in the key for one second to enter the Set mode.

  • Page 5: Tone Search

    Advanced Operation Tone Search When the CTCSS tone being transmitted by another station is not known, you can tune the radio to the incoming signal and activate tone scan to search for and identify the tone being used. To scan for the tone in use: 1.

  • Page 6: Dcs Search

    Advanced Operation DCS Search When the DCS code being transmitted by another station is not known, you can tune the radio to the incoming signal and activate DCS code scan to search for and identify the DCS code being used. To scan for the DCS in use: 1.

  • Page 7: Epcs (Enhanced Paging & Code Squelch) Operation

    Note: The FT-3165R/E does not recognize the order of the 1st tone and the 2nd tone. In other words, for example, the FT-3165R/E considers both CTCSS pairs “05, 47”...

  • Page 8: Activating The Enhanced Paging & Code Squelch System

    Advanced Operation Activating the Enhanced Paging & Code Squelch System 1. Press and hold in the key for one second to enter the Set mode. DIAL 2. Rotate the DIAL knob to select “28 SQL TYPE”. 3. Press the key, and then rotate the DIAL knob to select “PAGER”.

  • Page 9: Dtmf Operation

    DTMF Operation DTMF tones (Dual Tone Multi Frequencies) are the tones you hear when dialing from a telephone keypad. The FT-3165R/E transceiver can transmit the DTMF codes by using the keys on the microphone or recalling registered number strings from memories.

  • Page 10: Registering A Dtmf Code

    Advanced Operation Registering a DTMF code 1. Press and hold in the key for one second to enter the Set mode. DIAL 2. Rotate the DIAL knob to select “9 DT EDIT”. 3. Press the key momentarily, then rotate the DIAL knob to select the desired memory channel (C0 to C9) to register the DTMF code.

  • Page 11: Transmitting The Registered Dtmf Code

    Advanced Operation Transmitting the registered DTMF code 1. Press and hold in the key for one second to enter the Set mode. DIAL 2. Rotate the DIAL knob to select “8 DT AUTO”. 3. Press the key momentarily, and then rotate the DIAL knob to select “AUTO”.

  • Page 12: Setting Dtmf Autodialer Tx Delay Time

    Advanced Operation Setting DTMF Autodialer TX delay time A longer delay may be set between the time the transmitter is keyed and the first DTMF digit is sent: 1. Press and hold in the key for one second to enter the Set mode. DIAL 2.

  • Page 13: Memory Operation

    Memory Operation Split Memory A separate transmit frequency may be registered to a memory channel to which a receive frequency has already been registered. 1. In the VFO mode, select the transmit frequency to be registered. 2. Press and hold the key for one second.

  • Page 14: Naming A Memory Channel

    Memory Operation Naming a Memory Channel You may wish to append an alphanumeric “Tag” (label) to each memory, to aid in recollection of the channel’s use (such as club name, etc.). 1. Recall the memory channel on which you wish to append a label. 2.

  • Page 15: Scanning

    Scanning Scan Resume Options Select one of the three receiving operations to be performed after the scanning stops. (1) Restart scanning after receiving the frequency for the set amount of time. Select from 2.0 to 10.0 seconds (0.5 step). (2) Continue receiving the frequency until the signal disappears, and then restart scan- ning 2 seconds after the signal disappears (BUSY).

  • Page 16: Memory Skip Scanning

    Scanning Memory Skip Scanning When some memory channels are continuously active, you may wish to skip them during scanning, but still have them available for manual selection. To mask a memory to be skipped (only) during scanning, use the following procedure: 1.

  • Page 17: Preferential Memory Scan

    Scanning Preferential Memory Scan The FT-3165R/E also allows setting up a “Preferential Scan List” of channels, which you can “flag” within the memory system. The flagged channels are designated by an “ ” icon when they are selected, one by one, for the Preferential Scan List.

  • Page 18: Programmable Memory Scan (Pms)

    Scanning Programmable Memory Scan (PMS) The FT-3165R/E can be set to tune or scan only the frequencies between user-defined lower and band limits. Example: Set up a PMS channel by registering a lower frequency of 144.300MHz, and an upper frequency of 145.000MHz to the L1/U1 memory channels.

  • Page 19: Scanning The Programmable Memory Channels

    SSM-85D Microphone. Band Edge Beeper The FT-3165R/E will automatically “beep” when the receive band edge is encountered during scanning (either in standard VFO scanning or during PMS operation). Additionally, the band edge beep feature may be enabled to sound when the band edge frequency is reached while tuning the VFO, using the DIAL knob.

  • Page 20: Priority Revert Mode

    Scanning Priority Revert Mode During Priority channel operation (Dual Watch), a special feature is available which will allow you to move to the Priority Channel instantly, without waiting for activity to appear on the Priority Channel. When this feature is enabled, and priority monitoring is engaged, just press the microphone PTT switch.

  • Page 21: Installing The Signal Processing Unit "Spu-1

    Installing the Signal Processing Unit “SPU-1” Caution! Avoid touching the electronic components with your hands as the semiconductors may be damaged by static electricity. 1. Turn the transceiver OFF. Also turn OFF the external DC power supply. 2. Disconnect all the cables and the microphone from the transceiver. 3.

  • Page 22: Clone

    Clone The FT-3165R/E includes a convenient “Clone” feature, which allows the memory and configuration data from one transceiver to be transferred to another FT-3165R/E. This can be particularly useful when configuring a number of transceivers for a public service operation.

  • Page 23: Setup (Menu) Mode

    Setup (Menu) Mode The FT-3165R/E Setup (Menu) mode, already described in parts of many previous chapters, is easy to activate and setup. The Menus may be used to configure many of transceiver parameters, some of which have not been detailed previously. Use the following procedure to activate the Setup (Menu) mode: 1.
  • Page 24 Setup (Menu) Mode Menu Item Function Available Values Default SQL OFF Programming the function assigned to 16: PGM P1 SQL OFF Microphone [ P1 ] key. HOME WX CH CD SRCH Programming the function assigned to 17: PGM P2 HOME Microphone [ P2 ] key.
  • Page 25 Setup (Menu) Mode Menu Item Function Available Values Default 38: TOT Sets the Time-Out Timer. 0.5 to 10.0 (MIN) / OFF ø Indicates the current temperature inside 39: TEMP the transceiver. 40: VOLT Indicates the DC Supply Voltage. 41: VER DISP Displays the transceiver software version CPU x.xx Reduction of the Microphone Gain/Devia-...

  • Page 26: Menu Selection Details

    Menu Selection Details 1 APO Function: Enables/Disables the Automatic Power Off feature. Available Values: 0.5 H to 12.0 H (0.5 H/step) / OFF Default: OFF 2 BCLO Function: Enables/Disables the Busy Channel Lock-Out feature. Available Values: ON / OFF Default: OFF 3 BEEP KEY Function: Enables/Disables the key beeper.
  • Page 27 Menu Selection Details 9 DT EDIT Function: Loading of the DTMF Autodialer Memories. See page 10 for details. 10 DT DELAY Function: Setting of the DTMF Autodialer’s TX Delay Time. Available Values: 50 / 250 / 450 / 750 / 1000 ms Default: 450 ms 11 DT SPEED Function: Setting of the DTMF Autodialer Sending Speed.
  • Page 28 Menu Selection Details 5. To correct a mistake, press the key to backspace the cursor; now re-enter the correct letter/number. 6. When the desired opening message is completed, press the key momentarily to confirm the message, then press and hold in the key for one second to save the settings and exit to normal operation.
  • Page 29 Menu Selection Details 22 RPT SFT Function: Sets the Repeater Shift direction. Available Values: - RPT / + RPT / SIMPLEX Default: SIMPLEX 23 RPT ARS Function: Activates/Deactivates the Automatic Repeater Shift feature.. Available Values: ON / OFF Default: ON 24 RPT FREQ Function: Sets the magnitude of the Repeater Shift.
  • Page 30 Menu Selection Details DCS: Digital Coded Encoder/Decoder RV TONE: Reverse CTCSS Decoder (Mutes receiver when matching tone is received) PAGER: Enhanced Paging & Code Squelch Note: See also Set Mode Item “32 SQL EXP” regarding additional selections available during “Split Tone” operation. 29 TONE FRQ Function: Setting of the CTCSS Tone Frequency.
  • Page 31 Menu Selection Details 33 SQL RF Function: Adjusts the RF Squelch threshold level. Available Values: S1 - S8 / OFF Default: OFF 34 TS MUTE Function: Enables/Disables the receiver audio output while the Tone Search or DCS Search Scanner is activated. Available Values: ON / OFF Default: ON 35 TS SPEED...
  • Page 32 Menu Selection Details 43 WX ALERT Function: Enables/Disables the Weather Alert feature. Available Values: ON / OFF Default: OFF The weather alert will be received OFF: The weather alert will not be received 44 WX VOL Function: Selects the audio output level of the Weather Alert. Available Values: NOR VOL / MAX VOL Default: NOR VOL...
  • Page 33 Copyright 2024 YAESU MUSEN CO., LTD. All rights reserved. No portion of this manual may be reproduced without the permission of YAESU MUSEN CO., LTD. YAESU MUSEN CO., LTD. Omori Bellport Building D-3F 6-26-3 Minami-Oi, Shinagawa-ku, Tokyo, 140-0013, Japan YAESU USA 6125 Phyllis Drive, Cypress, CA 90630, U.S.A.
