- Page 1 USER GUIDE iFROST 95L FRIDGE / FREEZER POWERED BY...
-
Page 2: Table Of Contents
CONTENTS Overview Key Features Product Overview Getting Started Powering the Fridge Operation Power On & Off Temperature Set Settings Emergency Override Fault Codes Troubleshooting Specifications Maintenance Safety Precautions Contact Us Back Page... -
Page 3: Overview

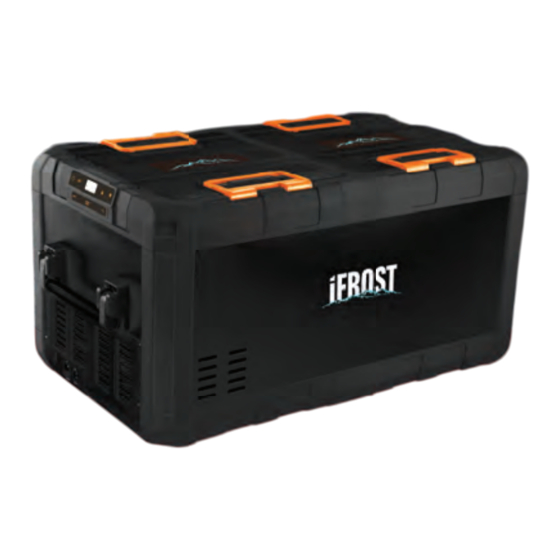

OVERVIEW Introducing the iFROST 95L Lithium Portable Dual Zone Fridge/Freezer, your ultimate solution for keeping food and drinks cold without relying on melting ice. Its thick insulation maximises efficiency and extends runtime. For longer adventures, you can power the fridge using the included 12V adaptor, in combination with a power station, dual battery system, or by connecting to AC power. -
Page 4: Product Overview
PRODUCT OVERVIEW: LID LATCHES HANDLE DC INPUT BASKET AC INPUT DISPLAY AIR VENT... - Page 5 12/24V 100-240V AC 240V INPUT PORT DC 12V/24V INPUT PORT 888 888 888 8 MAIN POWER CONTROL INCREASE BUTTON SETTINGS BUTTON DECREASE BUTTON L SECTION TEMPERATURE FAULT INDICATOR L SECTION COMPRESSOR STATUS INPUT VOLTAGE INDICATOR R SECTION TEMPERATURE CUT OFF VOLTAGE INDICATOR R SECTION COMPRESSOR STATUS...
-
Page 6: Getting Started
GETTING STARTED Upon receiving your fridge / freezer, ensure you have all the included adaptors and they are intact. Place the unit in a dry area away from water, heat, or direct sunlight. The cooling compartment features a dual zone section, with the display indicating the correct temperature of either compartments midpoint. -
Page 7: Powering The Fridge
POWERING THE FRIDGE: There are two different ways to power your fridge, each outlined below: AC Adaptor When you want to run the fridge from mains power, plug the AC 240V adaptor and cable into the fridge AC Input port located at the end of the fridge then connect the other end to a suitable AC 240V power source. -
Page 8: Operation
OPERATION POWER ON & OFF: Long press the button to turn the fridge on or off. TEMPERATURE SET: Press the button and then use the buttons to set the desired temperature of the left section, ranging from -18°C ~ 10°C. Press button again to set the desired temperature of the right section. -
Page 9: Emergency Override
In the event of a digital failure where you cannot set the temperature, switch to Emergency Override. This will allow the fridge / freezer to continue operating until you can contact the iTechworld Service Center. WARNING: When using Emergency Override mode, the compressor will run continuously without allowing you to adjust the temperature. -
Page 10: Fault Codes
Condenser fan sensor fault Isolate the fridge for 30 minutes, then reconnect the input source. If you are still experiencing issues, please contact the iTechworld service centre. Compressor pressure sensor fault Compressor speed fault Reduce the contents of the fridge and clean the vents, then move the fridge to an area with a lower ambient temperature. -
Page 11: Troubleshooting
TROUBLESHOOTING If your fridge is not running, please test your power source input. To troubleshoot this, connect the fridge to at least 2 different power sources for a minimum of 30 minutes each, such as a AC 240V wall plug and a vehicles DC 12V power. If the fridge works correctly when connected to one of these sources, the issue is likely not the fridge. -
Page 12: Specifications
12V Average Amp Draw 1.5A 12V Max Amp Draw 5.6A 24A Average Amp Draw 0.8A 24V Max Amp Draw 2.8A Insulation Cyclopentane Cooling Range -18°C~10°C The iFROST 95L Fridge / Freezer complies with CE, EMC 50498 and EESS standard including all Australian deviations. -
Page 13: Maintenance
Dry the fridge completely after washing SAFETY PRECAUTIONS For safe operation and optimal performance, the iFROST 95L Fridge / Freezer must be operated correctly. Please carefully read, understand, and follow all instructions and guidelines in this user guide. Failure to follow these instructions may result in damage to the unit, property, death, or serious injury. - Page 14 WARNING: People with physical disabilities, visual, sensory, or mental impairments (including children) should not use this fridge. Children should be supervised to ensure they do not play with the fridge. WARNING: Please use the recommended and included cables specified in this user guide. WARNING: The fridge is not waterproof, do not expose the unit to moisture or precipitation.
- Page 15 DANGER: Avoid handling cables or plugs with wet hands or if any part of your body is in contact with water. When operating the fridge on-board a boat using a AC 220V – 240V power source, ensure the connection has an RCD. Failure to do so may result in a risk of electrical shock, fire, death, or serious injury.
-
Page 16: Contact Us
When it comes to energy storage and creation at iTechworld, we take pride in being one of the biggest names in the industry. Based in Australia, we are a family-owned and operated business. With many more innovative products on the horizon we are committed to constantly raising the bar to provide bigger and better benefi ts to all our customers Australia-wide.
