- Page 1 USER GUIDE iFROST 40L FRIDGE / FREEZER POWERED BY...
-
Page 2: Table Of Contents
CONTENTS Overview Key Features Product Overview Getting Started Powering the Fridge Operation Auto Locking Display Power On & Off Temperature Set Settings Fault Codes Troubleshooting Specifications Maintenance Safety Precautions Contact Us Back Page... -
Page 3: Overview

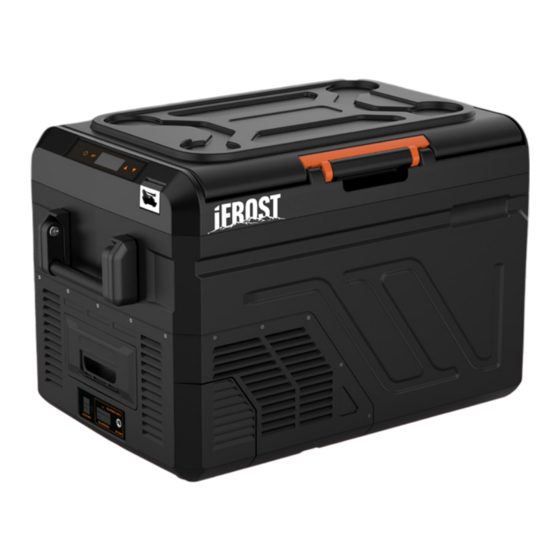

OVERVIEW Introducing the iFROST 40L Lithium Portable Single Zone Fridge/Freezer, your ultimate solution for keeping food and drinks cold without relying on melting ice. Its thick insulation maximises efficiency and extends unplugged runtime if you are using the lithium battery (sold separately). For longer adventures, you can recharge using a solar panel, power station, dual battery system, or by connecting to AC/DC power. -
Page 4: Product Overview
PRODUCT OVERVIEW: LID LATCHES BATTERY* COMPARTMENT DC INPUT BOTTLE OPENER AC INPUT DISPLAY AIR VENT HANDLE BASKET *LITHIUM BATTERY IS SOLD SEPARATELY... -
Page 5: Temperature Display
SOLAR INPUT PORTS 12V / 24V INPUT 50A ANDERSON DC5521 SOLAR INPUT ONLY AC 240V INPUT PORT 50A ANDERSON INPUT PORT DC 12V/24V INPUT PORT 5.5MM INPUT PORT MAIN POWER CONTROL TEMPERATURE UNIT CONTROL SETTINGS BUTTON INPUT VOLTAGE INDICATOR TEMPERATURE DISPLAY DISPLAY ECO / MAX INDICATOR INCREASE BUTTON... -
Page 6: Getting Started
GETTING STARTED Upon receiving your fridge / freezer, ensure you have all the included adapters and they are intact. Place the unit in a dry area away from water, heat, or direct sunlight. For optimal performance, if you purchased the internal mounted lithium battery (sold separately), it is recommended to charge the unit as soon as possible. -
Page 7: Powering The Fridge
The fridge will then need to be turned on via the display. The DC 12V / 24V adapter can power the fridge and charge the lithium battery (sold separately). Examples of a stable DC power source include iTechworld power stations, a dual battery system, or a vehicle cigarette socket. -
Page 8: Operation
OPERATION AUTO LOCKING DISPLAY: The display will automatically lock and dim itself after 30 seconds to prevent accidental changes. To unlock, hold the button for 3 seconds or until the lock icon disappears. POWER ON & OFF: Long press the button to turn the fridge on or off. - Page 9 Battery Monitor There are 3 voltage cut out settings. SETTING Turn OFF Turn ON Turn OFF Turn ON Low (L) <9.6V >11.2V <21.4V >23V Medium (M) <10.4V >11.7V <22.8V >24.2V High (H) <11.1V >12.4V <24.3V >25.7V • When connected to a car battery , we suggest M •...
-
Page 10: Fault Codes
Compressor pressure reconnect the input source. If you are still sensor fault experiencing issues, please contact the iTechworld service centre. Compressor sensor fault Isolate the fridge for 30 minutes, ensure Over temperature it is not in direct sunlight. If you are still... -
Page 11: Troubleshooting
TROUBLESHOOTING If your fridge is not running, please test your power source input. To troubleshoot this, connect the fridge to at least 2 different power sources for a minimum of 30 minutes each, such as a AC 240V wall plug and a vehicles DC 12V power. If the fridge works correctly when connected to one of these sources, the issue is likely not the fridge. -
Page 12: Specifications
24V Max Amp Draw 2.1A Insulation PU Foam Cooling Range -22°C~24°C Optional Battery Battery Type Lithium-ion Nominal Voltage 11.1V Nominal Capacity 20.8Ah Rated Capacity 230Wh The iFROST 40L Fridge / Freezer complies with CE, EMC 50498 and EESS standard including all Australian deviations. -
Page 13: Maintenance
Dry the fridge completely after washing SAFETY PRECAUTIONS For safe operation and optimal performance, the iFROST 40L Fridge / Freezer must be operated correctly. Please carefully read, understand, and follow all instructions and guidelines in this user guide. Failure to follow these instructions may result in damage to the unit, property, death, or serious injury. - Page 14 Do not disassemble or modify the fridge, doing so may result in a risk of electrical shock, fire, death, or serious injury. DANGER: This fridge is only suitable for use with the removable iTechworld lithium fridge battery (sold separately) listed in this user guide.
-
Page 15: Regular Inspections
Do not damage any of the power cables connected to the fridge, this includes kinking the cables, wrapping the cable around the fridge, or pulling the cable around sharp edges. REGULAR INSPECTIONS: Regularly check the fridge, iTechworld lithium fridge battery (sold separately), and all connections for signs of damage. -
Page 16: Contact Us
When it comes to energy storage and creation at iTechworld, we take pride in being one of the biggest names in the industry. Based in Australia, we are a family-owned and operated business. With many more innovative products on the horizon we are committed to constantly raising the bar to provide bigger and better benefits to all our customers Australia-wide.
