HR3.5

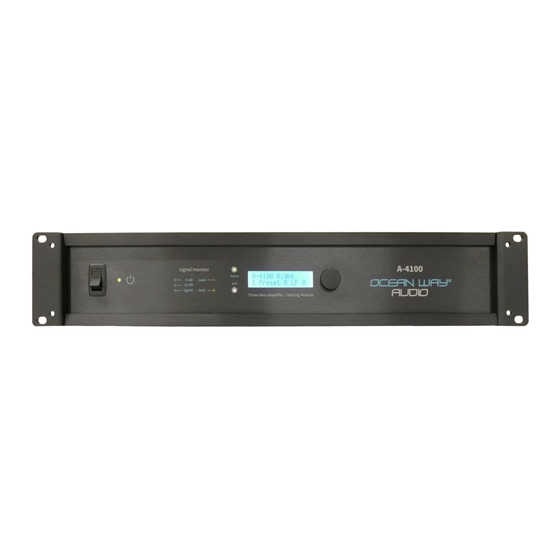

/ A-4100 System

First and foremost it is critical to match the A-4100 to the correct speaker, Left channel to the Left speaker and Right

channel to the Right speaker. The A-4100 has been tuned and aligned to the serial number specific left and right

speakers. This will insure precise sonics and imaging.

Preset selection and input level changes are controlled by the Menu button and the

Select / Enter knob

Turning the Select knob before depressing the Menu button will change the input level gain (displayed in the LCD

screen). Be careful not to accidentally change this sensitivity. The factory setting is optimized for amplifiers with 26db of

gain. If you increase the gain accidentally you may risk damaging the system.

Need help?

Do you have a question about the HR3.5 FL and is the answer not in the manual?

Page 1 HR3.5 / A-4100 System First and foremost it is critical to match the A-4100 to the correct speaker, Left channel to the Left speaker and Right channel to the Right speaker. The A-4100 has been tuned and aligned to the serial number specific left and right speakers.
Page 2 If you would like more or less bass you can scroll through presets to find what suits the room and your tastes. To change presets follow these instructions. • Press the Menu button. • Turn the Select knob to the desired preset. •...
Page 3 There are 6 presets programmed Presets 1 through 3 = LF set with 75Hz L-R high pass filter to work in conjunction with our 18” subwoofer The system is shipped set to preset #1 with HF flat. Preset 2 sets HF to +.75db boost. Preset 3 sets HF to -.75db cut. To change presets follow these instructions.
Page 5 Height recommendation would place the speaker approximately 18” to 23” off the ground. This would make the top of a console meter bridge in the middle of the top 12” woofer. www.oceanwayaudio.com 2211 N. San Fernando Blvd, Burbank, CA. 91504 (818) 847-8757...
