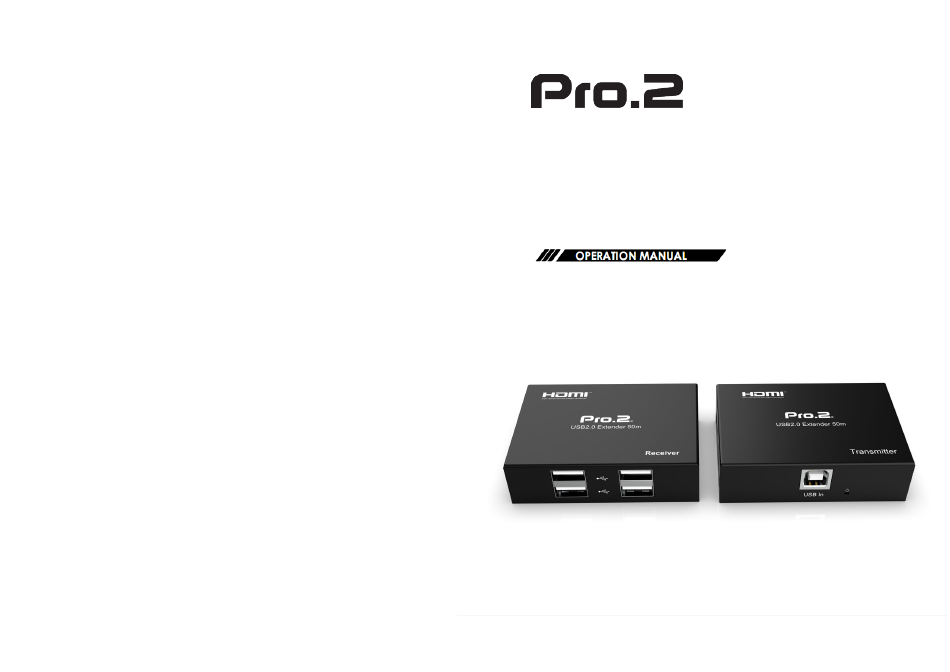

- Page 1 50m USB2.0 Extender over single Cat5e/6 cable Model: USBCAT14V2...
- Page 2 Operating Instructions Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. FEATURES Each set includes one transmitter and one receiver. ...
- Page 3 Operating Instructions TABLE OF CONTENTS Specifications Package Contents Panel Descriptions Connecting and Operating Typical Application Maintenance Product Service Warranty SPECIFICATIONS Operating Temperature Range 0℃ to +40℃ (+32℉ to +104℉) Operating Humidity Range 5 to 90%RH (No Condensation) USB port at transmitter 1 x USB Type B USB port at receiver 4 x USB2.0 Type A...
- Page 4 Operating Instructions Operating Instructions PANEL DESCRIPTIONS CONNECTING AND OPERATING 1) Connect the data input source (such as PC host etc) into transmitter over USB cable. Transmitter Panel 2) Connect the output of transmitter and input of receiver over CAT5E or CAT6 cable.
