User Guide
Dot Pad 320 (DPA320A)
Dot Incorporation
08507
146, Gasan Digital 1-ro, Geumcheon-gu, Seoul, Korea
Room 403 (Daeryung Techno Town 22nd)
Phone Number: +82) 2-864-1113
Fax: +82) 2-864-1989
Email: inquiry@dotincorp.com
Homepage: www.dotincorp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pad 320 and is the answer not in the manual?

Questions and answers

Related Manuals for DOT Pad 320

Summary of Contents for DOT Pad 320

  • Page 1 User Guide Dot Pad 320 (DPA320A) Dot Incorporation 08507 146, Gasan Digital 1-ro, Geumcheon-gu, Seoul, Korea Room 403 (Daeryung Techno Town 22nd) Phone Number: +82) 2-864-1113 Fax: +82) 2-864-1989 Email: inquiry@dotincorp.com Homepage: www.dotincorp.com...

  • Page 2: Table Of Contents

    2. Basic Functions ..................................7 2.1. Understanding Dot Pad 320 LED Signals ......................7 2.2. Understanding Device Information Through the Dot Pad 320’s Vibration Signals ......... 7 2.3. Checking the Battery Level ............................7 2.4. Checking the Charging Status ............................ 8 3.

  • Page 3: About The Dot Pad 320 (Dpa320A)

    Warranty Period 2 years 1.2. Dot Pad 320 Appearance When the Dot Pad 320 is removed from the box and placed on the desk, it is in the correct position when the square body is slightly inclined away from the user.

  • Page 4: Dot Pad 320 Top View

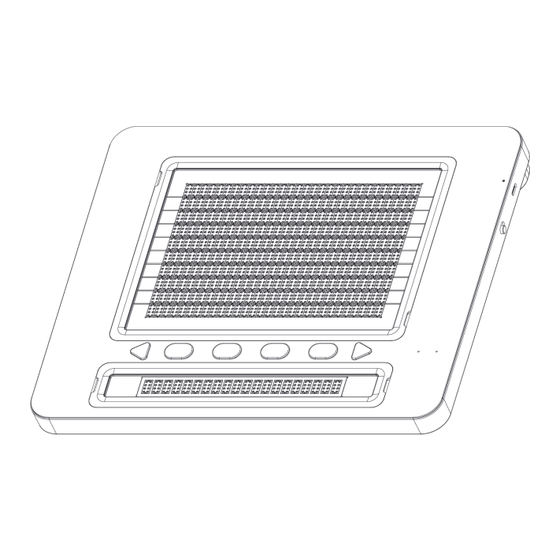

    1.2.1 Dot Pad 320 Top View When the Dot Pad 320 is correctly oriented, the upper surface of the Dot Pad 320 consists of the following parts from nearest to farthest from the user: Braille Text Display Area: 20 braille cells are placed at standard braille intervals within a horizontally long rectangular frame, allowing the expression of 20 alphabets simultaneously.

  • Page 5: Dot Pad 320 Right Side

    1.2.3. Dot Pad 320 Left Side On the left side of the Dot Pad 320 is a USB C type port specifically for data transfer. You can use the Dot Canvas Web, a web service provided by Dot Inc. by connecting your PC to the Dot Pad 320 with a USB C...

  • Page 6: Dot Pad 320 Bottom Surface

    The bottom surface of the Dot Pad 320 has multiple screws that can be loosened when replacing the protective skin over the braille cells or replacing the battery of the Dot Pad 320. The batteries provided in the Dot Pad 320 are not detachable, so when replacing the batteries, be sure to replace them through Dot Inc. or a company authorized by Dot Inc.

  • Page 7: Software Specifications

    Size (length x width x 273.5(W) x 228.5(D) x 31.0(H) height, mm) Exterior Specifications Weight (g) 1,200 g Function Keys Function Key 4ea Panning Keys Left, Right Keyboard and Buttons Power Switch Power ON/OFF 1ea Keyboard None USB-C (left) Data USB Interface USB-C (right) Power and Charging...

  • Page 8: Basic Functions

    2.3. Checking the Battery Level To check the battery level of the Dot Pad 320, you can press and hold the previous and next panning keys at the same time for at least 1.5 seconds while powered on, and then release them. The levels for displaying the remaining battery are divided into 5 levels and are notified by vibration feedback.

  • Page 9: Checking The Charging Status

    Dot Pad 320 is charging. Please take note that there will be no vibration feedback if you plug in the charger while the device is turned off. ※If you have plugged the charging cable in while the device is turned off, please turn the Dot Pad 320 on to check the charging status.

  • Page 10: Starting Dot Canvas App

    When the connection is successful, the Dot Pad 320 will vibrate twice. 3.3.1. Troubleshooting Connection Issues If the Dot Pad 320 you wish to connect to does not appear in the connection list, please check 3 things below. 1) Make sure the Dot Pad 320 is turned on.

  • Page 11: Disconnecting The Dot Pad 320

    The graphics created through Dot Canvas App are displayed on the 300-cell part of the Dot Pad 320 in the form of tactile graphics, and the text descriptions are displayed in braille on the 20-cell part of the Dot Pad 320.
  • Page 12 Pages Print Displays a pop-up where you can create Prints the picture you worked on to Dot or delete a page and add a page Pad 320. description. The bottom of the pop-up...

  • Page 13: My Drawings

    Open: Run the selected file. When the file runs, the picture on the first page and the description of the picture are displayed on the Dot Pad 320. Users can go to the previous/next page and modify the picture and description by clicking the [Modify] button.
  • Page 14 F1 button: Move to the previous page (300 cells) 3) Dot Pad 320 Shortcut buttons for drawing tools When connecting the Dot Pad 320 to the Dot Canvas app, users can easily use various functions by using the Dot Pad 320 buttons.

  • Page 15: Using Dot Canvas Web

    4.1 Introducing Dot Canvas Web The Dot Canvas Web is a Dot Pad 320 optimized web graphic editing tool where users can create, save, and share digital tactile graphics. With the tools available, non-experts can also create and save their own tactile...

  • Page 16: Screen Layout Of Dot Canvas Web

    When the Dot Pad 320 is successfully connected, the Dot Pad 320 vibrates twice. 4.3.1 Troubleshooting Connection Issues If the Dot Pad 320 that you want to connect is not in the list of available devices, please check the following. 1) Check the power status of the Dot Pad 320: If the power of the Dot Pad 320 is turned off, turn it on and click [Search].

  • Page 17: Disconnecting The Dot Pad 320

    Scroll all the way down and select the Dot Pad 320 that is connected and go to [More Information] Click [Forget this Device] and unpair the Dot Pad 320. 4.3.2 Disconnecting the Dot Pad 320 Go into the Dot Pad 320 Connect pop-up screen and select [Disconnect]. The Dot Pad 320 will be disconnected with two long vibrations.
  • Page 18 Square/Rectangle Line • Draw squares/rectangles • Draw straight lines, diagonal lines, • Press [Shift] and drag to create a etc. • Press [Shift] while drawing with square this tool to create a straight line Circle Triangle • Draw circles/ovals • Draw triangles, right triangles, etc. •...

  • Page 19: Dot Cloud

    Dot Pad 320. 4.4.2. Dot Cloud Users can save their created contents onto the Dot Drive or share it with other people. Users can also print various tactile graphics onto the Dot Pad 320 that are saved on the Public Drive.

  • Page 20: Updating Firmware Through Dot Support

    Select the Dot Support tab in Dot Canvas (Web). Connect the Dot Pad 320 to your PC via the USB C port on the left side of your Dot Pad 320. After connecting, turn on the Dot Pad 320 and press the Connect Device button on the Dot Support page.

  • Page 21: Handling And Safety Precautions

    The Dot Pad 320 has a built-in magnet. Do not place it close to other magnetic products or metals. There is a risk of damage to the product. Use the Dot Pad 320 on a table away from the body and when used in a dusty area, foreign objects may get inside and interfere with the device’s operation.
  • Page 22 2. Do not use the Dot Pad 320 in prohibited areas. Do not use the Dot Pad 320 in areas where use of the product is prohibited, such as in airplanes or hospitals. Electronics and communication products can be affected by electromagnetic waves.

  • Page 23: Customer Support

    12. Keep the Dot Pad 320 in a safe place for storage. When not in use for a long time, disconnect the charger from the Dot Pad 320 and store it in a safe place. When storing the charger, be careful not to severely fold or twist the USB cable. If the USB cable is stored or used with an excessive fold or twist, the silicone coating of the cable can be stripped off or the cable may break and cause a failure or accident.

  • Page 24: Fcc (Federal Communications Commission)

    1. KC: Korea Certification ※ The wireless equipment in use may cause radio interference. ※ The manufacturer and installer cannot provide services related to human safety as the wireless equipment may cause radio interference. 2. FCC: Federal Communications Commission FCC Class A This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 25 The information contained in this documentation is subject to change without notice. In no event will Dot Inc. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even when advised of the possibility of such damages.
