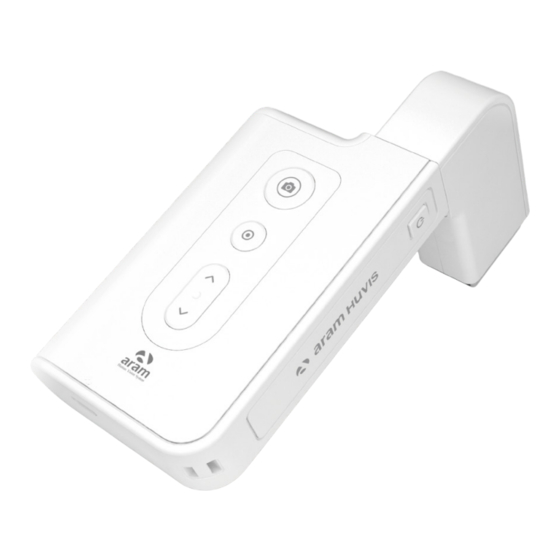

aram huvis ASI-202 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
-202
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASI-202 and is the answer not in the manual?

Questions and answers

Related Manuals for aram huvis ASI-202

Summary of Contents for aram huvis ASI-202

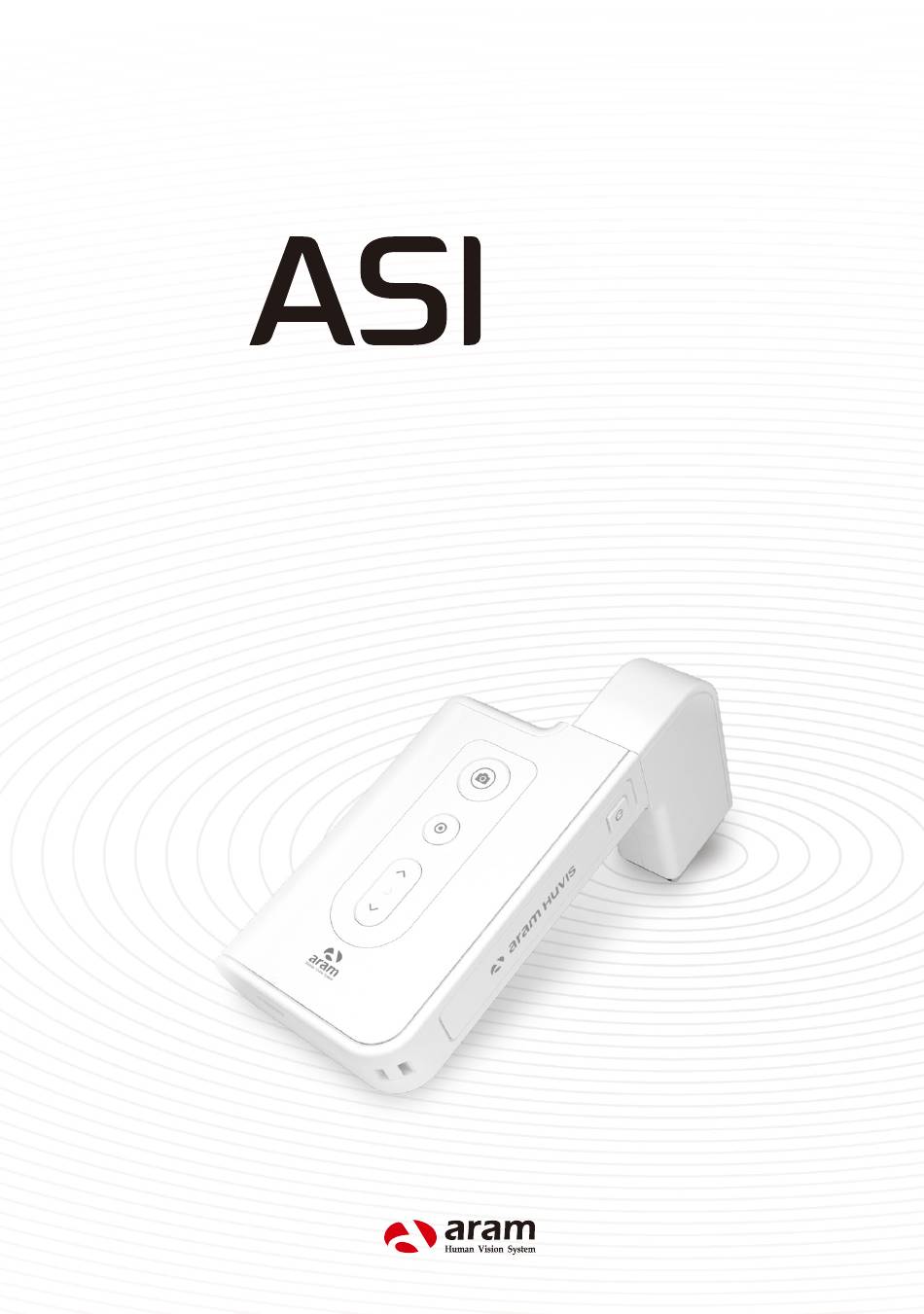

  • Page 1 -202 User Manual...
  • Page 2 Contents A. Components B. H/W Parts ⅰ. Both Sides ⅱ. Settings ⅲ. Battery / Light Functions C. System Settings ⅰ . Download & Install ⅱ. How to connect with the program D. Program Settings ⅰ . Device Certification E. Application ⅰ...

  • Page 3: Cleaning Cloth

    Components Main body with hair lens (ASI202) Cradle Battery Charger Cleaning cloth Manual USB cable A. Components...
  • Page 4 H/W Parts Both Sides LED light & lens Capture Start, Analysis, Result Mode up Mode down Power on & o Battery cover USB & charger connector B. H/W Parts - Both Sides...

  • Page 5: Insert The Battery

    H/W Parts Settings Insert the battery Open the battery cover by pushing it le to right with thumbs. Insert the battery and gently press the battery into place. Close the cover. To turn on the power Press and hold “power” button. "Indicate LED"...
  • Page 6 H/W Parts Settings Charger can be used for Amercian type & European type. The default is European type . Push the plug up. Then 220V European type is disassembled and you can see the 110V-220V American type inside of the charger. Choose the one you want to use and connect USB cable in adaptor.
  • Page 7 H/W Parts Battery / Light Functions Battery / Light Functions CAMERA POSITON STATUS In use While Turning it on Flashing blue light In use Connected Blue light In use Low Battery Flashing Red/blue light In use While turning it off Flashing Red light Plugged to the base Charging...

  • Page 8: System Settings

    System Settings Download & Install PC User Go to link on the browser as below. http://www.aramhuvis.com/downloads Install the program. Tablet device or Smartphone user iOS : Go to “App Store” and download application. Android : Go to “Goolgle Play Store” and download it. C.
  • Page 9 System Settings How to connect with the program First of all, check the Wi-Fi name and password which is described at back side of battery cover. Wi-Fi name & password must be same and the format is “ASI_XXXX”. Turn on the device. While turning on the device, prepare PC, Tablet, Smartphone to run the S/W.

  • Page 10: Program Settings

    Program Settings General Settings Change the language, analysis mode and etc. Analysis Settings Set up the skin type and analysis parameter. Recommended Products Available for each analysis result. About Check the current version and update is available in Wi-Fi connection. D.

  • Page 11: Device Certification

    Program Settings Device Certification Solutionist program includes three programs. But when you start “Solutionist” program with ASI-202 device you can see the pop message saying that the program is compatible with only “HAIRⅡ ” device. Touch “OK” button. Then you will see now only “HAIRⅡ”...
  • Page 12 Program Settings Device Certification Device certification is complete. Please touch “OK” button. When it is done, you could touch “Product Download” button to load in server. If you have the recommended product data in server, the product will be downloaded by clicking “Product download”.

  • Page 13: Start Analysis

    Applicaton Start Analysis Touch “Analysis” to start. Remote Control (Only Tablet) During analysis, you can control the device in "Solutionist" program. In screen, touch "Control Menu On" to activate "Remote". You can make use of this function in all analysis pages. E.
  • Page 14 Applicaton Input the information. - full name, email address, gender and age group Take picture of customer's face with built-in camera or use the picture you already have in device. Among the customer lists, select the client to check or start analysis. Check the customer information and analysis result list.
  • Page 15 Applicaton Hair Loss Status Touch button to activate the built-in camera. Take pictures of "Front" and "Temporal" head by button and touch button. Then select the type which is similar with your hair loss shape. The result will appear. To analyze the next step, touch the below button.
  • Page 16 Applicaton Scalp Status Touch button to activate the camera. Take pictures of the scalp by button and touch button. Among the samples, choose the one which is similar with your image. The result will appear. To analyze the next step, touch the below button.
  • Page 17 Applicaton Hair Density Touch button to activate the camera. Take pictures of the scalp by button and touch button. Among the samples, choose the one which is similar with your image. The result will appear. To analyze the next step, touch the below button.
  • Page 18 Applicaton Keratin of Scalp Touch button to activate the camera. Take pictures of the scalp by button and touch button. Among the samples, choose the one which is similar with your image. The result will appear. To analyze the next step, touch the below button.
  • Page 19 Applicaton Exposure of Scalp’s Vessel Touch button to activate the camera. Take pictures of the scalp by button and touch button. Among the samples, choose the one which is similar with your image. The result will appear. To analyze the next step, touch the below button.
  • Page 20 Applicaton Hair Thickness Touch button to activate the camera. Take pictures of the hair by button and touch button. Among the samples, choose the one which is similar with your image. The result will appear. To analyze the next step, touch the below button.
  • Page 21 Applicaton Hair Pore Status Touch button to activate the camera. Take pictures of the pore by button and touch button. Among the samples, choose the one which is similar with your image. The result will appear. To check all the results, touch "Show All Results"...
  • Page 22 Applicaton Summary Check the result. Touch button or each parameter's name on pentagon graph. Once you select "Show Recommended Product", product image will pop up as Available to check product image. E. Application - Summary...

  • Page 23: View Mode

    Applicaton View Mode In view mode, it is able to take pictures with capture button in many times. The user can select analysis parameter to take picture. In one screen, you can see 4 di erent images maximum. The user can mark the defect or concern according to the image with note function.

  • Page 24: Warranty

    Warranty The product undergoes strict quality management and inspection process before production and introduction to market. In case of functional or operational defect occurring under normal condition of use within 10 days a er purchase, we will repair it for free or replace in new product. When this product goes out under the normal use, we will repair it free of charge under warranty.

  • Page 25: Service Request Form

    Warranty Service request form Date of Company purchase Contact person Address : Tel : Product name, serial no : Problems : Shipping address: 560, Dunchon-daero, Jungwon-gu, Seongnam-si, Gyeonggi-do, 13230, Rep. of KOREA E-mail : support@aramhuvis.com Tel : +82 70 4687 1712 / Fax : +82 31 732 6330 F.
  • Page 26 Memo...
  • Page 27 Memo...
  • Page 28 HEAD OFFICE #401~402 Bundang Seoul National University Hospital Health Care Innovation Park, 172, Dolma-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, 13605 Rep. Korea PRODUCTION DIVISION & FACTORY #909 Byucksan Technopia, 560, Dunchon-daero, Jungwon-gu, Seongnam-si, Gyeonggi-do, 13230 Rep. Korea Tel: 070-4687-1712 / Fax: 031-732-6330 / Email: info@aramhuvis.com http://www.aramhuvis.com...
