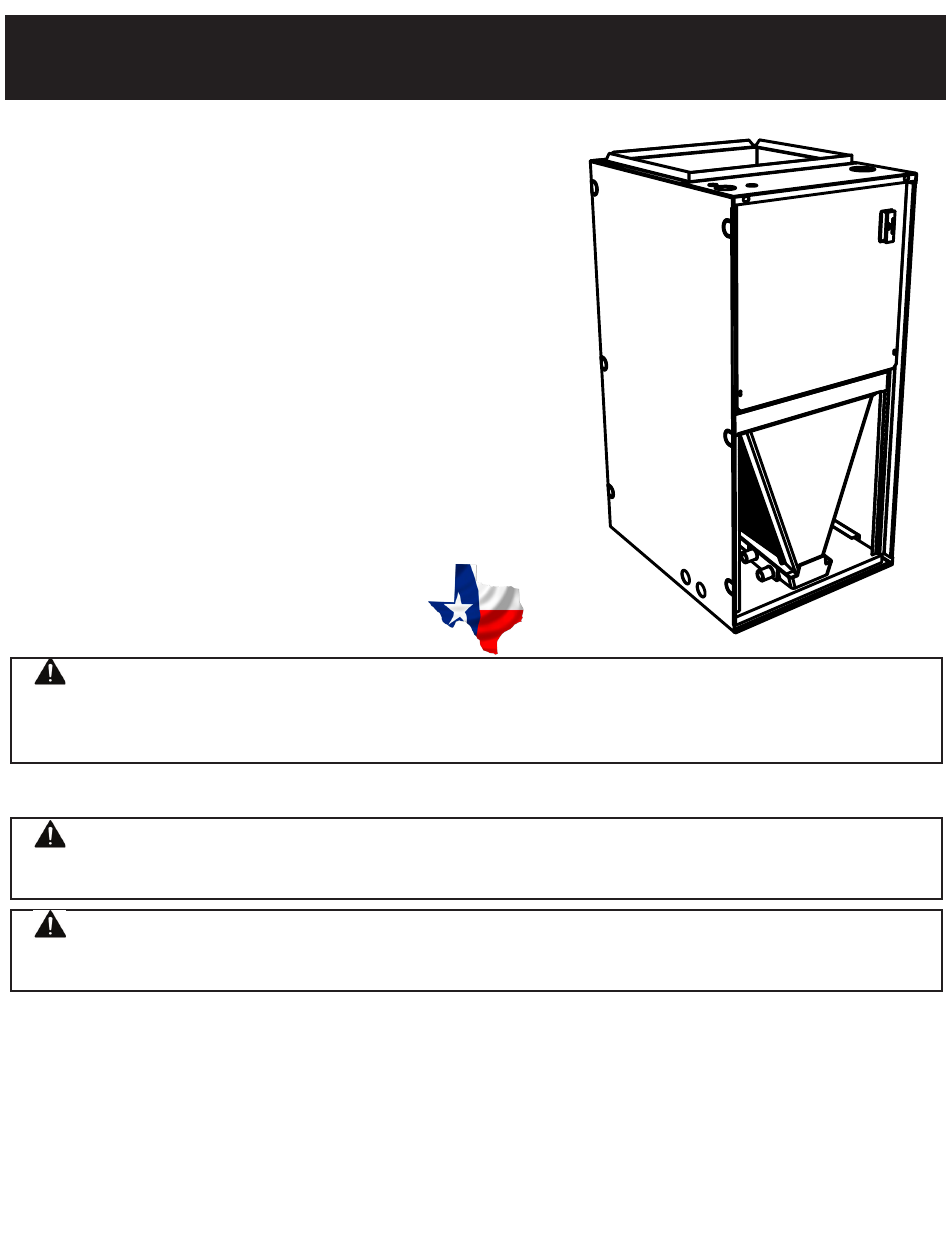

VL* SERIES
AIR HANDLER
GENERAL
The VL* Series is designed for permanent vertical installations
in a closet or recessed in the wall. Units of three tons and
less can be installed with front return through the optional
return air filter grille. An optional wall hanging kit is available,
air conditioning and heat pump coils are available to match
specific manufacturer's outdoor units. Various models are
available for applications up to three tons of nominal cooling
capacity.
Front panels are painted for an attractive appearance. Time
delay fan relays are optional on all models. All model are
pre-wired for heat pump application. Flowrator refrigerant
metering devices are standard. Thermal expansion valve or
check valves are available factory or field installed. All models
are 208/230 VAC single phase 60 Hz and are provided with a
24-volt control transformer. Electric resistance heat available
up to 10kW.
WARNING: Do not operate this unit unless all service panels/access doors are in place. If
unit is located in the same area as the water heater or boiler, then the return air must be ducted
to the unit. Seal all service entrances to the unit to prevent combustible byproducts from the
water or boiler entering the air stream.
Installation of this unit shall be made in accordance with the National Electric Code, NFPA No. 90A and 90B, and
any other local codes or utilities requirements.
WARNING:
service and maintenance should be performed by a qualified technician. Consumer service is
recommended only for filter replacement.
WARNING: Ensure all power is disconnected before installing or servicing this unit. More
than one disconnect device may be required to de-energize the equipment. Hazardous voltage
can cause severe personal injury. Make certain all panels are in place before operating this unit.
UNPACKING
Carefully unpack the unit and inspect the contents
for damage. If any damage is found at the time of
delivery, proper notification and claims should be
made with the carrier who delivered the unit.
Check the unit rating plate to ensure model number
and voltage, plus any kits agree with what you ordered.
The manufacturer should be notified immediately of
any discrepancy of parts or shortage.
Due to possible damage to equipment or personal injury, installation,
INSTALLATION GUIDE
LOCATION
The blower coil unit should be centrally located and may
be installed in an attic, basement, or crawlspace with 0"
clearance from any side, front, rear, or duct work. The
unit must be installed in a level position to ensure proper
condensation drainage. Make sure the unit is level in
both directions within 1/8".
If the unit is going to be installed with the return air
8.2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Allstyle VS Series

  • Page 1 VL* SERIES INSTALLATION GUIDE AIR HANDLER GENERAL The VL* Series is designed for permanent vertical installations in a closet or recessed in the wall. Units of three tons and less can be installed with front return through the optional return air filter grille. An optional wall hanging kit is available, air conditioning and heat pump coils are available to match specific manufacturer’s outdoor units.
  • Page 2 INSTALLATION GUIDE TYPICAL RECESSED INSTALLATION through the base, remove the lower access door and remove the fiberboard insulation panel from the bottom channel. This channel may be used as a filter rack. (VL - 20” x 20” x 1”, VL* - 24” x 24” x 1”) Be sure to replace the lower access door prior to operating the unit.
  • Page 3 INSTALLATION GUIDE DUCT WORK BLOWER The duct work should be installed in accordance with This unit is supplied with a multi-speed motor with a the NFPA No. 90A “Installation of Air Conditioning and direct drive blower wheel which can obtain various air Ventilating Systems”...
  • Page 4: Air Filter

    INSTALLATION GUIDE AIR FILTER SEQUENCE OF OPERATION Cooling (Cooling only or heat pump with reversing An air filter must be installed prior to the air entering valve energized in heat mode): When the T-Stat calls the evaporator coil to protect the coil, blower, and for cooling, the circuit between R and G is complete, other internal parts from excessive dirt and dust.
  • Page 5: Maintenance

    Warranty will be voided if any chemical cleaning products are used on any AllStyle coils. AllStyle sug- A performance test should be conducted in the gests water and a soft, bristled brush.
  • Page 6: Wiring Diagram

    WIRING DIAGRAM 230v 208v VL* SERIES AIR HANDLER INSTALLATION GUIDE...
  • Page 7 WIRING DIAGRAM 230V 208V 230V 208V 230V 208V 230V 208V VL* SERIES AIR HANDLER INSTALLATION GUIDE...
  • Page 8 WIRING DIAGRAM USE COPPER CONNECTORS DISCONNECT POWER BEFORE ONLY. INSTALLATION OR SERVICING. Use Conductors Suitable for 167 TERMINAL MULTIPLE POWER SOURCES Deg F. BLOCK MAY BE PRESENT. 208-230VAC / 60Hz / 1Ph FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, EQUIPMENT GROUND USE PERSONAL INJURY, OR DEATH.
  • Page 9 WIRING DIAGRAM HEATING ELEMENTS DISCONNECT POWER BEFORE DISCON INSTALLATION OR SERVICING. INSTAL MULTIPLE POWER SOURCES MULTIP MAY BE PRESENT. MAY BE FAILURE TO DO SO MAY FAILUR HEATER RELAY CAUSE PROPERTY DAMAGE, CAUSE BROWN PERSONAL INJURY, OR DEATH. WHITE PERSO BLACK BLACK ORANGE...
