Allstyle EFM Series Installation Manual

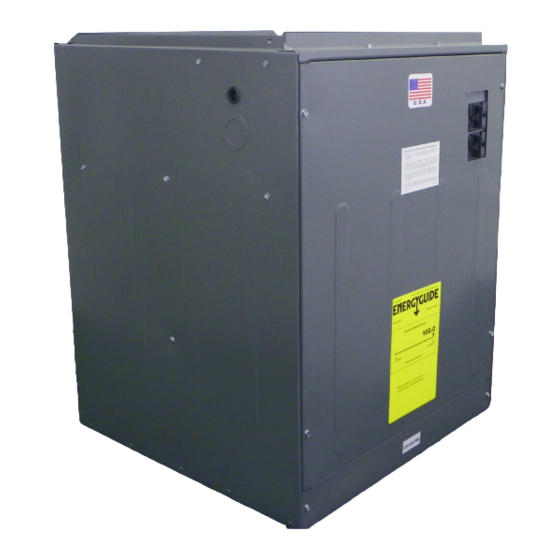

EFM / ELB SERIES
ELECTRIC HEATING UNITS

GENERAL

The EFM / ELB Series unit is designed for permanent
upflow, counterflow, or horizontal
installation. Optional DX coils are available tha t which
allows for add on of DX air conditioning and heat pump
applications to meet specific requirements of the outdoor
equipment. The EFM / ELB Series are available in sev-
eral models ranging from 600 CFM to 2000 CFM of air
movement. Electric resistance heat is available from
3 to 20 KW.
WARNING:
Due to possible damage to equipment or personal injury, installation, service and
Maintenance should only be performed by a trained, qualified person. Consumer service is recommended
only for filter replacement.
Installation of this unit shall be made in accordance with the National Electric Code, NFPA No. 90A and 90B, and any
other local codes or utilities requirements.
HAZARDOUS VOLTAGE – Ensure all power is disconnected before installing or servicing
WARNING:
this unit. More than one disconnect device may be required to de-energize the equipment. Hazardous voltage
can cause severe personal injury. Make certain all panels are in place before operating this unit.

UNPACKING

Carefully unpack the unit and inspect the contents for
damage. If any damage is found at the time of delivery
proper notification and claims should be made with the
carrier who delivered the unit.
Check the unit rating plate to insure model number and
voltage, plus any kits agree with what you ordered. The
supplier should be notified
discrepancy or parts shortage.
9.2015
left/right airflow
Coil Company, L.P
immediately of any
INSTALLATION GUIDE

LOCATION

The blower coil unit should be centrally located and may
be installed in an attic, basement or crawl space with 0"
clearance from any side, front, rear or duct work
If the unit is located above a finished ceiling or
space, an auxiliary safety drain pan must be
installed under the unit. A separate drain line must
be installed from the safety pan.
LM20031 B
