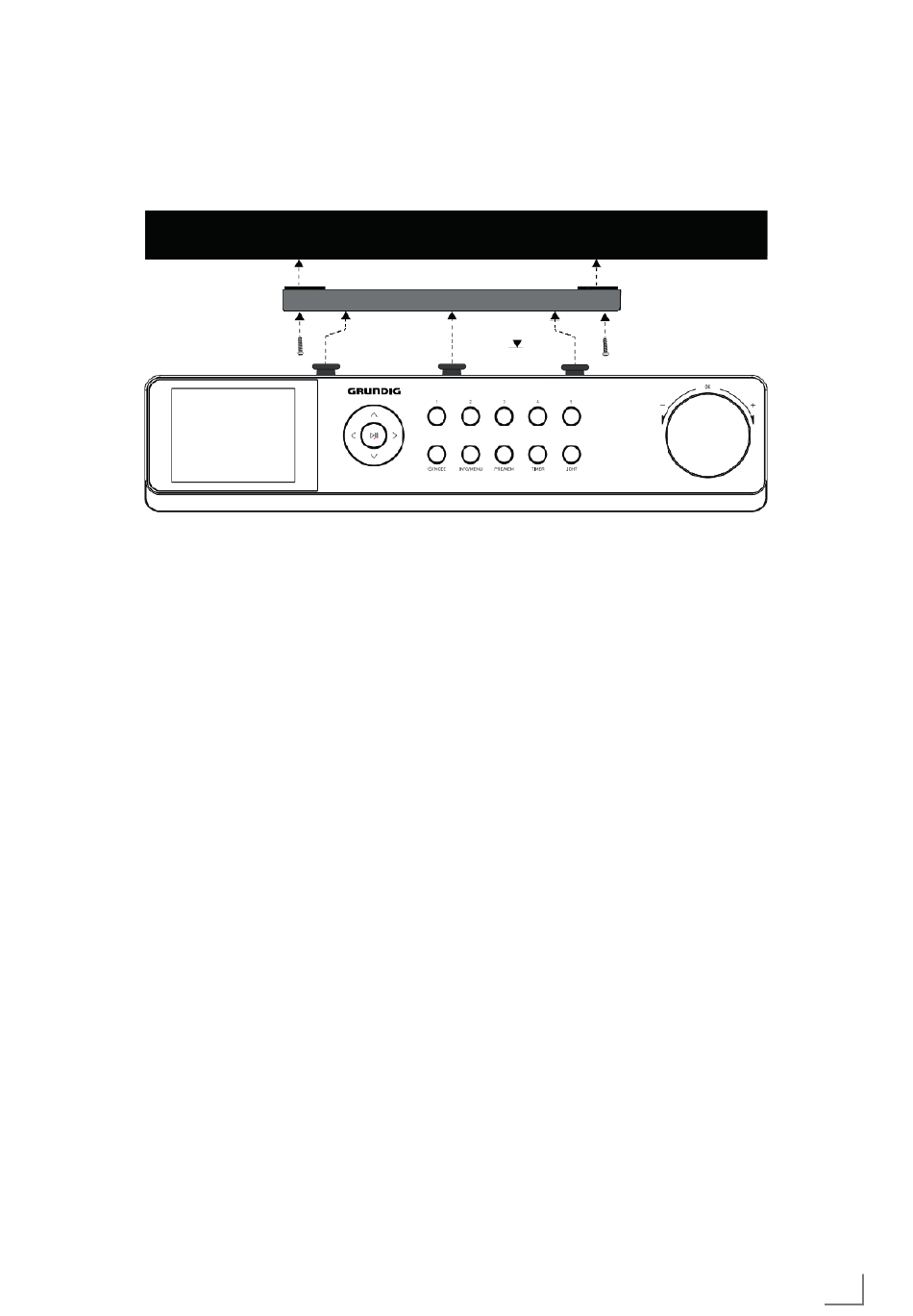

MOUNTING­THE­DEVICE­
The device is designed to be mounted on the
underside of a wall cupboard or shelf unit. You
will need the four supplied screws to mount the
device.
1 Select a space close to a mains power socket.
2
The installation height of device should be less
than 2m.
3
Remove the bracket from the device by pulling
it to the rear.
4 Use the bracket to mark the drill holes.
5 Check that the position is correct using the de-
vice.
6
Drill four holes where you made your markings
on the underside of the shelf unit in order to fix
the screws.
7­Screw the mounting bracket to the bottom of the
cupboard or shelf.
8
Now place the device retaining pins onto the
mounting bracket and carefully push it back
until it stops.
Warning!
Risk­of­fire/short­circuit!
Rising steam or heat can pose a risk of electric
shock or fire if a short circuit occurs.
Never mount the device above a hob or any
7
other heat or steam source (for example, elec-
tric kettles, etc.).
Never allow the mains cable to hang over a
7
cooker hob or other heat source.
­-----------------------------------------------------------------------------
Adjusting/Fixing­the­antenna­
(wire­type)
The number and quality of broadcast stations de-
pends on the reception conditions at the location
of the device as well as the radio antenna. Op-
timum reception can be achieved with the wire
type antenna when it is fixed and placed at the
right position.
1 Precise alignment of the wire type antenna is
important, especially in the fringe areas of the
DAB/FM reception. Check the position of the
nearest radio mast at your region.
2
Then position the wire type antenna facing the
radio mast if possible.
3 Attach the main wire of antenna run horizon-
tally to the cupboard or shelf by the provided
wire fixer (4pcs). (See below example picture).
