Grundig DTR 7000 Manual

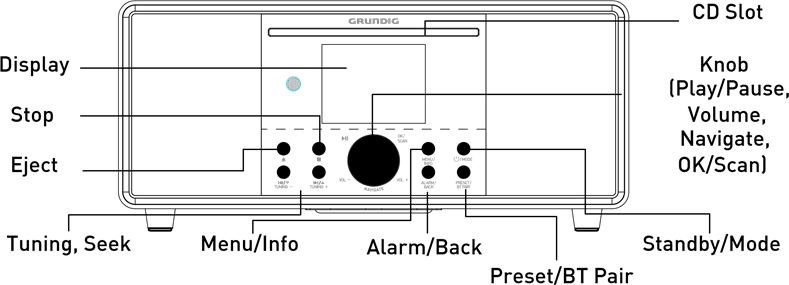

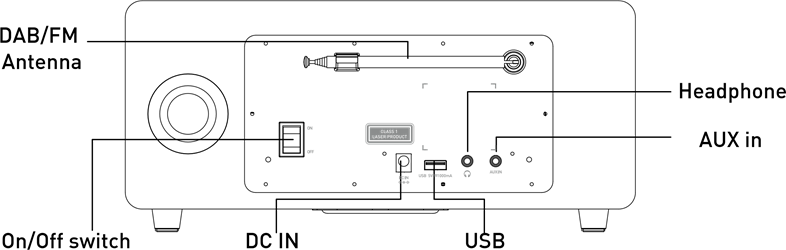

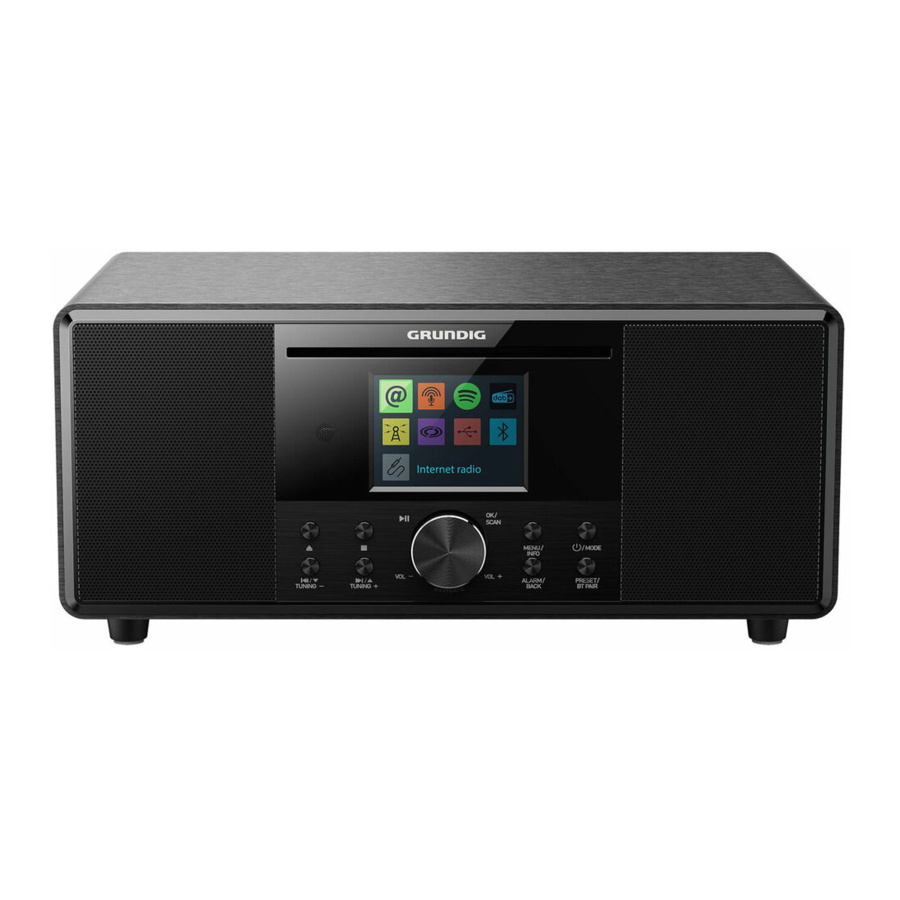

OVERVIEW

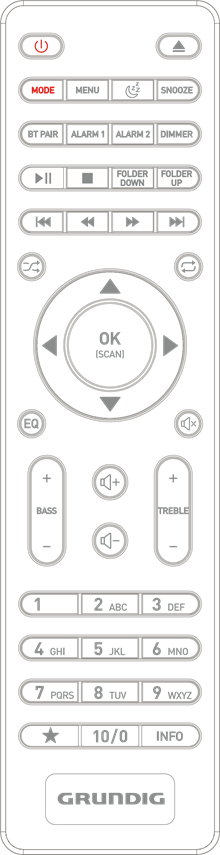

REMOTE CONTROL

	Device power on/off; alarm off
	Open, close CD tray
MODE	Open, close mode selection
MENU	Open, close menu
	Set sleep time
SNOOZE	Enable snooze during alarm
BT PAIR	Hold down to turn Bluetooth discoverable
ALARM 1 ALARM 2	Set Alarm
	Start playback, pause
	Internet radio, podcast, CD, USB:Stop music playback
FOLDER FOLDER DOWN UP	CD, USB: Seek the folder
	Select track
	CD, USB:Hold down to seek along the track
	Music: random selection
	Music: repeat selection
	Move up; FM: Set frequency
	Move down; FM: Set frequency
	Move left, step back
	Move right, step next
OK	Confirm entry; FM: DAB: slideshow in full screen
EQ	Select equalizer preset
	Mute, unmute
	Adjust volume
-BASS+	Adjust bass level as My EQ setting
-TREBLE+	Adjust treble level as My EQ setting
1...10/0	Number buttons: retrieve saved favorite station, hold down to save station
	Select favorite stations, hold down to save favorite
INFO	Go to BKSP when inputting characters Display Internet Radio, Podcasts station/ track info (Descriptions, Streaming data, playback buffer) Display Spotify music info (Artist, Album, Streaming data, playback buffer) Display FM station info (Name, PTY, RT, frequency) Display DAB station info (Station, track, artist etc.) Display USB/CD music info (if ID3 Tag available in the music track – album, title, artist)

GETTING STARTED

Connection and Preparation
Connect to the speaker and power socket using the AC adaptor. Switch on the device, it starts up.

Connecting to the network

• Power on your device and connect to a wireless access point, router or similar network device.
• The network device needs to support WiFi (802.11 a/b/g/n) wireless connection.

Make sure you have setup the wireless network and you have the WEP, WPA or WPA2 security password to activate the connection. You may also use the WPS (WiFi Protected Setup) function for easy pairing between the network device and DTR 7000 2.1 BT DAB+ WEB. Check if the light indicators on the network device are in appropriate status.

Using CDs

The device is suitable for music CDs displaying the logo shown here (CDDA) and for CD-Rs and CD-RWs with audio data. You can play standard 12 cm CDs on your device. The radio is able to play CD-R and CD-RW discs containing MP3 and WMA files. It is assumed in this section that a file is equivalent to a CD track.
An MP3 / WMA CD may not contain more than 999 files and not more than 99 folders. MP3 and WMA files should be created with standard audio sample rate of 44.1kHz.
MP3 and WMA data rates up to 320 kilobits per second are supported. WMA Lossless files are not supported. The unit will not play files which include digital rights management (DRM) protection. When burning CD-R and CD-RW discs with audio files, various problems may arise which could lead to problems with playback. Typically such problems are caused by poor CD writing or audio encoding software, or by the hardware settings of the PC's CD writer, or by the CD being used. Should such problems arise, contact the customer services of your CD writer or software manufacturer or look in their product documentation for relevant information. When you are making audio CDs, take care to observe all legal guidelines and ensure that the copyright of third parties is not infringed.

Connecting a USB memory stick
Insert the USB plug of a USB memory stick into the USB port at the back of the device. The system of the USB must be FAT 16, FAT 32. It is not compatible with NTFS or other systems.

Connecting an audio source via AUX in
Use a standard 3.5mm audio cable to connect the audio output from the external device to the audio input sockets on the back of the device.

Connecting the headphones
Turn the volume down before using the headphones.
Inset the headphone plug (standard 3.5mm) into the headphone socket at the front of the device.

GENERAL DEVICE FUNCTIONS

On the playing screen, rotate the volume knob or press » « / » « on the remote control to adjust the volume. Switch off the sound by pressing » « on the remote control. Press » / MODE« on the device or on the remote control to select modes.

Press »MENU/INFO« to open the menu. Press again to close the menu and return to playing screen.
On the menu, rotate the knob or press arrow keys on the remote control to move along the entries.
Press »OK/SCAN« to confirm; press »ALARM/ BACK« or » « on the remote control to step back.
Press and hold » / MODE« on the device or press »« on the remote control to switch to standby mode. The time, date and any active alarm times display on the screen.

Press » « to wake up from standby.

Presets
Number of presets: lnternet Radio: 20 l Podcasts: 20 l Spotify: 10 l DAB+: 40 l FM: 40 To store preset, press and hold »PRESET/BTPAIR« or »« until the display shows the Save preset screen. Select one of the presets to save the currently playing station. Store 1-10 preset stations by directly pressing and hold numbers »1...10/0 « on the remote control. To play a preset, press »PRESET/BTPAIR« or »«, then select one of the listed preset stations. When a preset station is playing, it shows n ( 1, 2 etc) at the bottom of the screen. Recall 1-10 preset stations by directly pressing the number keys on the remote control.

Now playing information
While stream/DAB/FM is playing, the screen shows some information about the station, press »MENU/INFO« or »INFO« to view.

lnputting Character

As each character is selected, the key is built up near the top of the display.
There are three options accessible by tuning the navigate reel back before the first characters »BACKSPACE«, »OK« and »CANCEL«. Press »INFO« to move to the »BACKSPACE« box as a short cut.

When the device is overloaded
The device may process large amount of data after a period of operation, no matter in which mode, it will cause the system freeze or malfunction. Reboot the device if necessary.

First-time Setup
When powering the device on for the first time, it asks to setup the OSD language. Choose your language and confirm. It displays information of privacy policy then. Press »OK/SCAN« to continue. The Wizard installation assistant then appears, which guides you through the installation step by step. Select »YES« and confirm your selection and launch the setup wizard.
If you select »NO«, the next window will ask you choose if you want to start the setup wizard again next time you power the device on.

Setting date and time
Select "12" for 12-hour display format or "24" for 24-hour display format. If you select the 12-hour format, the display shows "AM" in the morning or "PM" in the afternoon after the time. After this, the following options are available, to define if the time to be synchronized from radios: Update from DAB, Update from FM, Update from Network or No update If you choose "Update from Network" you must indicate your time zone in the next window. Next choose "ON" for summer time, otherwise select "OFF".
If you choose "No update", you will have to enter the date and time manually. "AM"/ "PM" displays only if you have chosen the 12-hour time format. Select "AM" for the morning hours or "PM" for the afternoon hours.

Setting network
For Wi-Fi connection, please make sure that the router is switched on via the network. If you want to control the device in all operating modes via the app, select "YES". If choosing "NO", it is not possible to control the device from the app in the (Standby, AUX IN, FM, DAB) operating modes. Note that the power consumption in standby mode will be higher when the network connection is kept up.
Any WLAN networks found are listed on the display, along with their names. After selecting the network, you will be asked for input a standard encryption. To enter the network's key, use the reel or direction keys on the remote control to move the cursor through the characters and press »OK/SCAN« to confirm.
[WPS] There will be hints for the type of network –if your network device supports WPS function.

Use one of the following methods of connection:

• Push button: The device prompts you to press the connect button on the router. Press »OK«on the device and wait until it appears connected on the display.
• Select the option »PIN« on the device and it will generate 8-digit code number. Enter the PIN number into the router, access point, or similar net-work device and wait until it appears connected on the display.
• Skip WPS: Enter key as for a standard encrypted network. For more information on setting up a WPS encrypted network, see your WPS router's instructions.

Device attempts to connect to the selected network.
It will show connected if the setup is successful. If connecting fails, it returns to a previous screen to try again. Once it has completed, press »OK/ SCAN« to quit the setup wizard.

MAIN OPERATION

Internet Radio, Podcasts

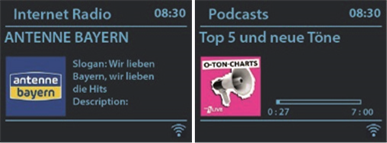

Device can play thousands of radio stations and podcasts from around the world though a broadband Internet connection. When you select Internet radio or Podcasts mode, the device directly contacts the Frontier Smart Technologies portal to get a list of stations or podcasts. The list menu is provided from the portal, so it is only accessible when the device is connected to the Internet. The contents and submenus may change from time to time. Choose required category and search the station or podcast to listen. On the screen, press »ALARM/ BACK« or » « on the remote control to wiew the station list.

Spotify

Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how
The Spotify Software is subject to third party licenses found here: http://www.spotify.com/ connect/third-party-licenses

DAB+ Radio
DAB mode receives DAB/DAB+ digital radio and displays information about the station, stream and track playing.

Scanning for stations
The first time you select DAB radio mode, or if the station list is empty, the radio automatically performs a full scan to see what stations are available. You may also need to start a scan manually to update the list of stations.
To start a scan manually, choose Full scan. To scan only stations with good signal strength, select Local scan. Once the scan is complete, the radio shows a list of available stations. To remove stations that are listed but not unavailable, choose Prune invalid. Turn the navigate reel to view a list of stations and press to select. Once selected, the station plays and the screen show information about station, track or show as broadcast.
On the screen, press »ALARM/ BACK« or » « on the remote control to wiew the station list. When the slideshow is displayed on the playing screen, press »OK/SCAN« to view the full screen size of the picture.

Settings

• Dynamic range compression (DRC) If you are listening to music with a high dynamic range in a noisy environment, you may wish to compress the audio dynamic range. This makes quiet sounds louder, and loud sounds quieter. You can change DRC as off, low or high.
• Station order You can choose the order of the DAB station list to be either Alphanumeric, Ensemble or Valid. Ensemble lists groups of stations that are broadcast together on the same ensemble. Valid lists valid stations first, alphanumerically, then off-air stations.

FM Radio
FM radio mode receives analogue radio from the FM band and displays RDS (Radio Data System) information about the station and where broadcast.

The first time you select FM radio mode, or if the station list is empty, the device will run auto scan and save the stations to the preset list.
To find a station, press »OK/SCAN« The frequency display starts to run up as the device scans the FM band. Alternatively, you can scan up or down by press and hold »TUNING - « or »TUNING + «.

Settings

• ATS: Run the auto scan function once
• Scan settings By default, FM scans stop at any available station. This may result in a poor signal-to-noise ratio (hiss) from weak stations. To change the scan settings to stop only at stations with good signal strength, select Yes after choosing Strong station only?
• Audio settings All stereo stations are reproduced in stereo. For weak stations, this may result in a poor signal-to-noise ratio (hiss). To play weak stations in mono, select FM weak reception: Listen in mono only and then YES.

CD

Press » « to open the CD compartment. Put in the disc with its label facing upwards. Press » « to close the CD compartment. The disc is read and played. „T000"means the track number.
„F00" means the folder number, it displays if you have inserted CD-R or CD-RW disc which contains the music tracks in different folders.
Press »FOLDER DOWN« / »FOLDER UP« to seek the folder.
Besides general playback control, you may do CD track programming as follows: Stop the playback first if any track is playing. Press »PRESET/BTPAIR« to program. Set the first programming track, use »5« »6« or to seek the track. Press »OK/SCAN« to confirm and set the next programming track. Repeat the steps. When programming is completed, press »« to start playing the programmed track(s).

USB
In USB mode, plug in the a USB drive to play.

„T000"means the track number.
„F00" means the folder number, it displays if the plugged USB drive contains the music tracks in different folders. »FOLDER DOWN« /
»FOLDER UP« to seek the folder. Besides general playback control, you may do USB track programming as follows:
Stop the playback first if any track is playing. Press »PRESET/BTPAIR« to program. Set the first programming track, use » « or » « to seek the track. Press »OK/SCAN« to confirm and set the next programming track. Repeat the steps. When programming is completed, press »« to start playing the programmed track(s).

Bluetooth

In Bluetooth mode, you can turn on the Bluetooth of your Bluetooth device. Press and hold »BTPAIR« to turns Bluetooth discoverable. From your Bluetooth device, search the HiFi System Grundig DTR 7000 to pairing. When it is waiting for pairing, there is a blinking Bluetooth icon at the bottom. If the pairing is successful, the Bluetooth icon becomes steady. Control the music playback from your Bluetooth device.

AUX

In AUX in mode plays audio from an external source. Turn the volume low on both the radio and, if adjustable, the audio source device. Enter AUX mode, then adjust the volume as required.

Sleep
To set the sleep timer, select Sleep under Main menu. Or press »« on the remote control to set. Choose from Sleep OFF, 15, 30, 45 or 60 minutes and confirm. Once you select a sleep period, the system returns to the now playing screen.

Alarm
There are two versatile wake-up alarms with snooze facility. Each alarm can be set to start in a particular mode.
Select Alarms under Main menu to set or change an alarm. Alternately, press and hold »ALARM/ BACK« on the device, or press »ALARM1«, »ALARM2«on the remote control to conligure.

After setup all the parameters, select Save to activate. The screen shows active alarms with an icon at the bottom left.
At the set time, the alarm will sound. To temporarily silence, press »SNOOZE«.You can change the snooze period. The radio returns to standby for the set period, with the silenced alarm icon flashing.
Press and hold » / MODE« or press »« on the remote control to turn it off.

SYSTEM SETTINGS

System settings
Equaliser
Several preset EQ modes are available: Normal, Flat, Jazz, Rock, Movie, Classic, Pop, News and My EQ. Press »EQ« to select. A user-defined setting is available; create your own EQ with custom bass, treble and loudness settings. Then choose My EQ to activate the customized EQ settings.
Alternatively, press » - BASS + « / » - TREBLE + « on the remote control to adjust bass or treble, then press »OK/SCAN« to confirm. This will activate My EQ directly.

Network
Network wizard:
Enter to search AP SSID, then input the WEP / WPA key or choose Push Button/Pin/Skip WPS to connect to the wireless network.

PBC Wlan setup:
Push Button Configuration, it is to connect the AP that supports WPS (Wi-Fi Protected Setup).

View settings:
View the information of current connected network: Active connection, MAC address, Wlan region, DHCP, SSID, IP address, Subnet mask, Gateway address, Primary DNS and Secondary DNS.

Manual settings:
Enable or disable DHCP (Dynamic Host Configuration Protocol). Input the SSID, WEP / WPA key and/or other configuration.

Network profile:
The device remembers the last four wireless networks it has connected to, and automatically tries to connect to whichever one of them it can find. From here you can see the list of registered networks. You can delete unwanted networks. Clear network settings: Select "YES" to clear all the current network settings. Select "NO" to cancel.

Keep network connected:
If you choose to keep network connected, the WiFi will not disconnect even you are in standby mode or non-network mode.

Time/Date
Set the time manually or auto update, time format, time zone and daylight. Details can be referred to Setting date and time under Section First-time setup.

Language
Change it as your preference. Available languages: English, Danish, Dutch, Finnish, French, German, Italian, Norwegian, Polish, Portuguese, Spanish, Swedish, Turkish.

Factory Reset
Resetting all user settings to default values, so that time and date, network configuration and presets are lost. However, current software version of the radio is maintained

Software Update
Auto-check setting: This option automatically checks for new updates from time to time. Automatic updating is enabled by default. Check now: Search for available updates immediately. You will be asked if you want to go ahead with download and installation of an update. After a software upgrade, all user settings are maintained.
NOTE: Before starting a software upgrade, ensure that the radio is plugged into a stable main power connection. Disconnecting power during an upgrade may permanently damage the unit.

Setup Wizard
With this function, you can start the setup wizard at any time. Any parameters or stations entered already are not deleted. For more information, please read the Section First-time setup.

Info
View the firmware version and the radio ID.

Privacy Policy
View the information of Privacy Policy.

Backlight
You may change the power - on backlight level to High, Medium or Low. And adjust the timeout duration which the radio turns to standby backlight level when it has not been controlled. Press » DIMMER « to change the brightness of the backlight.

TROUBLESHOOTING

INFORMATION

Model number	DTR 7000 2.1 BT DAB+ WEB / TR 4000 BT DAB+ WEB
Display	2.8", 320 x 240, TFT colour display
Network supported	WiFi IEEE 802.11a/b/g/n wireless; Bluetooth (BT 4.2, Supports A2DP, AVRCP profiles)
Frequency band	WiFi: 2.412 - 2.472 GHz, 5.18 - 5.32 GHz, 5.50 - 5.70GHz, 5.745 – 5.825GHz; Bluetooth: 2.402 - 2.48 GHz
Radio frequency power transmitted	WiFi 2.4G: 17.6dBm; WiFi 5G: 16.38dBm; WiFi 5.8G: 8.07dBm; Bluetooth: 7.59dBm
Encrypted key	WEP, WPA, WPA2 (PSK), WPS
Streaming Supported Formats	MP3, AAC/AAC+ (up to 48kHz, 16bits)
USB Supported Formats	MP3, WMA, AAC, FLAC (sampling rate MAX: 48kHz)
CD Supported Formats	CD(12cm), CD-R, CD-RW, MP3-CD, WMA-CD MP3, WMA (DRM not supported), CD-audio
DAB / DAB+	Band III, 174.928 – 239.200 MHz
FM	87.5 – 108.0 MHz
USB Charging	Output: DC 5.0V 1.0A
USB Playback	Compatibility system: FAT 16, FAT 32
Battery (Remote Control)	2 x 1.5V AAA
Standby mode power consumption	<1.0W
Networked standby power consumption	<2.0W
Operating temperature	0 ºC - 35 ºC
Speaker power output	2 x 4W + 24 W RMS
Speaker Impedance	Full range: 6Ω, Bass: 4Ω
Signal-to-noise ratio	>60 dB
Frequency response	50Hz – 20kHz
Audio Connections	3.5mm headphone socket (back) 3.5mm AUX IN socket (back)
Dimensions	300mm(L) x 120mm(H) x 185mm(D)
Weight	3.2 kgs.
AC Adaptor
Manufacturer	ShenZhen Xinspower Technology Co., Ltd
Address	B 2F A BLDG 3 Huang Pu Shui Ku Rd., Shajing St Baoan, Shenzhen, 518125 Guangdong, China
Type	A361-1502400E
Input	100 - 240V~ 50/60 Hz, 1.5A
Output	15.0V 2.4A 36.0 W
Average Active Efficiency	88.21%
Efficiency at Low Load (10%)	87.14%
No-load Power	0.09 W
Safety Class	II

Use only original AC adaptor
Use only the power supply listed in the user instructions

SAFETY
