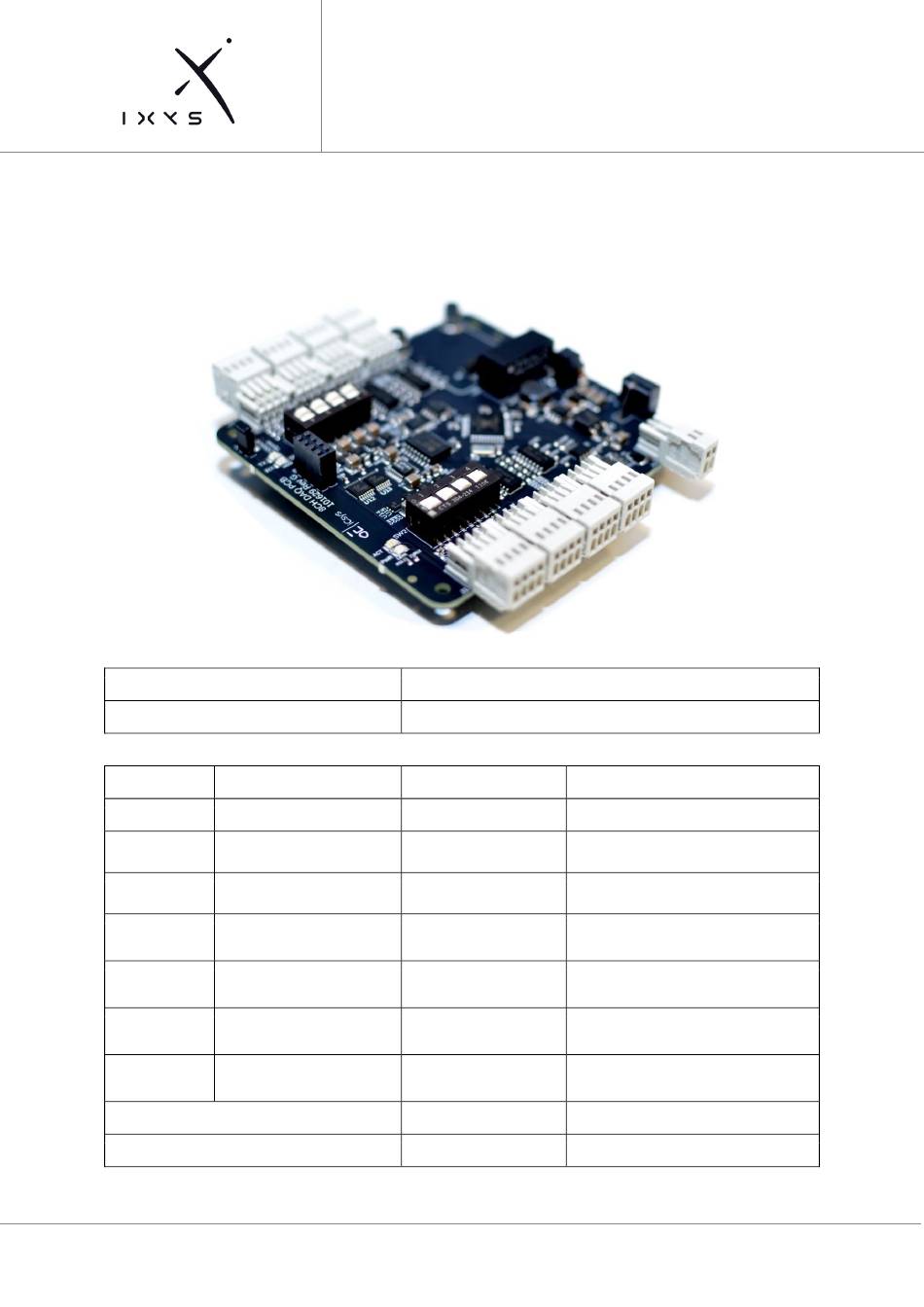

- Page 1 USER MANUAL Equipment Description PCB CS 8CH DAQ Ixys Part Number: 101629 Document No.: 101629-ICS-PD-UMN-0001 Document Name.: User Manual Published Revision number Revision reason Revised by 24.01.2018 Issued for release 15.09.2022 Updated drawing 08.12.2022 Updated image and added setting for encoder type 02.01.2023...
-
Page 2: Table Of Contents
Page | 2 Doc. No.: 101629-ICS-PD-UMN-0001 Name: User Manual Revision No: TABLE OF CONTENTS 1. INTRODUCTION ........................3 1.1..........................3 GENERAL NOTES 1.2........................3 PURPOSE AND SCOPE 1.3..........................3 ABBREVIATIONS 1.4..................... 3 SUPPLIER ONTACT INFORMATION 2. HEALTH, SAFETY AND ENVIRONMENT ...................4 2.1. -
Page 3: Introduction
1. INTRODUCTION 1.1. GENERAL NOTES This document outlines and defines the installation, operation and maintenance procedures for the Ixys PCB CS 8CH DAQ. The manual will contain all relevant data and methods to be able to use and maintain the device for its intended purpose. -
Page 4: Health, Safety And Environment
Page | 4 Doc. No.: 101629-ICS-PD-UMN-0001 Name: User Manual Revision No: 2. HEALTH, SAFETY AND ENVIRONMENT 2.1. GENERAL Safety Notes and General Precautions shall be presented to all personnel concerned prior to testing, operation, maintenance and repair. The operations shall be performed by the responsible engineer/supervisor. -
Page 5: Specifications
The board can be set up in two modes, slave or master. Configuration is possible through Web interface and by Modbus RTU/UDP/TCP. 3.2. TECHNICAL DATA General Manufacturer Ixys AS Description PCB CS 8CH DAQ Weight ~150g Dimensions 96 x 90 x 13mm (PC104 format) Electrical Data Supply Voltage 20 –... -
Page 6: Warranty Conditions And Guarantee
Packing not carried out in an ESD protective way 3.4. ORDERING Ixys Part Number Description 101629 PCB CS 8CH DAQ 3.5. ACCESSORIES Ixys Part Number Description 100040 Connector – 2 Way Cable contact Wago 733-102 100086 Connector – 4 Way Cable contact Wago 733-104... -
Page 7: Drawing
Page | 7 Doc. No.: 101629-ICS-PD-UMN-0001 Name: User Manual Revision No: 4. DRAWING... -
Page 8: Operation
Master Mode: Communication modules can be selected for direct communication. Through stack connectors, the board can share power and data bus with other Ixys CS range boards. The attached Ixys CS expansion IO boards will automatically be discovered by the board and the Modbus register list will add registers for the IOs on the connected boards. -
Page 9: Firmware Update
Page | 9 Doc. No.: 101629-ICS-PD-UMN-0001 Name: User Manual Revision No: 5.4. FIRMWARE UPDATE Follow this guide to update the firmware in the 8CH DAQ PCB (images are shown for Ethernet switch, but only the text is different). CAUTION: Do not power down the board when updating new firmware, this will •... - Page 10 101629-ICS-PD-UMN-0001 Name: User Manual Revision No: A file dialog will open, choose .eeprom file provided by Ixys AS. Press open. When correct .eeprom file is chosen, press upload. When firmware is uploaded, the browser will indicate that it is waiting for the page to ...
-
Page 11: Changing Ip Address
Page | 11 Doc. No.: 101629-ICS-PD-UMN-0001 Name: User Manual Revision No: 5.5. CHANGING IP ADDRESS Follow this procedure to change the IP address of the 8CH DAQ PCB (images are shown for Ethernet switch, but only the text is different).. Step Description ... - Page 12 Page | 12 Doc. No.: 101629-ICS-PD-UMN-0001 Name: User Manual Revision No: To change IP address, type in the new IP address in the IP address field, also fill in desired Modbus port and node id. Press “Submit” and then press “Save” to save the new settings to EEPROM. ...
-
Page 13: Registers
Name: User Manual Revision No: 6. REGISTERS 6.1. DATA TYPES The following table describes the data types used on Ixys boards. For 32bit values two Modbus registers is used where the first is the most significant. Name Size Value Range... -
Page 14: Write Registers
Page | 14 Doc. No.: 101629-ICS-PD-UMN-0001 Name: User Manual Revision No: 6.3. WRITE REGISTERS 6.3.1. OUTPUTS All Outputs are none volatile Address Description Note Data Type See Expansion PCB Register Document: ICS-SW-PRT- 500-799 Additional IO board Outputs 0005 6.4. READ/WRITE REGISTERS 6.4.1. -
Page 15: Io Boards
Page | 15 Doc. No.: 101629-ICS-PD-UMN-0001 Name: User Manual Revision No: 6.4.2. IO BOARDS Enter the IP address in a web browser and press the “Node Scan” button on the web page to detect attached nodes and add registers for the IO`s on the attached nodes. Press the “Save” button to store the Node list to non-volatile memory. -
Page 16: Detection Of New Node
Node-ID by setting change (Ref.: 6.3.2) of index 0. Be aware that any Ixys boards with jumpers or rotary hex switch set to any Node-ID above 0 will be overridden at power reset to the physically set Node-ID.
