Summary of Contents for Cattron DYNAGEN GSC300

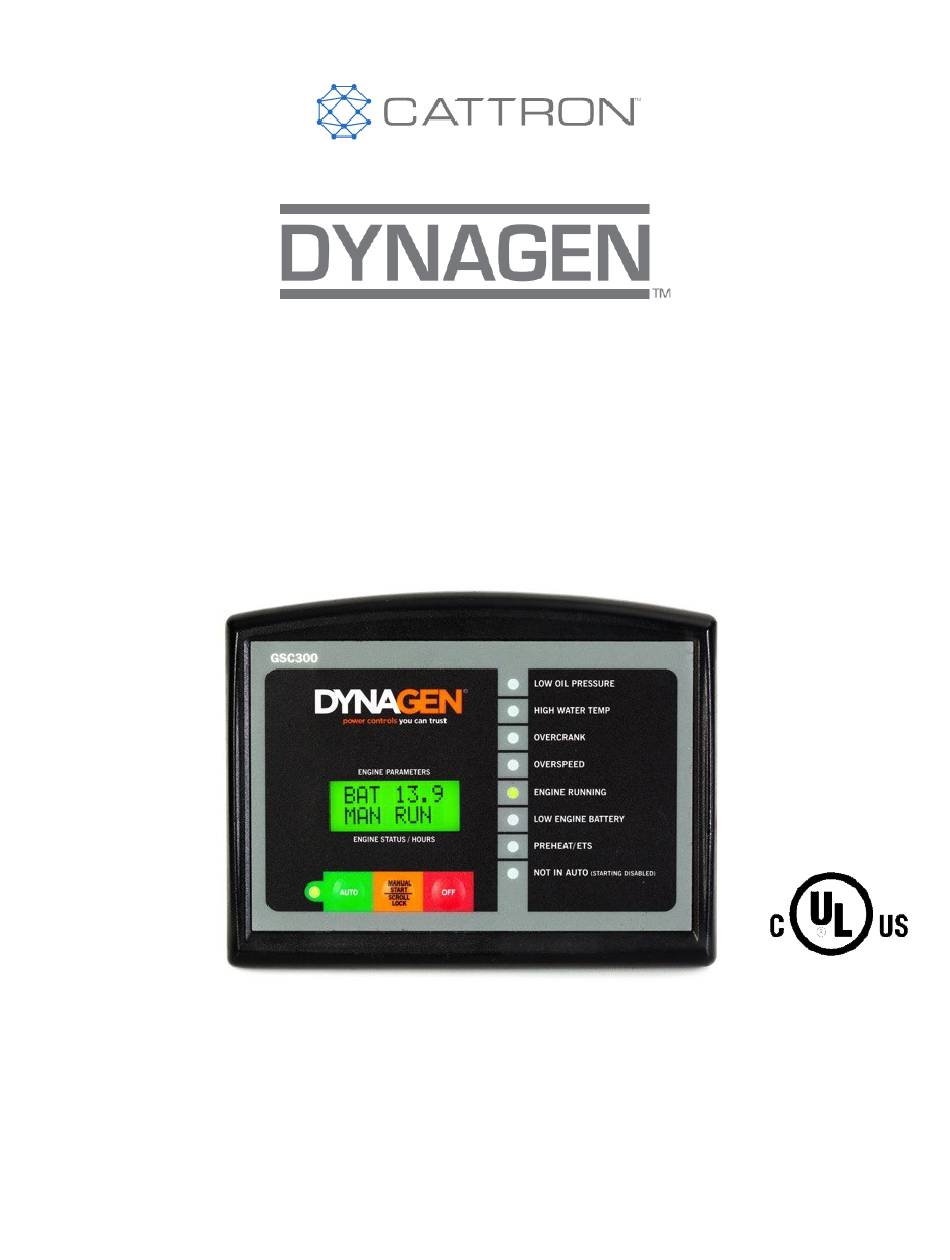

- Page 1 GSC300 Auto Start Engine Controller Revision 2.12 Installation and User Manual for the GSC300 Auto Start Engine Controller File: MAN-0039 R2.12, GSC300 User Manual.doc June 2014 Contact information updated April 2023...
-
Page 2: Limited Warranty
All returned items are to be shipped prepaid and include a Return Material Authorization (RMA) number issued by Cattron. Limited Warranty For warranty information refer to the standard terms and conditions of sale at www.cattron.com. Cattron GSC300 Webpage For up-to-date manuals and other information please see the Cattron website at:... - Page 3 -Short circuit & overload protection on annunciation outputs -Inputs are electrostatic discharge protected J1113-11 Transients – Pulse 1A (Supply Disconnect), Pulse 2A (Sudden Disconnect), Pulse 4 (Starter Motor Engagement), Pulse 5 (Load Dump). Details of the test parameters are available, please consult Cattron at www.cattron.com...
- Page 4 4 of 28 Outputs -All outputs switched to +battery (sourcing) -Fuel, Crank, and Timer Outputs: 12V/30A or 24V/20A each, using standard automotive relays -Annunciation Outputs: 1 on = 300 mA, 2 on = 230 mA, 3 on = 160 mA, 4 on = 123 mA, 5 on = 91 mA, 6 on = 80 mA, 7 on = 66 mA, 8 on = 52mA Connections -Removable terminal block for annunciation outputs and low power connections...
-
Page 5: Table Of Contents
5 of 28 Table of Contents GSC300 Product Number Identification ..................6 Wiring Installation Guidelines ......................7 Mounting ..........................7 General ............................ 7 GSC300 12/24VDC System Operation ..................8 Terminal Description ........................ 9 System Wiring Diagram ......................12 Back Panel Layout ......................... 14 Controller Operation ........................ -
Page 6: Gsc300 Product Number Identification
GSC300 H=High (consult 24=24VDC LX=Customized Cattron at www.cattron.com) Example: The product number GSC300-L-12-LS would be described as follows: A GSC300 series automatic engine controller configured for a 12 VDC system. The controller is factory configured for low speed range (generator speed range) which includes standard labeling. -
Page 7: Wiring Installation Guidelines
7 of 28 2. Wiring Installation Guidelines Danger: Never work on the engine while its power is on. This controller does not generate a warning signal prior to automatic engine start. Warning signs should be placed on engine equipment indicating this important safety measure. -
Page 8: Gsc300 12/24Vdc System Operation
4. WARNING: Relays are rated for maximum 30A at 12V. If relays are being used at 24V maximum rating is 20A. Relays are rated for resistive ratings. When driving such loads as starter solenoids you must ensure proper de-rating of the relays. Consult Cattron at www.cattron.com for further details. -
Page 9: Terminal Description
9 of 28 12VDC relay type. When operating in 24VDC systems these relays need to be the 24VDC relay type. Contact Cattron at www.cattron.com/contact if relays are required. Approved relays for 12 or 24VDC system operation are as follows: •... - Page 10 10 of 28 Speed. Options: Generator Output (L-Version) or Mag Pickup (H Version) 9 , 10 Generator Output (L-Version) Speed Signal Input for Crank Disconnect, Engine Run, and Overspeed sensing. 300VAC max input voltage. Speed sensing input terminals (#9, #10) do not have polarity sensitivity therefore the AC generator output leads can be connected in any polarity configuration.
- Page 11 11 of 28 Low Battery Output closes to +12/24VDC on Low Battery Condition. When a low battery condition is detected this output turns on immediately. When the low battery condition is removed this output remains on for 5s before turning off. Engine Run Output closes to +12/24VDC on Engine Run Condition.
-
Page 12: System Wiring Diagram
12 of 28 Fuel Level sensor or Auxiliary failure input. This sensor can be the resistive type (Sender) or can be the switch type. The proper type of sensor must be selected during GSC300 controller programming. The sender or switch must be connected to ground for proper operation. - Page 13 Figure 2 – GSC300 System Wiring Diagram...
-
Page 14: Back Panel Layout
14 of 28 2.6 Back Panel Layout PRE-HEAT PRE-HEAT NO AUX SWITCH INPUT RELAY TEMP. SWITCH INPUT SPEED SIGNAL PRE-HEAT COM INPUTS OIL SWITCH INPUT REMOTE START INPUT BATTERY GROUND GENERAL FAIL OUTPUT BATTERY GROUND NOT IN AUTO OUTPUT CRANK RELAY ENGINE RUN OUTPUT STARTER OUTPUT... -
Page 15: Controller Operation
15 of 28 3. Controller Operation 3.1 OFF/ AUTO/ RUN Modes On power up the controller defaults to the mode it was in when power was last removed (AUTO or OFF). OFF mode can be entered by pressing the OFF button on the front panel. When the GSC300 is in the OFF mode the “Not In Auto”... -
Page 16: Hour Meter
16 of 28 LOW OIL INPUT: The Low Oil Input can be wired to a resistive sender or from a NO or NC type switch. NO / NC refers to the state of the contacts during normal engine operation (engine oil pressure ok). -
Page 17: Led Layout
17 of 28 3.5 LED Layout Front View of GSC300 Figure 4... -
Page 18: Led Indications
18 of 28 3.6 LED Indications The GSC300 does not have a LED lamp test feature. Table 4 – Front Panel LED Indications LED Appearance Condition/Failure Not in Auto LED is ON. Unit is in OFF state, and automatic starting is disabled No LED’s ON “OFF”, no +12/24VDC to main power terminal. -
Page 19: Programming The Gsc300 Settings
The GSC300 cannot be powered while using the parallel port or USB programmer. The GSC300 could be damaged. Programming the GSC300 requires a special USB programmer supplied by Cattron. The part number is GSC300-USB-PGMR. Detailed instructions on the PC interface are included with the GSC300 Configurator software. A sample interface screen is illustrated on the following page. -
Page 20: Sample Screen From Pc Interface
20 of 28 Sample Screen from PC Interface NOTE: Factory default settings are outlined in the photo below Figure 5... -
Page 21: Troubleshooting Guidelines
21 of 28 5. Troubleshooting Guidelines TROUBLE POSSIBLE CAUSE SUGGESTED ACTION Unit does not operate when Power leads to unit are reversed Confirm correct wiring for ground and +bat, powered to test mode and re-attempt testing. Bad ground connection from engine to Run wire directly from battery - to the controller unit. -
Page 22: Technical Notes And Faq
22 of 28 6. Technical Notes and FAQ 6.1 Controller Memory Clear Time The GSC300 needs 10 seconds for its memory to clear. When the power to the controller is turned off and then back on again without waiting 10 seconds to clear the memory, a loss of speed will may be indicated by the GSC300 (if controller is in AUTO mode and start signal is activated) because the controller remains in run mode and senses that the generator has stopped. -
Page 23: Pull And Hold Coil
Implementing Automatic Start on Low Battery Procedure The customer is responsible for determining the adequacy of this for their application. Cattron does not guarantee this procedure will work in all applications. 1. Connect the low battery output to the start/stop input on the GSC300. When the GSC300 generates a low battery warning this will trigger the remote start and start the generator. -
Page 24: Gcp300 Panel (Optional)
24 of 28 6.6 GCP300 Panel (Optional) The GCP300 is an option that provides AC Voltage and AC current analog gauges with the GSC300 together in an enclosure. AC Voltage and Current Hookup The below drawings explain how to connect to the current transformers and AC voltage lines to the GCP300 in a 3 phase setup. - Page 25 25 of 28 Figure 7 – GCP300 User Terminal Block Label...
-
Page 26: Gsc300 Cutout Template
26 of 28 6.7 GSC300 Cutout Template See below. Not to Scale. - Page 27 NOT TO SCALE...
- Page 28 28 of 28 Notes:...
