Summary of Contents for EASTMAN ES25.6/51.2 Series

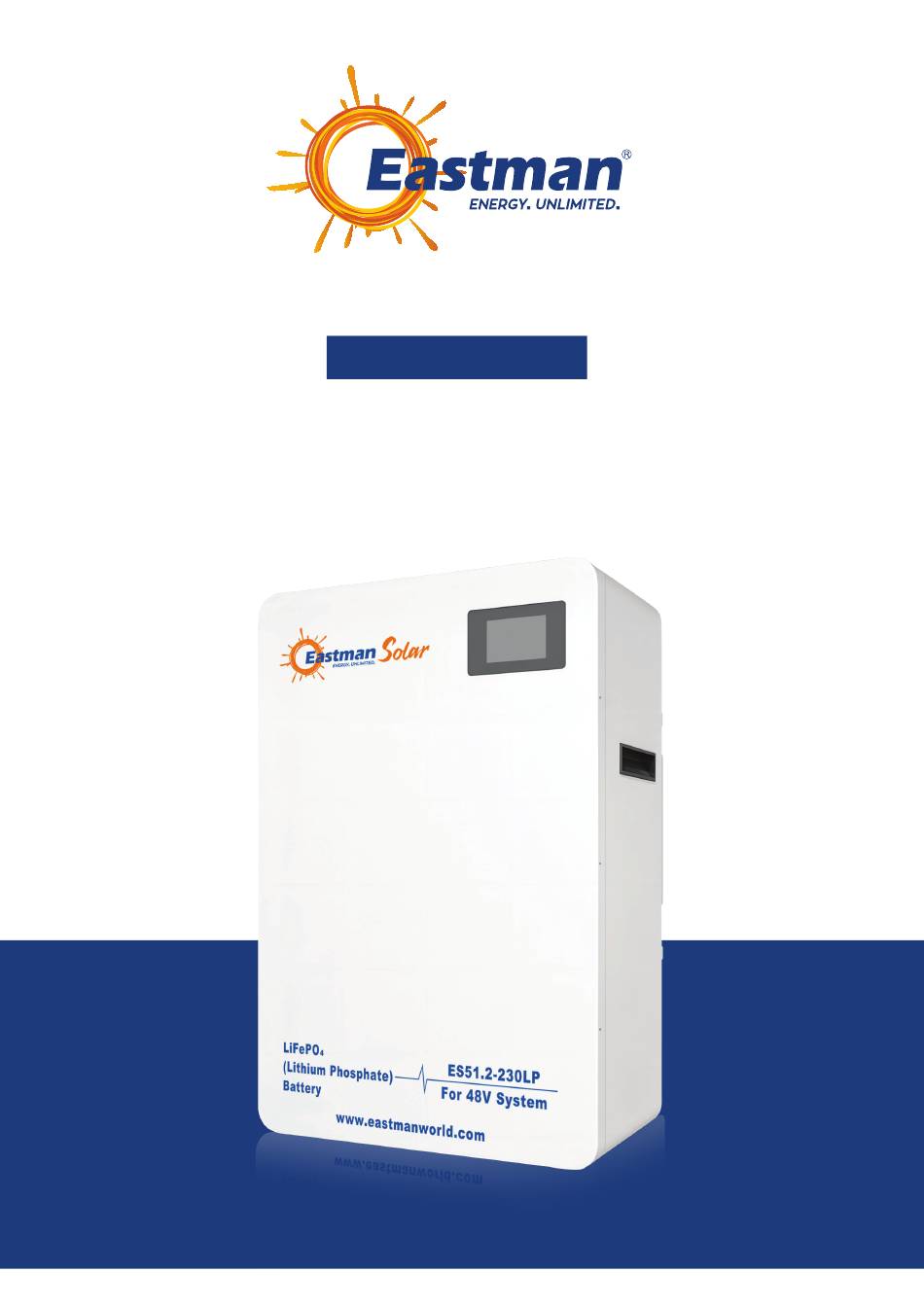

- Page 1 USER MANUAL Energy Storage LiFePO Battery...
- Page 2 Please keep this manual for future reference. This manual contains all the safety installation and operation instructions of the ES25.6/51.2 series energy storage LiFePO4 battery. Please read all instructions and precautions in the manual carefully before installation and use.
-
Page 3: Table Of Contents
Contents 1. Basic information 2. lnstallation process 3. Installation instructions 3.1 Installation notes 3.2 Installation and wiring 3.3 Recommended external wiring diameter and switch selection 3.4 Schematic diagram of the installation 4. Schematic diagram of connecting 9~10 5. LED instructions 11~12 6. -
Page 4: Basic Information
1. Basic information 1.1 Product overview ES25.6/51.2 series energy storage battery is mainly used in the field of household power storage.At the same time, it is also suitable for the internal energy storage of RV, household energy storage and temporary buildings. lt adopts high-performance and long-life lithium iron... -
Page 5: Function Description
1.3 Function description RS485 RS232 RS485 RS485 RESET PUN ALM White face cover Touch screen White cabinet Wall mounted bracket Handle M6/M8 Positive terminal (2pcs) M6/M8 Negative terminal (2pcs) OFF/ON SOC Display: 6 LED indicator with each one indicates about 17% SOC (State of Charge). ◆... -
Page 6: Lnstallation Process
2. Installation process Wall mount bracket Install Wall mounting bracket Screw fixing hole Parallel connection Maximum 15pcs PACK1 PACK2 PACK14 PACK15 Communication Maximum 15pcs ..PACK1(Host) PACK2 PACK14 PACK15 Boot button 3. Installation instructions 3.1 Installation notes Before installation, please read this manual carefully and familiarize the installation steps. -
Page 7: Installation And Wiring
(2) Avoid sunlight direct and rainwater infiltration during outdoor installation to cause battery damage. (3) Do not place metal products near the place of the energy storage LiFePO battery installation to prevent short circuits. (4) Virtual connection points and corroded wires may generate high heat, and the molten insulation layer will burn surrounding materials and even cause a fire. -
Page 8: Schematic Diagram Of The Installation 7~8
3.4 Schematic diagram of the wall mounted installation Warning: Danger of explosion! In order to avoid accidents, do not reverse connect the charging and discharging ports or short circuit, and do not install them in a closed environment. Rain proof and moisture-proof protection must be installed in the outdoor. - Page 9 Picture 1 Picture 2 Wall mount bracket Wall mounting bracket Screw fixing hole Picture 3 Picture 4 As shown in the pictures above: (1) According to the actual situation,first install the wall mounting plate with M8 expansion screw on the wall to ensure that the installation is firm (picture 1). Note: the height of the expansion screw protruding from the wall shall be controlled within 25mm to avoid interference with the battery box during installation (Picture 2).
-
Page 10: Schematic Diagram Of Connecting 9~10
4 Schematic diagram of connecting One unit product ②Two unit products Maximum 15pcs PACK1 PACK2 PACK14 PACK15 More than Two units products ③ www.eastmanworld.com... - Page 11 Maximum 15pcs ..PACK1(Host) PACK2 PACK14 PACK15 ④ Batteries are connected in communication Note： 1.When the battery pack is used in parallel, it is necessary to distinguish different packs by hardware address, and the hardware address of each pack in the whole battery pack is unique. 2.
-
Page 12: Led Instructions 11~12
5. LED instructions Table1 LED working status indication Battery indicator LED State normal/warning/ illustrate protect Shutdown hibernate annihilate extinguish extinguish extinguish extinguish extinguish extinguish normal extinguish standby mode flash 1 Standby According to the battery indicator alert Module low voltage flash 1 flash 3 Always... - Page 13 Table 3 LED flashing description flashing method Bright extinguish 0.25S flash 1 3.75S flash 2 0.5S 0.5S flash 3 0.5S 1.5S Remarks: The LED indicator alarm can be enabled or disabled through the host computer, and the factory default is enabled. 1.
-
Page 14: Bms Communication Settings 13~14
6.BMS communication settings 6.1 BMS communication and setting When the load (such as inverter) needs to communicate with the battery, in order to establish normal communication with the load, BMS needs to set the following settings for each brand. The RS485/CAN communication protocols of inverters are different, but there are several RS485/CAN communication protocols inside the inverter to match the battery. - Page 15 6.2 Communication address selection specification Code switch position Illustrate Address Stand-alone use, no cascade Set to Pack 1 (Host) Set to Pack 2 Set to Pack 3 Set to Pack 4 Set to Pack 5 Set to Pack 6 Set to Pack 7 Set to Pack 8 Set to Pack 9 Set to Pack 10...
-
Page 16: Color Touch Screen Instructions 15~17
7. Color touch screen instructions 1. Boot page 2. Main menu page After power-on activation, the power-on Touch anywhere on the screen to enter interface will be displayed, the main menu page, as shown in the following figure: as shown in the following figure: 3. - Page 17 7. Key description (1) Each page can be accessed through 》,《, or swipe up and down to operate the interface “ ” Press the nine-square grid in the upper left corner to return to the main interface. “ ” Press the battery icon to go into the battery status. (4) In the dormant state, touch anywhere on the screen to activate the display.
- Page 18 9. All date of LCD display CTP28/35-1.1 MIN STATE PAGE PROTOCOL WAIT for 5s， show min state page SO FAR PROTOCOL Shouhang energy storage inverter BMS Total SOC general CAN protocol V 2.1.00220191204 Current GOOD WE PROTOCOL Voltage LV BMS Protocol(CAN) for Solar Inverter Warranty Family EN_V 1.5 PYLON PROTOCOL 2.0...
-
Page 19: Technical Parameter List
8. Technical parameter list Model ES25.6-100LP ES25.6-230LP ES51.2-100LP ES51.2-230LP Array Mode Nominal Energy (KWh) 2.56 5.88 5.12 11.77 Nominal Voltage (V) 25.6 25.6 51.2 51.2 Charge Voltage (V) 29.2 29.2 58.4 58.4 Discharge Cut-off Voltage (V) Standard Charging Current(A) Max.Continuous Charging Current (A) Max.Continuous Discharging Curent (A) Communication Mode RS232/RS485/CAN... -
Page 20: Maintenance And Conservation
9. Maintenance and conservation Problem description Item Possible causes Solution 1. The button is damaged or the 1. Check whether the button is normal; The battery cannot be turned on button cable is disconnected; 2. Check whether the voltage of the battery pack is normal; normally, and there is no response 2. -
Page 21: Warranty Record Card
10. Warranty record card Dear Customers: Hello! Thank you very much for purchasing our products. In order to serve you better, please read and fill in and keep this warranty card after purchasing the product. In order to avoid your worries, our company here by makes a warranty service commitment and provides standardized after sales service accordingly. - Page 22 Energy Storage LiFePO4 Battery www.eastmanworld.com | marketing@eastmanworld.com...
