Page 1

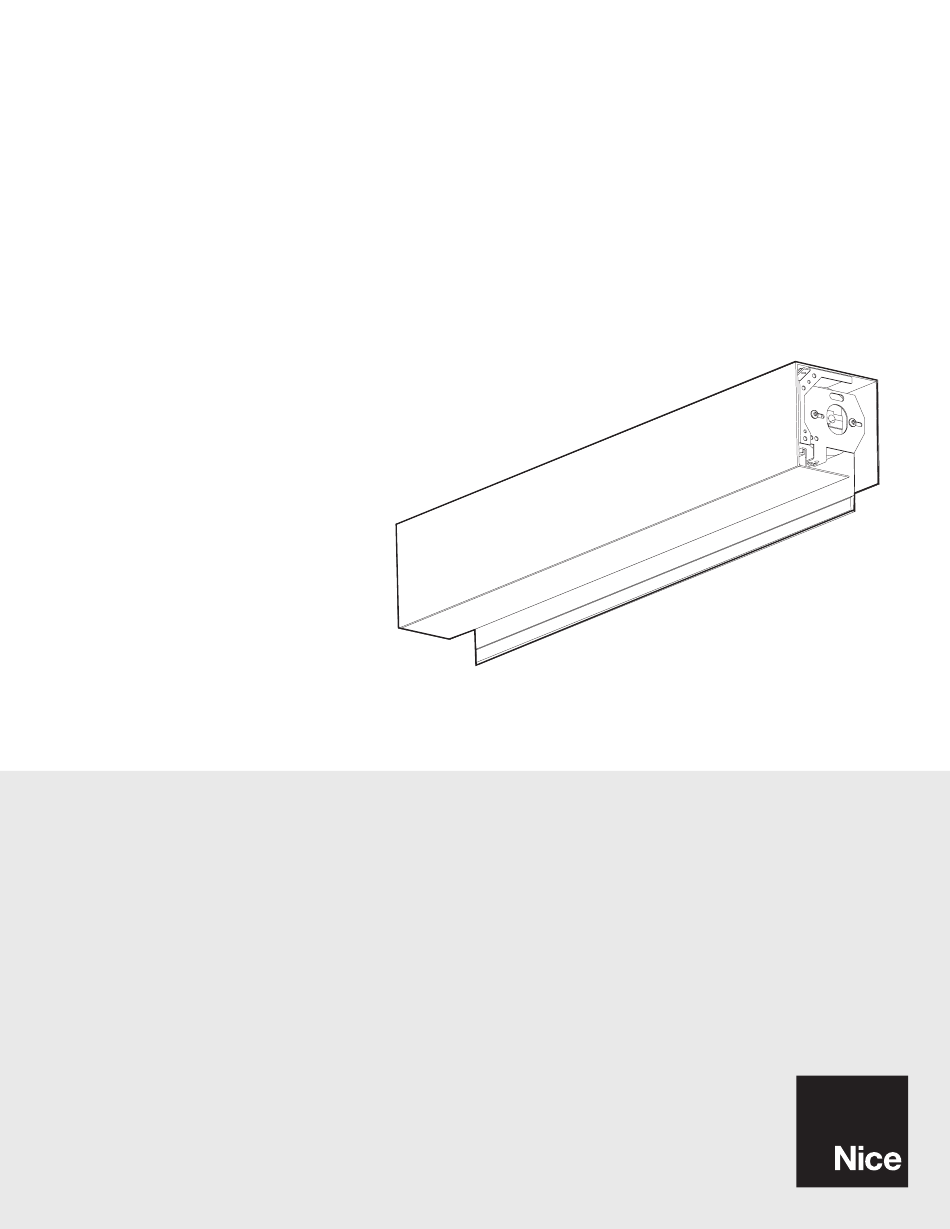

Sun Shade Pocket Mounted Shade Installation Guide...
Page 2

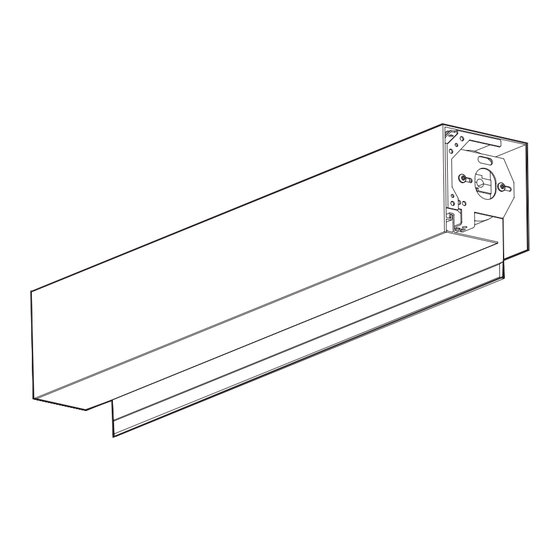

Tools Needed 3-Sided Pocket (1) Pocket, (1) Flap and (2) End Caps (if applicable) Recommended Mounting Screws (#8 x 1.75 in (#8 x 44 mm) Hex head screws) Mount Pocket If End Caps are being used, slide them in the ends of the pockets. End Caps should only be used if the pocket ends will be exposed. Mount the pocket securely using appropriate fasteners.
Page 3
Open Roll Installation Dry Wall or Gypsum Board Sof t (by others) Ceiling 3” 7/8” Closure Hanger 3” Removable with Tile Lip Closer Flap Closure Hanger Removable with Tile Lip Closer Flap 2” 3.5” Pocket 3.5” Closure Flap 2.37”...
