Global Industrial 282486 User Manual

Slim cpu/pc monitor mount bracket
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
User's manual
Customer Service
US: 1-800-645-2986
Slim CPU/PC Monitor Mount Bracket
Part
Description
No.
1
Mount Front
2
Mount Back
3
Knob
4
Strap
5
Pole Mount Bracket
6
Adhesive Pad
Hardware No.
Description
H1
ST3.2x19 Screw
H2
M6x30 Screw
H3
D18 Washer
H4
M6 Nut
Hex Head 5/16-18x5/8 Screw
H5
H6
D8 Spring Washer
H7
M4x10 Screw
H8
M4 Nut
ASSEMBLY INSTRUCTIONS
STEP 1
Remove knobs from mount (1) and separate the mount.
Manual del usuario
Servicio de atención al Cliente
US: 1-800-645-2986
Model #: 282486
Qty
1
1
2
1
1
3
Qty
For Use
4
Desk/ Wall Mount
2
Pole Mount
2
Pole Mount
2
Pole Mount
Orbit Series
4
Orbit Series
4
8
VESA Mount
VESA Mount
4
1
Manuel de l'utilisateur
Service à la clientèle
Canada: 888-645-2986

Advertisement

loading
Need help?

Need help?

Do you have a question about the 282486 and is the answer not in the manual?

Questions and answers

Related Manuals for Global Industrial 282486

Summary of Contents for Global Industrial 282486

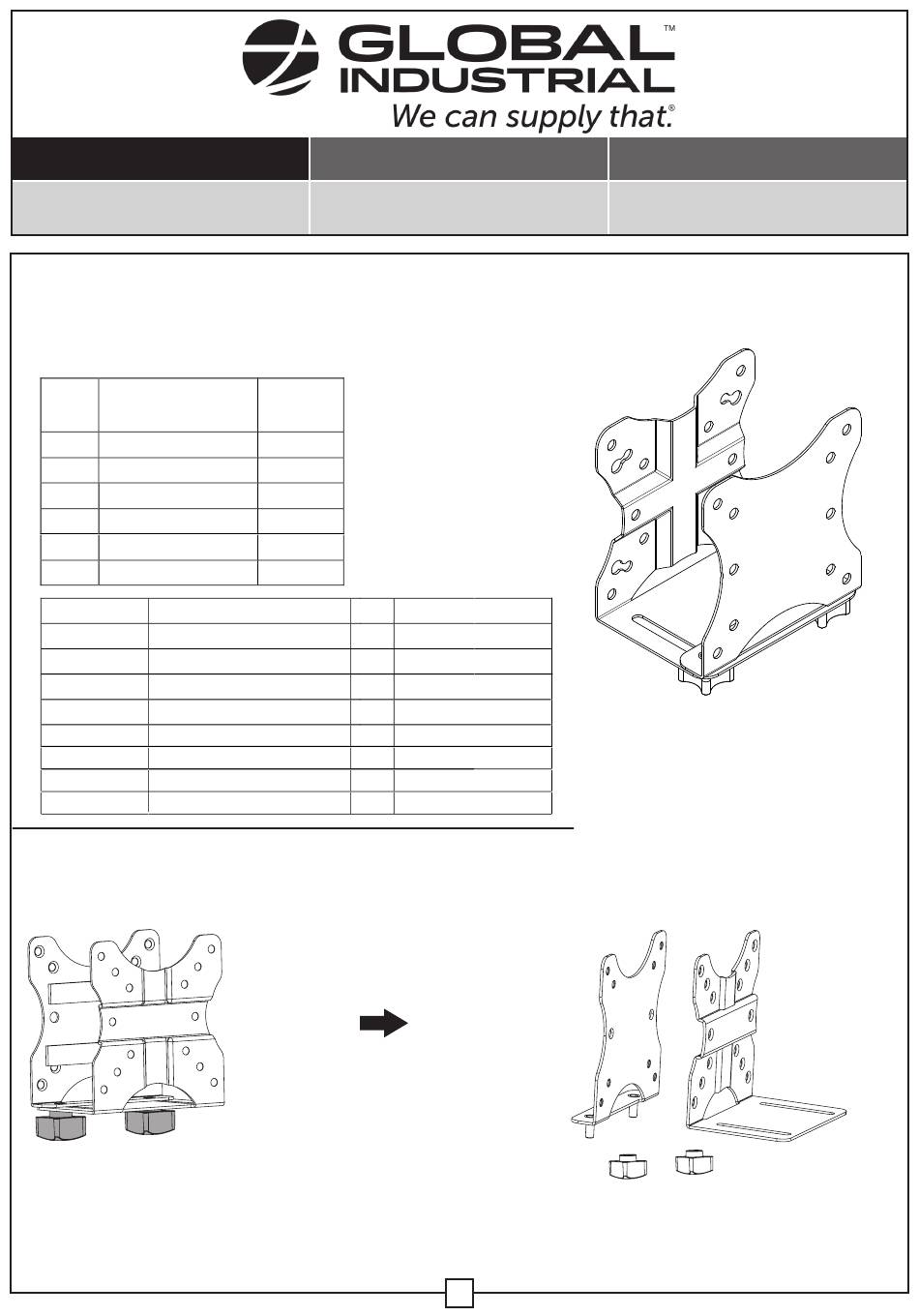

  • Page 1 Manuel de l'utilisateur Customer Service Servicio de atención al Cliente Service à la clientèle US: 1-800-645-2986 Canada: 888-645-2986 US: 1-800-645-2986 Slim CPU/PC Monitor Mount Bracket Model #: 282486 Part Description Mount Front Mount Back Knob Strap Pole Mount Bracket Adhesive Pad Hardware No.
  • Page 2 Product Description MOUNTING OPTIONS OPTION A: ORBIT MOUNT Attach the larger half of mount to Orbit mount (2) using four 5/16-18x5/8 screws (H5) & D8 Spring Washers (H6). Apply one adhesive pad (6) to the assembled mount and two pads to the inner face of the other half (2). OPTION B: VESA MOUNT Attach the smaller half of mount to VESA mount (1) using four M4x10 screws (H7), and M4 nuts (H8).
  • Page 3 Product Description Option B (Continued) If also installing a monitor, with the strap (4) fit into the slot, attach larger half of mount to monitor using four M4x10 screws (H7). Attach halves using knobs (3). Place PC into mount, adjust to fit, and tighten knobs. Secure PC using the strap (4). OPTION C: POLE MOUNT Attach larger half of mount (2) to pole using the pole mount bracket (5), M6x30 screws (H2), D18 washers(H3), and M6 nuts (H4).
  • Page 4 Product Description OPTION D: UNDER DESK MOUNT Apply one adhesive pad (6) to the larger half of mount and two pads to the inner face of the other half. Use outer four holes on mount to mark drilling locations on the underside of the desk.
