GENERAL INFORMATION
The Klarity
Uno™ System is a medical device used for precise positioning and immobilization of patients
®
undergoing radiation therapy treatments.
PRODUCT DESCRIPTION

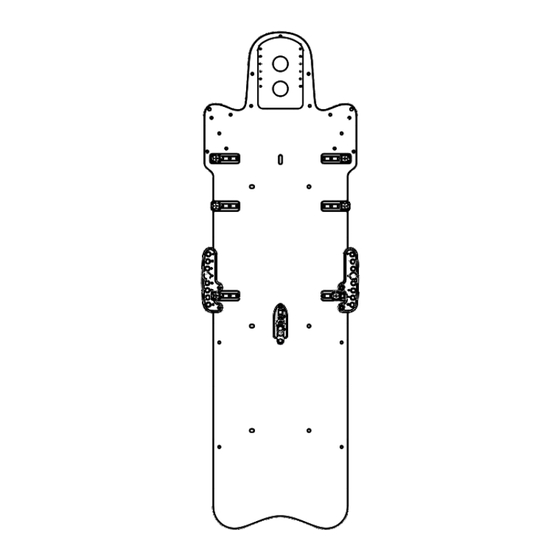

The Klarity Uno™ System is an All-in-One positioning system. It is highly adjustable and customizable and is
suitable for all treatment types. The Uno™ is available in three sizes. Please refer to the website to see the
different size options available.
The Uno™ Baseplate comes as a set with a headrest adaptor, right and left handgrips, a groin lock, and can be
equipped with standard S-type masks as well as Klarity Uno™ Thorax and Pelvic Masks.
Additional configurations are possible, including a Wingboard, Overhead Arm Positioner, SRS Adaptor, Knee
Positioner, Foot Positioner, Complete SBRT Kit, Prone Pelvis System, Prone Breast System, and our exclusive
automatic unlocking system for masks. A storage cart and a tool accessory box are also available.
The Uno™ System is compatible with additional positioning and immobilization tools, including thermoplastic
masks, Klarity Cushions™ and other head supports, vacuum bags, and more. Please see our website for a full
list of compatible accessories at www.klaritymedical.com.
STORAGE AND CLEANING
Store in a clean, dry place away from direct sunlight. Wipe thoroughly with a neutral antiseptic cleaner. Allow to
dry thoroughly before next use.
WARRANTY
1 year.
To be used by a qualified medical professional
IFU-B-018
Keep in a
35˚C
cool and dry
Store below
environment
35˚C (95˚F)
Klarity Uno™ System
R616-SCFA
INSTRUCTIONS FOR USE
- 1 -
Advertisement
Related Manuals for KLARITY Uno
Summary of Contents for KLARITY Uno
- Page 1 The Uno™ is available in three sizes. Please refer to the website to see the different size options available. The Uno™ Baseplate comes as a set with a headrest adaptor, right and left handgrips, a groin lock, and can be equipped with standard S-type masks as well as Klarity Uno™ Thorax and Pelvic Masks.
- Page 2 Prone Breast Positioning Set R616-BE5 R616 Storage Cart R616-CAB R616 Accessory Box R616-GJ - 2 - Klarity Medical Products, LLC Lotus NL B.V EC REP 600 Industrial Parkway Koningin Julianaplein 10, le Verd, 2595AA Heath, OH 43056 The Hague, Netherlands T: 740.788.8107 F: 740-788-8109...
- Page 3 • The baseplate is compatible with pediatric S-type masks for pediatric positioning. • The baseplate is compatible with head and head-and-shoulder S-type masks. It is also compatible with Klarity Uno™ Thorax and Pelvic Masks. Product Name Item ID Quantity Unit...
- Page 4 These holes are for connecting the Overhead Arm Support to the Uno™ Baseplate. A1~A3 are for attaching the baseplate to the couch with an indexing F1~F5 are for the indexing bar. bars to attach the prone breast and prone pelvis cushions.
- Page 5 Instructions for Use 1. Place the baseplate on the couch top and attach with at least two indexing bars. 2. Optional Headrest Adaptor If using, place the Headrest Adapter on the baseplate via the Silverman pins. 3. Optional Hand Grips If using, attach the hand grips to the baseplate by inserting the hand grip bases into the F2 and F3 holes.
- Page 6 Uno™ WingBoard R632-NTCF2 Product Description Wingboard for the Uno™. Consists of baseplate and an adjustable hand grip. Product Specifications • 61cm long, 57cm wide, 0.7cm thick. • Compatible with CT of 70 and above apertures when matched with R616-SCFA. •...
- Page 7 Instructions for Use 1. Place the wingboard on the Uno baseplate. Remove the screws from the ends of the T-hand grip and use those screws to attach the wingboard to the baseplate. 2. T-Hand Grips a. Height: Unlatch the lever to adjust the height between 1-5.
- Page 8 Uno™ Overhead Arm Positioner R616-WCFA Product Description Overhead arm positioning for the Uno™. Consists of baseplate, arm supports, and wrist cups. Product Specifications • 47cm long, 61cm wide, 2.5cm thick. • Compatible with 70cm bore and above. • The right and left wrist cups each have 18 indexing hole options.
- Page 9 Instructions for Use 1. Slide the Overhead Arm Positioner over the head-portion of the Uno Baseplate and lock into place using the Lock Knob. 2. When ready, position the patient as necessary and adjust the arms as follows: Wrist Cups a.
- Page 10 Uno™ SRS Adaptor R616-ACF Product Description Provides head immobilization during stereotactic radiosurgery treatment. Product Specifications • The SRS Frame can be adjusted at -1, 0, or 1 mm. • A foam headrest is included to support the back of the head while the posterior mask is molded.
- Page 11 Instructions for Use 1. Attach the SRS Adaptor to the Uno™ baseplate by connecting the four pins to the baseplate. 2. Use the 0mm frame to mold the SRS mask. Attach the frame by lining the pins up to the holes and press to lock.
- Page 12 Uno™ Knee Positioner R616-L1 Product Description Adjustable knee support and positioning for the Uno™ Product Specifications • The Knee Positioner can be used in combination with any of the Uno™ systems. • The Knee Positioner frame slides up and down and can be placed anywhere along the Uno™...
- Page 13 R616-L3-1 Instructions for Use 1. Place the Foot Positioner on the Uno Baseplate. Slide it to the desired position on the baseplate and lock in place using the toggle locks. 2. When the Foot Positioner is in the desired position, the angle of the cushion can be adjusted at 0°, 10°, 20°, or 30°.
- Page 14 Must be used in conjunction with the R616-SCFA • The Wingboard has two placement options. • The Abdominal Compression Arch, Knee Arch, Knee Positioner, and Foot Positioner can be attached anywhere along the Uno Baseplate. Product Name Item ID Quantity Unit...
- Page 15 Instructions for Use Wingboard: Place the Wingboard on the baseplate. Align the holes at either the W2 or W3 position. Unscrew the knobs from the Handlebar and use those knobs to attach the Wingboard to the baseplate. W2 is recommended for patients under 175cm. W3 is recommended for patients over 175 cm.
- Page 16 Belly Compression : Release the knob to make lateral adjustments. d. Belly Compression : Turn the dial to make height adjustments. - 16 - Klarity Medical Products, LLC Lotus NL B.V EC REP 600 Industrial Parkway Koningin Julianaplein 10, le Verd, 2595AA...
- Page 17 Uno™ Prone Pelvis System R616-AE5 Product Description Prone Pelvic Positioning for the Uno™ System Product Specifications • Maximum Dimensions: 144cm long X 40.5cm wide X 11cm high (excluding leg cushion) • Includes 2 sets of indexing holes with 36cm spacing •...
- Page 18 The prone pelvis cushions can be fixed directly on the treatment couch with indexing bars at H2 and F2. b. The prone pelvis cushions can be fixed to the Uno™ Baseplate with indexing bars at H1 and F3. Please note that due to baseplate height, certain treatment angles will be unavailable.
- Page 19 Uno™ Prone Breast System R616-BE5 Product Description Prone Breast Positioning for the Uno™ System Product Specifications • Dimensions: 149cm long x 41cm wide x 11.3cm (height at the lowest point of the arch) • Includes 2 sets of indexing holes with 28cm spacing •...
- Page 20 The prone breast cushions can be fixed directly on the treatment couch with indexing bars. b. The prone breast cushions can be fixed to the Uno™ Baseplate with indexing bars. Please note that due to baseplate height, certain treatment angles will be unavailable.
- Page 21 Uno™ Storage Cart R616-CAB Product Description For storage of the R616 Uno™ System Product Specifications • 135 x 66 x 143 cm • 55 KG • Max load of 60 KG per tier To be used by a qualified medical professional...
- Page 22 Uno™ Accessory Box R616-GJ Product Description Storage box for maintenance tools. Product Name Quantity Usage/Photo Dual-use screwdriver Maintenance Tool Small straight screwdriver Maintenance Tool Rubber mallet Maintenance Tool Allen key Maintenance Tool Ring spanner Maintenance Tool Tweezers Maintenance Tool Extra M6*20 screws...
