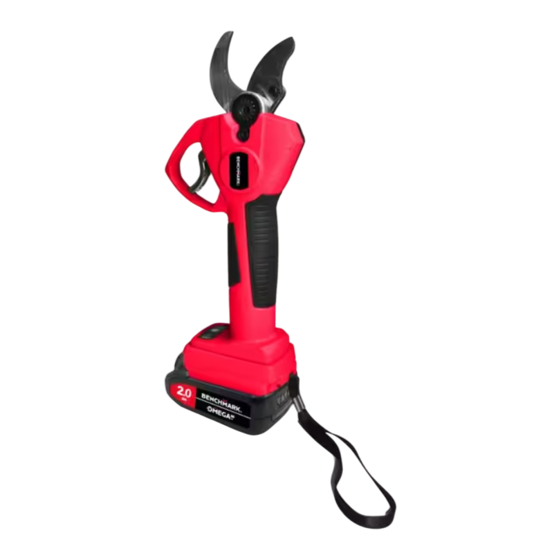

20V MAX BRUSHLESS
PRUNING SHEARS
3 Year Limited Warranty on battery and charger
READ ALL INSTRUCTIONS BEFORE FIRST USE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
KEEP AWAY FROM CHILDREN.
20V Max lithium-ion battery delivers an initial battery voltage
HQ-11270
(measured without a workload) of 20 volts. Nominal voltage is 18V.
WEAR CSA APPROVED
EYE PROTECTION
5 Year Limited Warranty on tool
WEAR EAR
PROTECTION
5240-055
WEAR A
FACE MASK
Advertisement
Table of Contents
Related Manuals for Benchmark 5240-055
Summary of Contents for Benchmark 5240-055
- Page 1 20V MAX BRUSHLESS PRUNING SHEARS 5240-055 5 Year Limited Warranty on tool 3 Year Limited Warranty on battery and charger READ ALL INSTRUCTIONS BEFORE FIRST USE. KEEP THIS MANUAL FOR FUTURE REFERENCE. KEEP AWAY FROM CHILDREN. 20V Max lithium-ion battery delivers an initial battery voltage HQ-11270 (measured without a workload) of 20 volts.
-
Page 2: Product Specifications
PRODUCT SPECIFICATIONS 20V MAX BRUSHLESS PRUNING SHEARS Rated voltage Max cutting capacity 1-3/16' (30mm) Max Power 600W Weight 3.5 lbs (1.6 kg) BATTERY AND CHARGER Battery voltage 20V 2 Ah Li-ion (Maximum charged battery voltage, measured without load, is 20V with a nominal value of 18V) Charger Up to 70 minutes Replacement battery... -
Page 3: Table Of Contents
5240-055 20V MAX BRUSHLESS PRUNING SHEARS TABLE OF CONTENTS .................. 1 Table of Contents ..................2 General Power Tool Safety Warnings ............. 3-5 Tool Specific Safety Rules ................5-6 Battery Use and Care ..................7 Maintenance & Storage ................. 8 Battery Pack &... -
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING: Before using this tool or any of its accessories, read this manual and follow all Safety Warnings and Operating Instructions. The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible situations. - Page 5 5240-055 20V MAX BRUSHLESS PRUNING SHEARS GENERAL POWER TOOL SAFETY WARNINGS CONT'D Warning: To reduce the risk of injury, the user must read and understand the operator's manual before using this product. Read all safety warnings, instructions, illustrations and specifications provided with this power tool.
-
Page 6: Tool Specific Safety Rules
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. • Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. - Page 7 5240-055 20V MAX BRUSHLESS PRUNING SHEARS • Do not use the tool in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning. • Keep all power cords and cables away from cutting area. Power cords or cables may be hidden and can be accidentally cut by the blade.
-
Page 8: Battery Use And Care
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. • Use the power tool, accessories and tool bits etc. in accordance with these instruc- tions, taking into account the working conditions and the work to be performed. -
Page 9: Maintenance & Storage
5240-055 20V MAX BRUSHLESS PRUNING SHEARS MAINTENANCE AND STORAGE WARNING: To avoid serious personal injury, always remove the battery pack from the tool when cleaning or performing any maintenance. WARNING:Always protect hands by wearing heavy gloves and/or wrapping the cutting edges of the blade with rags and other material when performing blade maintenance. -
Page 10: Battery Pack & Charger Safety
BATTERY PACK & CHARGER SAFETY BATTERY SAFETY INSTRUCTIONS WARNING: Use this tool only with the specifically designated battery pack. Use of any other battery pack may create a risk of injury and fire. another battery pack. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery. -
Page 11: Charger Safety Instructions
5240-055 20V MAX BRUSHLESS PRUNING SHEARS 11. Do not disassemble the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted. Ensure fresh air and seek medical assistance in the event of discomfort. -
Page 12: Battery Pack Recycling
15. Do not operate the charger with a damaged cord or plug, which could cause cause a short circuit and electric shock. If damaged, immediately discontinue use. Replace the charger with the identical unit as listed in the Product it must be replaced by the manufacturer, a customer service agent of the same 16. -
Page 13: Safety Symbols
5240-055 20V MAX BRUSHLESS PRUNING SHEARS SYMBOLS WARNING: Some of the following symbols may appear on the tool. Study these symbols and learn their meaning. Proper interpretation of these symbols will allow Three-phase alternating Volts current with neutral Amperes Read all documentation... -
Page 14: Know Your 20V 20V Max Brushless Pruning Shears
KNOW YOUR 20V MAX BRUSHLESS PRUNING SHEARS Movable blade Fixed blade Latch pin Oil Inlet Trigger Power Switch LED light indicator Battery Battery Charger 5350-010 Air vents Red LED Green LED... -
Page 15: Assembly And Operation
5240-055 20V MAX BRUSHLESS PRUNING SHEARS ASSEMBLY AND OPERATION CHECKING THE BATTERY CHARGE STATUS The level of charge remaining in the battery can be checked by using the battery LED power indicator that is contained on the end of the battery. - Page 16 NOTE: a) When the charger is plugged into the wall receptacle and NO battery is on the charger, the green indicator light (5)(Fig.2) will turn ON indicating the charger is “live”. b) When a discharged battery is installed on the charger, the green indicator light will turn OFF and the red indicator light (6) (Fig.
- Page 17 5240-055 20V MAX BRUSHLESS PRUNING SHEARS WARNING: Always remove the battery from the pruner for all operations other than trimming. MOST IMPORTANTLY, REMEMBER TO DO SO WHEN SHARPENING OR LUBRICATING. Check that the blade is correctly tightened before each use.
-
Page 18: Blade Tightening
FIG.5 FIG.6 FIG.7 BLADE TIGHTENING WARNING : YOU MUST REMOVE THE BATTERY FROM THE PRUNING SHEARS BEFORE TIGHTENING THE BLADES. Check to ensure the blades are tight before each use. A well tightened blade should not move from left to right. If the blade is correctly tightened you should be able to close the pruning shears manually (without forcing). - Page 19 5240-055 20V MAX BRUSHLESS PRUNING SHEARS CHANGING THE BLADE (CONT'D) SHARPENING THE BLADE WARNING :YOU MUST REMOVE THE BATTERY FROM THE PRUNING SHEARS BEFORE SHARPENING THE BLADES. WARNING: ALWAYS PROTECT HANDS BY WEARING HEAVY GLOVES WHEN HANDLING THE BLADES. CONTACT WITH THE BLADES COULD RESULT IN SERIOUS PERSONAL INJURY.
- Page 20 DISENFECTING THE BLADES WARNING : YOU MUST REMOVE THE BATTERY FROM THE SHEARS BEFORE DISINFECTING THE BLADES. Pruning tools should be disinfected to prevent the spread of pathogens among plants. Although it is not always practical to handle disinfectants when making multiple cuts on the same tree or pruning several trees or shrubs, it will minimize plant loss.
-
Page 21: Exploded View
5240-055 20V MAX BRUSHLESS PRUNING SHEARS EXPLODED VIEW... -
Page 22: Parts List
PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the tool. Any attempt to repair or replace electrical parts on this tool may create information, call the Toll-free Helpline, at 1-866-349-8665 –... -
Page 23: Warranty
WARRANTY BENCHMARK WARRANTY FOR BRUSHLESS PRUNING SHEARS If this Benchmark tool fails due to a defect in material or workmanship within five years from the date of purchase, return it to any Home Hardware store with the original bill of sale for exchange. Three year warranty for the battery and charger. - Page 24 20V MAX BRUSHLESS PRUNING SHEARS 5240-055 5 Year Limited Warranty on tool 3 Year Limited Warranty on battery and charger 5240-055 BENCHMARK TOOLS CANADA Made in China ST. JACOBS, ONTARIO N0B 2N0 © 2023 Home Hardware Stores Limited CUSTOMER SERVICE/TECH SUPPORT 1-866-349-8665 * This Benchmark product carries a five (5) year LIMITED warranty against defects...
