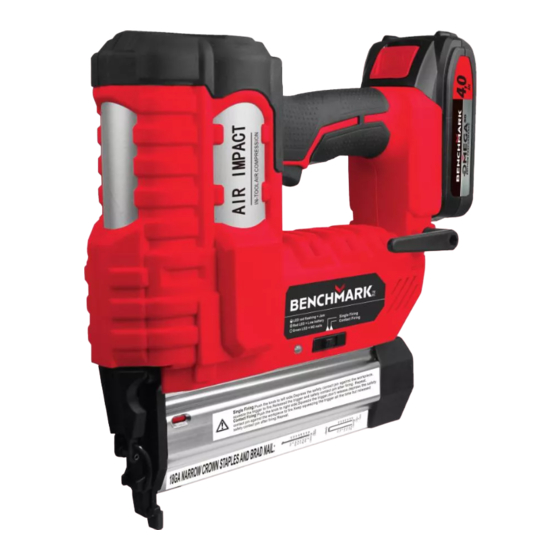

20V MAX 2" BRUSHLESS
NAILER / STAPLER
E114847
DBBF5040BRUSHLESS
WEAR CSA APPROVED
EYE PROTECTION
Includes 1 battery & 1 charger
5 Year Limited Warranty on tool
3 Year Limited Warranty on battery and charger
READ ALL INSTRUCTIONS BEFORE FIRST USE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
KEEP AWAY FROM CHILDREN.
Maximum initial battery voltage (measured without a load)
is 20 volts. Nominal voltage is 18 volts.
WEAR EAR
PROTECTION
WEAR A
FACE MASK
Advertisement
Table of Contents
Related Manuals for Benchmark 1282-400
Summary of Contents for Benchmark 1282-400
- Page 1 20V MAX 2" BRUSHLESS NAILER / STAPLER Includes 1 battery & 1 charger 5 Year Limited Warranty on tool 3 Year Limited Warranty on battery and charger READ ALL INSTRUCTIONS BEFORE FIRST USE. KEEP THIS MANUAL FOR FUTURE REFERENCE. KEEP AWAY FROM CHILDREN. E114847 Maximum initial battery voltage (measured without a load) DBBF5040BRUSHLESS...
-
Page 2: Product Specifications
PRODUCT SPECIFICATIONS NAILER/STAPLER Voltage 18G Brad Nails Up to 2” (50mm) 18G Staples Up to 1-9/16” (40mm) Magazine Capacity 100 Nails or Staples Shots per Minute Shots/full charge Weight 6.2 lb. (2.8Kg) BATTERY & CHARGER Battery voltage 20v 4.0Ah Li-ion (Maximum charger battery voltage, measured without load, is 20v with a nominal value of 18v) Charger... -
Page 3: Table Of Contents
1282-400 20V MAX 2" BRUSHLESS NAILER / STAPLER TABLE OF CONTENTS Product Specifications .................. 1 Table of Contents ..................2 General Safety Warnings ................3-6 Specific Safety Rules .................. 7-8 Symbols ......................9 Know your Nailer/Stapler ................10 Assembly and Operating ................. 11-17 Maintenance .................... -
Page 4: General Safety Warnings
GENERAL SAFETY WARNINGS WARNING: Before using this tool or any of its accessories, read this manual and follow all Safety Rules and Operating Instructions. The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible situations. It must be understood that common sense and caution are factors which cannot be built into the product. - Page 5 1282-400 20V MAX 2" BRUSHLESS NAILER / STAPLER WORK AREA SAFETY Keep work area clean and well lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
- Page 6 Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 7 1282-400 20V MAX 2" BRUSHLESS NAILER / STAPLER BATTERY TOOL USE AND CARE a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
-
Page 8: Specific Safety Rules
SPECIFIC SAFETY RULES WARNING: Know your nailer/stapler. Do not use the nailer/stapler until you have read and understand this Instruction Manual. Learn the tool’s applications and limita- tions, as well as the specific potential hazards related to this tool. Following this rule will reduce the risk of electric shock, fire, or serious injury. - Page 9 1282-400 20V MAX 2" BRUSHLESS NAILER / STAPLER compression and the fastener may be forcefully discharged while attempting to free a jammed condition. Do not use this tacker for fastening electrical cables. It is not designed for electric cable installation and may damage the insulation of electric cables thereby causing...
-
Page 10: Symbols
SYMBOLS WARNING: Some of the following symbols may appear on the nailer/stapler Study these symbols and learn their meaning. Proper interpretation of these Volts Three-phase alternating current with neutral Amperes Hertz Direct current Watts No load speed Kilowatts Alternating or direct current Microfarads Class II construction Litres... -
Page 11: Know Your Nailer/Stapler
1282-400 20V MAX 2" BRUSHLESS NAILER / STAPLER KNOW YOUR NAILER/STAPLER Trigger Cylinder LED light ON/OFF switch Battery Pack Belt Hook Depth Single/ Adjustment Contact Wheel Firing switch Safety button Safety Contact Pin LED indicator Magazine Charger 5350-010 Battery 5350-011... -
Page 12: Assembly And Operating
CHECKING THE BATTERY CHARGER STATUS The level of charge remaining in the battery can be checked by using the battery LED power indicator that is contained on the end of the battery. NOTE: The battery charge remaining may be checked while the battery is installed in the tool with the ON/OFF switch turned OFF. - Page 13 1282-400 20V MAX 2" BRUSHLESS NAILER / STAPLER 4. See below for other indicator light functions. 5. A discharged battery pack should be fully charged in approximately 2 hrs. 6. It is normal for the battery charger to hum and be warm to the touch during operation.
- Page 14 INTENDED USE Ideal for fastening decorative molding, casing, kitchen crown, and shoe molding. Fasten insulating material, upholstery, leather, fabrics, foils, cardboard, and similar materials onto wood, including building furniture, without swinging a hammer. Tackle jobs both large and small with the features of a pneumatic tool and the freedom of cordless.
- Page 15 1282-400 20V MAX 2" BRUSHLESS NAILER / STAPLER 6. Nails are placed against the profiled side of the rail, with the points of the nails facing downwards. 7. Close the magazine cover until it engages with the release button. 8. Re-insert the battery pack into the nailer stapler.
- Page 16 Step 2: Squeeze the trigger and keep squeezing. Do not release trigger. Step 3: Squeeze the trigger to fire the staple or nail; Release the trigger and safety contact pin after firing. Firing next staple or nail, repeat step 2 and step 3. The safety contact pin must be depressed before the trigger is squeezed.
- Page 17 1282-400 20V MAX 2" BRUSHLESS NAILER / STAPLER Step 2: Squeeze the trigger and keep squeezing-do not release trigger. Step 3: Depress the safety contact pin against the work piece to fire the nail or staple; Continue squeezing the trigger but release the safety contact pin after firing.
-
Page 18: Maintenance
NOTE: You must remove any jammed nail/staple before using the tool, otherwise, you may cause damage to the mechanism or be injured. WARNING: Remove the battery pack from the tool. 1. Open the magazine, identify the jammed nail/ staple (these can be identified usually due to them being out of position). -
Page 19: Exploded View
1282-400 20V MAX 2" BRUSHLESS NAILER / STAPLER EXPLODED VIEW... -
Page 20: Parts List
For more information, call the Toll-free Helpline, at 1-866-349-8665. Key # Part # Part Name Quantity 1282-400-1 Screw M4X6 1282-400-2 Small Oscillating Bar 1282-400-3 Shaft 1282-400-4... - Page 21 1282-400 20V MAX 2" BRUSHLESS NAILER / STAPLER 1282-400-32 Magnetic Cylinder 1282-400-33 Iron Bar 1282-400-34 Pin Ø3X9.5 1282-400-35 Needle 1282-400-36 Hall A Cover 1282-400-37 Hall A 1282-400-38 1282-400-39 Screw M4X16 1282-400-40 Upper Cover 1282-400-41 Sealing Ring 1282-400-42 Cylinder Cover 1282-400-43...
- Page 22 1282-400-69 Annular Ring B 1282-400-70 Washer 1282-400-71 Screw M4X8 1282-400-72 Motor Cover 1282-400-73 Pin Ø2.5X44 1282-400-74 Gear Shaft 1282-400-75 Motor 1282-400-76 Motor 1282-400-77 Lower Housing 1282-400-78 Screw M4X15 1282-400-79 Hook 1282-400-80 Screw M4X65 1282-400-81 Nut M4 1282-400-82 Electrode Plate 1282-400-83...
- Page 23 1282-400 20V MAX 2" BRUSHLESS NAILER / STAPLER 1282-400-106 Iron Lever 1282-400-107 Fixing Pin 1282-400-108 Cover 1282-400-109 Fixing Pin 1282-400-110 Screw M5X14 1282-400-111 Screw M4X16 1282-400-112 Muzzle 1282-400-113 Fixing Cartridge 1282-400-114 Long iron rod 1282-400-115 Vertical Plate 1282-400-116 Screw M4X8...
-
Page 24: Warranty
WARRANTY BENCHMARK 20V MAX 2" BRUSHLESS NAILER / STAPLER If this Benchmark tool fails due to a defect in material or workmanship within five years from the date of purchase, return it to any Home Hardware store with the original bill of sale for exchange. 3-year warranty for the battery and charger. This warranty does not include expendable parts including but not limited to blades, brushes, belts, light bulbs. - Page 25 1282-400 20V MAX 2" BRUSHLESS NAILER / STAPLER...
- Page 26 Includes 1 battery & 1 charger 5 year limited warranty on tool 3 year limited warranty on battery and charger 1282-400 BENCHMARK TOOLS CANADA Made in China ST. JACOBS, ONTARIO N0B 2N0 © 2021 Home Hardware Stores Limited CUSTOMER SERVICE/TECH SUPPORT...
Need help?
Do you have a question about the 1282-400 and is the answer not in the manual?
Questions and answers
Just bought a brand new Benchmark 20V Max 2" Brushless Nailer/Stapler; It doesn't work. I fully charged the battery, put in one inch Benchmark nails and it doesn't work. I will take it back to the store tomorrow!
If the Benchmark 20V Max 2" Brushless Nailer/Stapler is not working despite a fully charged battery and using one-inch Benchmark nails, possible reasons include:
1. Incorrect loading of nails: Nails must be placed against the profiled side of the rail, with the points facing downwards. Improper placement can prevent the tool from firing.
2. Magazine not properly closed: The magazine cover must be fully closed and engaged with the release button.
3. Defective or damaged nails: Even if they are the correct size, damaged nails may jam the tool.
4. Tool safety mechanism engaged: The contact pin must spring back properly. If not, the trigger will not activate the firing mechanism.
5. Tool malfunction or defect: If all procedures are correct and the tool still does not work, it may have a defect in material or workmanship.
6. Battery issue despite charge: A battery may show as charged but still be non-operational due to internal defects. The red indicator light ON with a fully inserted battery may signal this.
7. Operating temperature out of range: If the tool or battery is used in temperatures below 5°C (41°F) or above 40.5°C (105°F), it may not function properly.
