Azeron CYRO Manual

Hide thumbs Also See for CYRO:

Advertisement

Quick Links

Download this manual
Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the CYRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Azeron CYRO

Summary of Contents for Azeron CYRO

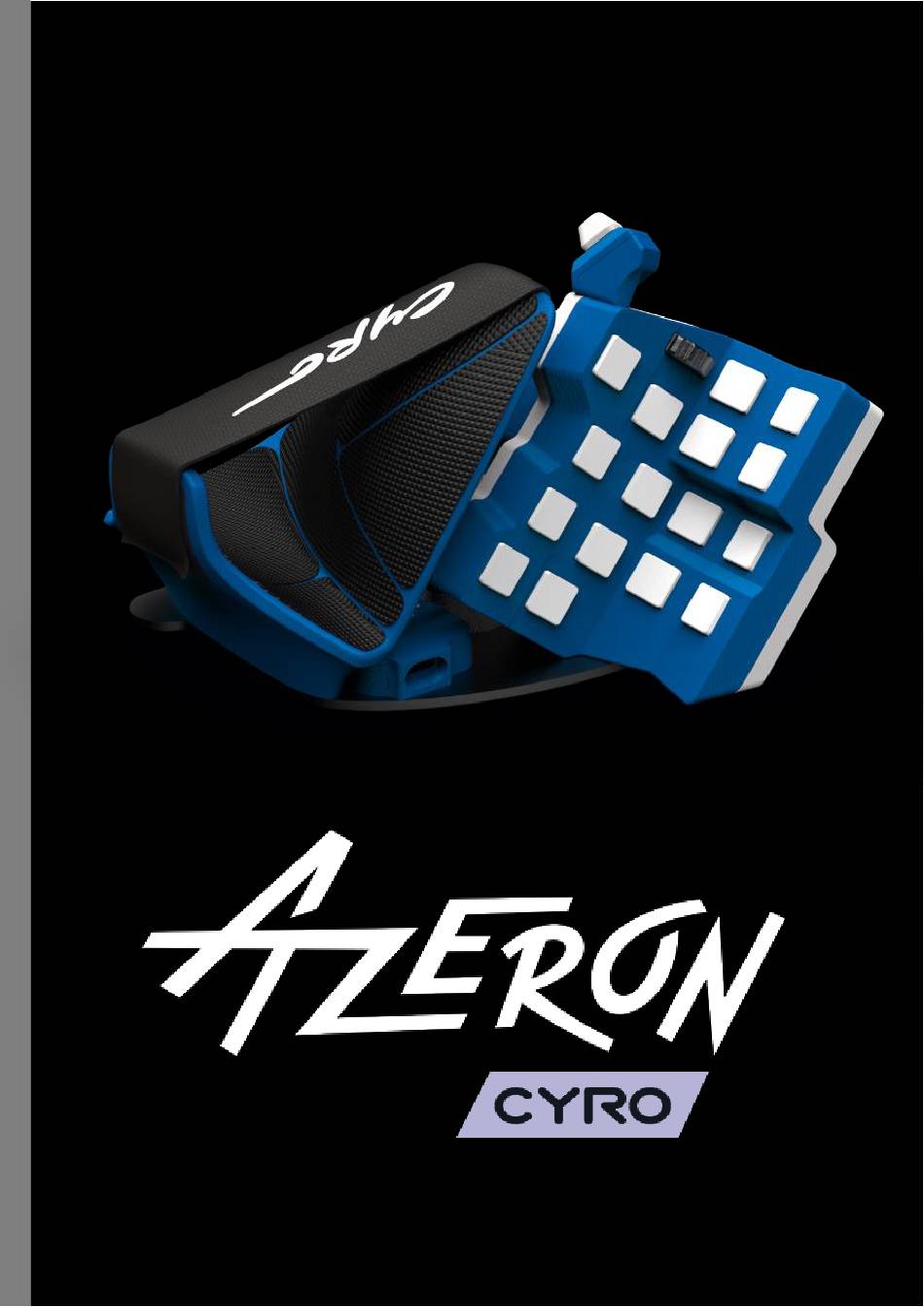

  • Page 1 Manual...

  • Page 2: Table Of Contents

    Contents INTRODUCTION ......................... 3 PACKAGE CONTENTS ......................4 DEVICE LAYOUT ......................... 5 ADJUST YOUR AZERON CYRO ................... 6 INSTALLING SOFTWARE ....................8 HOW TO USE AZERON SOFTWARE ................. 14 5.1. INTERFACE OVERVIEW ....................14 5.2. KEYBIND SETUP ......................15 5.2.1. Keyboard mode ....................16 5.2.2.
  • Page 3 7. TROUBLESHOOTING ......................50 7.1 DEVICE IS NOT RECOGNIZED ..................50 7.1.1 LED lights ON ......................50 7.1.2 LED lights OFF ......................51 USB chime when connecting ....................51 No USB chime when connecting ..................53 7.2 BUTTON ISSUES ......................54 7.2.1 Button physically stuck ....................

  • Page 4: Introduction

    The main advantage of the Azeron Cyro is the ability to move in game character with one finger – the thumb (either in 360° mode or in WASD...

  • Page 5: Package Contents

    1. PACKAGE CONTENTS  Azeron Cyro  Screwdriver for adjustments  2 thumbstick replacement caps  Metal restrictor ring  Silicon USB cable (2m / 6ft 7in)  Quick guide  Elastic hand strap Page | 4 | Manual...

  • Page 6: Device Layout

    2. DEVICE LAYOUT Page | 5 | Manual...

  • Page 7: Adjust Your Azeron Cyro

    3. ADJUST YOUR AZERON CYRO By using the included Hex screwdriver, it is possible to adjust button and thumb module positions for your hand. Page | 6 | Manual...
  • Page 8 You can swap included thumbstick caps and put on or off the restrictor ring, just by pulling the cap off with a little force: Or if you have chosen the Elite thumbstick, you can swap the magnetic caps easily and adjust the thumbstick tension with the included tool. Page | 7 | Manual...

  • Page 9: Installing Software

    4. INSTALLING SOFTWARE First you need to check if your computer recognizes Azeron device. Plug in USB cable in PC. Go to Start – Control Panel – Devices and Printers, and see if under Devices shows up Azeron Keypad. If it doesn’t, and the LED lights are not turning on, make sure the USB cable is connected to the keypad properly.
  • Page 10 Go to the directory where you downloaded the software, then double click on Azeron-setup-vX.XX.X to install the software. Sometimes Windows may prevent installation, because it is a new software it doesn’t recognize: Just click on the “More info”...
  • Page 11 When opening Azeron software, there are 4 options what could show up: A) When opening software, it may show this screen: It means that the device requires firmware update. Click on “Update” at the bottom right corner. There will be a loading animation as it downloads the newest version.
  • Page 12 B) The second possible option when software opens up will look like this: That means that everything is ready, the software and PC recognize the device and everything is up to date. You are ready to configure your Cyro to your liking and start gaming.
  • Page 13 It means, that the software cannot find the Azeron device. First of all, make sure you have plugged in the USB cable fully in the Cyro. If you are using non original cable, make sure you are using a USB-C cable...
  • Page 14 D) Another option is when software is asking to choose the device you want to setup, if you have plugged in multiple Azeron devices. Choose Azeron Cyro, if you wish to configure your Cyro device or unplug the other devices and leave only the Cyro.

  • Page 15: How To Use Azeron Software

    On-board profiles are saved in the device memory (so you can use the keypad on other PC or consoles and it will work with the saved settings). If you are using only on-board profiles, then Azeron software doesn’t need to be opened while gaming, it is used just to setup buttons.

  • Page 16: Keybind Setup

    5.2. KEYBIND SETUP When pressing button on the device, the corresponding button will light up in the Azeron software and execute the keybind. To setup buttons, with your mouse click on the button you wish to setup, then on the popup window choose between several modes.

  • Page 17: Keyboard Mode

    5.2.1. Keyboard mode For keyboard mode you can setup a keyboard button to be used on Azeron Cyro. It is also possible to setup button combinations on one key press (for example, Shift + Ctrl + Alt + E). Only buttons not possible to setup currently are Right side modification buttons, they will always default to the Left side Shift, Ctrl or Alt.

  • Page 18: Mouse Mode

    XIM device (or similar adapter), then you need to setup all buttons as joystick buttons. Upon receiving your Azeron keypad or after reinstalling firmware by default the second profile in on-board memory will have all buttons setup as generic joystick buttons. So you can use Azeron on console via XIM adapter straight out of box.

  • Page 19: Joystick D-Pad Mode

    5.2.5. Joystick D-pad mode In Joystick D-Pad mode the button can be setup as any function of the D- Pad (Up, Right, Down Left, Left, and also diagonally, for example Right Up or Left Down). This also will act as direct input of generic gaming controllers.

  • Page 20: Mouse Wheel

    The higher the number the faster it will scroll up. 5.2.8 Media keys Choose Media keys if you want to control your music, videos or PC volume with the Cyro. Page | 19 | Manual...

  • Page 21: Profile Switch

     Next  Previous 5.2.9. Profile switch You can setup any of the Cyro buttons to act as a profile switch. While holding the profile switch, you can scroll the mouse wheel to switch between profiles in the on-board memory (or favorite profiles in the software).

  • Page 22: Layering

    For example, in the picture above, we are editing button #12 as a switch button and we will set it up to switch to another software profile, which is called “ED2”. Now when pressing button #12 on the Cyro, the software will switch to profile named “ED2” and will use the keybinds that are stored there.
  • Page 23 If we choose ON at the option “Switch held binds on layer change” then the held keys from the current profile binds will be released and the new profile binds for the pressed keys will automatically be pressed on profile change. For example, if on Profile 1 we hold button A, it spams AAAAAA, then we press profile switch button without releasing A, then it will start to spam BBBBBB from the Profile 2.
  • Page 24 3. Then under Layering Select Profile 2, which will act as our 2nd layer for buttons. 4. Turn ON the option “Set profile button #1 to switch back to current profile” to be able to switch back to Profile 1 with the same button.

  • Page 25: Macro

    5.2.13. Macro This mode is not available in On-board memory profile! It is possible to setup macros on device buttons. When choosing Macro mode for the button, it is possible to program several sequential keyboard keypresses, mouse buttons and delays in the sequence you wish. You can also choose how long is the keypress and delays in milliseconds (avoid using too small values for delays and keypresses, otherwise it may not register).

  • Page 26: No Action Mode

    You can also change the default macro duration in the settings: 5.2.14. No action mode Right click on the button to delete any keybind on it and make it “empty” and do nothing. Or press “Unbind All” at the top to remove all keybinds and labels in current profile.

  • Page 27: Button Labels

    5.2.15. Button labels You can setup custom names for each button for easier overview of your keybinds. Similar to this (white color is keybinds, darker color is custom button names): To setup custom name - click on the button and then write the name in field “Custom name”: In the software Settings under Appearance you can choose to:...

  • Page 28: Advanced Settings - Release Behavior

    5.2.16. Advanced settings – Release behavior By opening the advanced section, it is possible to specify how the button will be released after it is pressed down. It has 2 modes – on second press and time out. On second press – if this is activated then the keybind will be pressed down and held...

  • Page 29: Calibrating Thumbstick

    5.3. CALIBRATING THUMBSTICK If you will be using your Cyro for the first time or just recently reinstalled software or firmware, then you need to calibrate the thumbstick. The analog joystick deadzones are calibrated independently of profiles, and are saved on the hardware. The calibration will get rid of jitter, drift and incorrect center offset.
  • Page 30 There are 3 types of calibration settings: Standard calibration process involves reading the maximum values your analog stick can generate. Adds upper and lower deadzones, calculates center offset. Center offset calculates the center offset based on the maximum and minimum analog stick axis values. Recommended for hall effect joystick owners with restrictor ring.

  • Page 31: Restrictor Ring

    2. Put on the restrictor ring, concave part downwards. 3. Put on the thumbstick cap back on. 4. In Azeron software go to Settings – Analog settings - Calibrate 5. Go through the Calibration process with Standard or Center offset method.

  • Page 32: Thumbstick Setup

    5.5. THUMBSTICK SETUP Thumbstick has several modes – it can act as:  analog stick  emulate keyboard buttons  hybrid mode  analog mouse wheel  move mouse cursor Xbox360 joystick will work the same as an Xbox controller analog stick. It has 360°...
  • Page 33 In Keyboard mode analog stick will work in 8 directions with keybinds provided for 4 directions, such as WASD or similar. If you move the thumbstick in diagonal between W and D, then it will work as W+D at the same time (if it does not, you need to calibrate the thumbstick).
  • Page 34 In analog mouse wheel mode, the thumbstick will work as vertical and horizontal mouse wheel. If you move the thumbstick forward and back, it will act as a vertical mouse wheel. If you move the thumbstick left or right, then it will act as a horizontal mouse wheel. It also reacts on how far the thumbstick has been moved by scrolling faster or slower.
  • Page 35 (even your cat sneezing) and it may have a flickering motion in Azeron software and a character in video game may move around even if you are not touching the thumbstick. In that case you need to set the lower deadzone value higher until it stops moving by itself (for example something between 2%-13% is a good value or 10 –...
  • Page 36 If you are not sure what deadzone settings you should use, just go through the Calibrate Deadzones wizard, and the software will choose the best settings for your thumbstick. See 5.3. CALIBRATING THUMBSTICK Sensitivity setting controls how sensitive thumbstick feels. The lower the value the more sensitive is the thumbstick.

  • Page 37: Advanced Thumbstick Settings

    5.6 ADVANCED THUMBSTICK SETTINGS At the top of the thumbstick window it is possible to switch to more advanced thumbstick settings. Enable eight directional zones will work only if the thumbstick is set to Keyboard mode. By enabling this setting you will be able to change keybinds for diagonal thumbstick directions.
  • Page 38 For example, if both angles are set to maximum, it is possible to eliminate diagonal keybinds. You can move exclusively only in WASD directions without AS, WD, etc. in-between directions. Enabling analog smoothing can help to get rid of thumbstick jitter.

  • Page 39: Profiles

    5.7 PROFILES ON-BOARD MEMORY To switch between the on-board memory profiles, you need to setup one of the buttons as Profile switch (by default it is the closest pinky button) and then while holding it, move the scroll wheel. Which LED lights lit ...
  • Page 40 SOFTWARE PROFILES To work with software profiles, you need to turn them on by pressing ON/OFF button near “SOFTWARE”. Note! When using software profiles, the Azeron software must running background while playing the game. using Software profiles, it is possible to choose 2...

  • Page 41: Profile Import / Export

    The list of profiles can be reordered by drag & dropping with your mouse. Any software profile can also be sent to On-board memory, by pressing Copy To and choose in which profile to copy the keybinds or choose to create a new profile in the on-board memory.

  • Page 42: Automatic Profile Switching

    Then when we finish playing the game and close it, keypad will switch back to “SolidWorks” profile, because it is set as default. In the Settings you can turn ON an option that, when launching Azeron software, it checks what software/games are already opened.

  • Page 43: System Tray Icon

    Software mode – switch the keypad to software profile mode Visit Azeron – open Azeron.eu download site Exit – close the Azeron software completely You can double click on the Azeron icon in the system tray to open the software window. Page | 42...

  • Page 44: Mouse Sensor Settings

    5.9 MOUSE SENSOR SETTINGS At the top of each profile there is a button for Cyro mouse sensor settings: It is possible to adjust DPI and sensor angle, or even turn off the sensor completely. Page | 43 | Manual...

  • Page 45: Settings

    6. SETTINGS At the left side of the software you can select Settings button to access all the software and keypad settings: APPEARANCE Under Theme section you can choose the color theme for whole software. Under Button mapper you can change size of the buttons and keybind font size.
  • Page 46 Hide custom labels will hide the labels for each button you have created, only keybinds will be visible. Show keybinds with custom labels (visible only if Hide custom labels is OFF) will allow to switch between 2 modes – having visible only button labels or visible labels together with keybinds.

  • Page 47: Update Settings

    UPDATE SETTINGS Version information. Here you can see what software and firmware you are using. And check out what have been changed in Release Notes. Update settings. By turning On the “Auto update enabled” it will offer to install the newest software version as soon as it is released. If you are ok to use beta version of the newest release and test new features before they are “polished”, you can turn On the “Beta Version Opt in”...

  • Page 48: Windows Settings

    If you enable Start with Windows, then whenever you turn on your PC, the Azeron software will open automatically at the startup. It is possible to minimize the Azeron software to Windows system tray (at the bottom near the clock) by enabling option Close button minimizes software to the tray.
  • Page 49 IMPORT / EXPORT At the Import/Export option it is possible to Export and Import all your profiles. You can back up all of your profiles in .JSON file, to prevent any accidental deletion when reinstalling software or Windows, updating firmware, etc. You can also export/import individual profiles – see how to here: 5.6.1 PROFILE IMPORT/EXPORT Note! Profiles that are in on-board memory will not be exported! Only software...
  • Page 50 With Global analog throttle it is possible to control how often inputs are sent from your thumbstick (only in keyboard mode). The higher the number, the more milliseconds are between each input sent. And the other option at the bottom is for changing the default macro duration for each macro step.

  • Page 51: Troubleshooting

    7. TROUBLESHOOTING 7.1 DEVICE IS NOT RECOGNIZED If your PC or Azeron software doesn’t see your device or firmware update failed, please follow these troubleshooting steps: Is LED lights on? Yes -> Go to LED lights on No -> Go to LED lights off 7.1.1 LED lights ON...

  • Page 52: Led Lights Off

    Make sure not to use special USB ports, for example USB3.1 Gen2 Step 3 – check if USB cable is working by plugging the Azeron Cyro in other PC or device that can recognize standard keyboard and mouse.
  • Page 53 Step 5 – See if the Azeron device is recognized in the device manager. If there shows up more than one controller, unplug Azeron, delete the other controller. Restart PC and plug in the Azeron. If none of the above works, try reinstalling software and firmware.

  • Page 54: No Usb Chime When Connecting

    Make sure not to use special USB ports, for example USB3.1 Gen2 Step 3 – check if USB cable is working by plugging the Azeron Cyro in other PC or device that can recognize standard keyboard. Step 4 – if you have a spare data USB-C cable, please try plugging in...

  • Page 55: Button Issues

    7.2.2 Button not registering any input in PC Step 1 – in Azeron software go to Settings -> Troubleshooting -> Utilities and try any of the reset buttons. Step 2 – if that doesn’t help, then the problem is in hardware, please contact us on info@azeron.eu...

  • Page 56: Thumbstick Issues

    Step 3 – in Azeron software go to Settings -> Advanced -> adjust the button throttle slider to higher numbers until the ghost clicks disappear. You can also choose the Type 2 method which is more aggressive to eliminate button ghost clicks. If the slider is to the maximum and none of the methods helps, then most likely the switch inside the device has expired and needs to be changed.
  • Page 57  If you are running the game via Steam platform, it can overwrite your controller settings. To turn it off for a specific game: open the game page, click on Gear icon choose Properties, in Controller tab from drop down choose “Disable Steam Input”: Page | 56 | Manual...
  • Page 58 Or to turn it off in general Steam settings for all games: Click on Steam -> Settings -> Controller OR go in Big Picture mode and at the top click on Gear icon, then Controller. Find “Enable Steam Input for Xbox controllers”...

  • Page 59: Thumbstick Is Going In Diagonal Line Or In One Corner

    Check if anything in the contact is bent. If you are experiencing further issues, please email us on info@azeron.eu 7.3.3 Thumbstick is physically getting stuck If your thumbstick feels sticky or is getting...

  • Page 60: Thumbstick Is Acting As Right Stick

    7.4 BROKEN PARTS If any part is broken on your keypad, it is possible to fix it. Azeron is made modular, so that it is possible to change parts. There is a spare parts section in our shop https://store.azeron.eu/service-parts...

  • Page 61: Tips And Tricks

    8. TIPS AND TRICKS  Cyro comes with a strap for a reason, it must be on while using the mouse to be able to reach all the buttons comfortably and be able to lift and move around the mouse without issues.
