Summary of Contents for MClimate HT Sensor LoRaWAN

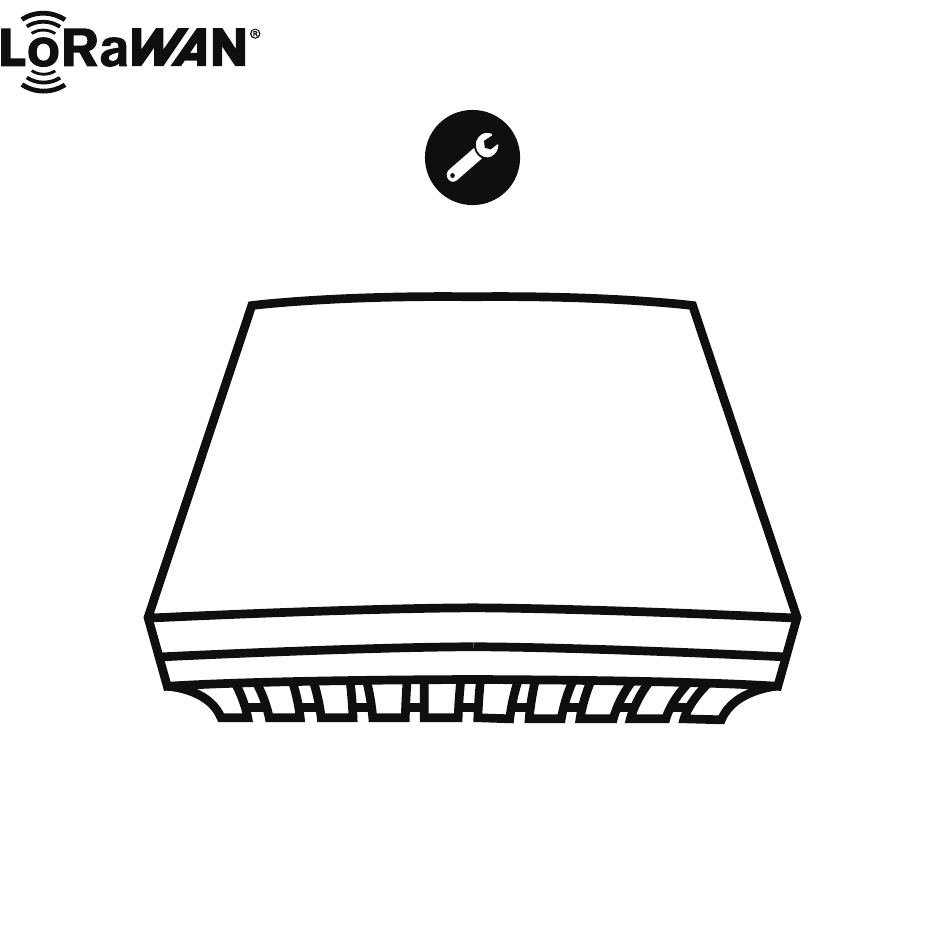

- Page 1 MClimate HT Sensor LoRaWAN® User manual...
-
Page 2: Need Some Help
Scan the QR Code Bulgarian Czech to access MClimate HT За да разберете как се Chcete-li zjistit, jak инсталира MClimate HT nainstalovat MClimate HT Sensor LoRaWAN® Sensor LoRaWAN®, Sensor LoRaWAN®, extended сканирайте QR кода или prohlédněte si kód QR nebo documentation посетете... -
Page 3: Table Of Contents
Table of content What’s inside the box? What is in the box? Technical details, Safety instructions, Legal Notices & Compatibility Device Parts, Mechanical dimensions MClimate HT Sensor LoRaWAN® LED, Buttons and behaviour Commissioning Installation Installation of external temperature 2xAA Batteries... -
Page 4: Technical Specifications
/ or other product Work temperature: 0°С to +50°С specifications are subject to change without Material: ABS notice. MClimate retains all rights to review or Environmental conditions, in which the device is update its products, software or documentation intended to operate: without being required to notify any natural or - Indoor using;... -
Page 5: Device Parts
Device parts Batteries holder Status NTC Sensor button status port Assembled MClimate HT Sensor Disassembled MClimate HT Sensor LoRaWAN®, top view LoRaWAN®, top view... -
Page 6: Led, Buttons And Behaviour
LED, Buttons and behaviour When you press the button, the device indicates the current network status: Device has successfully connected to the network (has received Join Accept): a.The LED will show constant light for about 1 second to indicate it has successfully connected to a network. - Page 7 LED, Buttons and behaviour Connector for optional external Status button LED status 10K NTC temperature sensor. Warning: The button has no other function than to check the connection status. Long-pressing it will NOT reset the device.
-
Page 8: Commissioning
Commissioning Open your LoRaWAN® Network provider access panel and add the device using the supplied Serial Number, DevEUI, AppEUI (JoinEUI) and AppKey. The data is example. Do not use. Continue the Installation with the instructions of your LoRaWAN® Network provider. You can get DevEUI, AppEUI (JoinEUI) &... - Page 9 After pulling away the protective film from the batteries, the device will automatically connect to the network. In order to see whether the device has connected to the network, please check LED, Buttons and behaviour. In order to remove the frontal plastic cover, apply pressure on the top and bottom of the front plate with one hand and hold the...
-
Page 10: Installation
We recommend installing the device so that the QR code with the serial number stays on the bottom-right side of the device in order to ensure good measurements. 1.1 cm 3 cm 0.5 cm 0.5 cm 5.5 cm Screw holes Disassembled MClimate HT Sensor LoRaWAN®, back view... -
Page 11: Installation Of External Temperature Sensor (Ntc)
Installation of external temperature sensor (NTC) MClimate HT measures ambient temperature and relative humidity using a digital temperature sensor. The device also supports installing an additional temperature sensor (NTC) in cases where you want to monitor e.g. pipe surface temperature. - Page 12 Designed & Manufactured by MClimate in Europe. last update: 05.04.2024...
