• Always remove plug from outlet before servicing your grill.
• Make sure your grill has fully cooled to avoid burns.
• Some components may have sharp edges. Use caution to avoid injury.
1

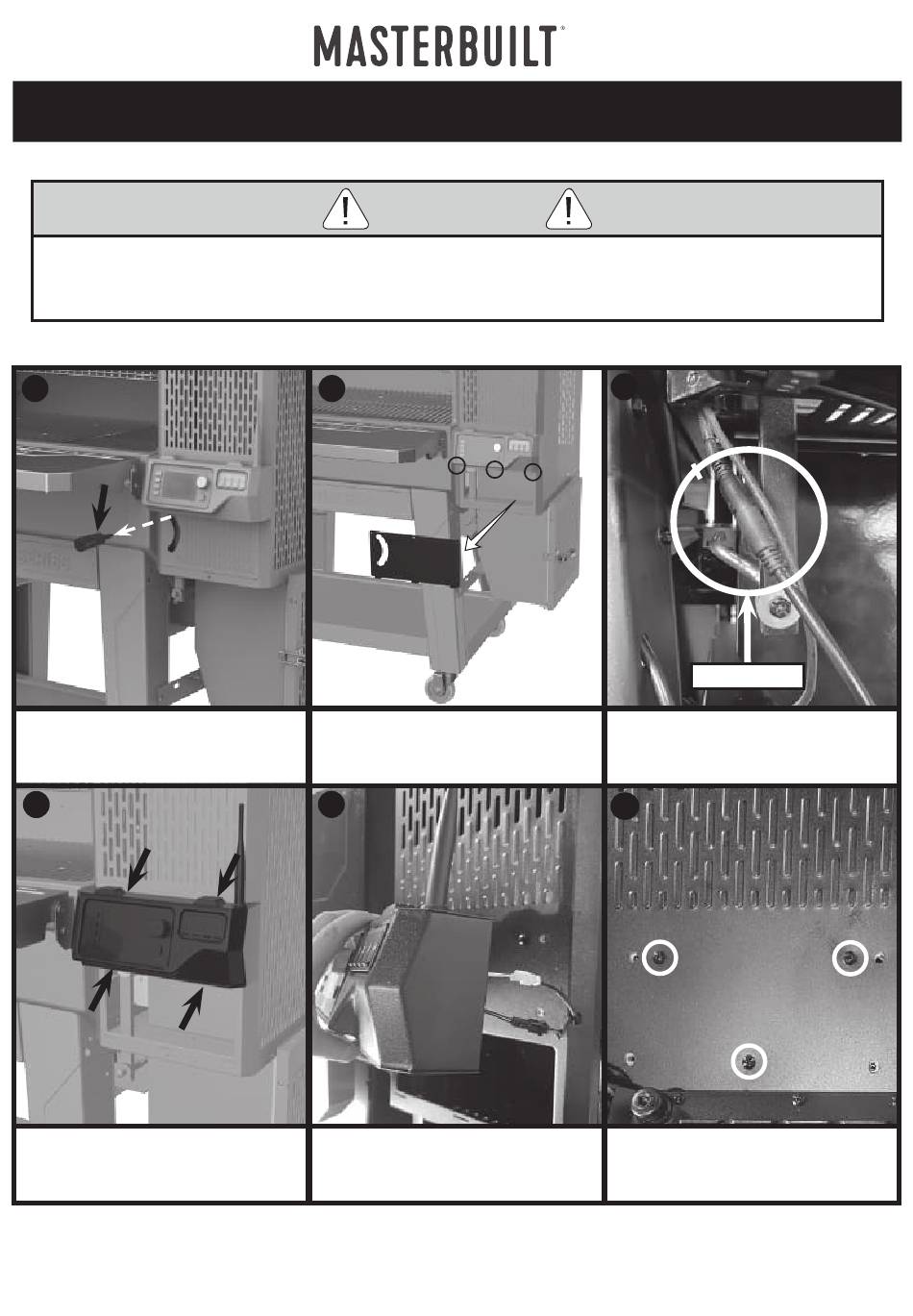

Remove 1 screw on the shutdown flap
handle. Unscrew the shutdown flap handle.
4
Remove the 4 thumb screws from the back
of the controller.
Remove the controller.
Controller Module kit, GSGXT
MB20041223, MB20043024
Note: Your grill may vary from images shown
2
Remove 3 screws on the small hopper
shroud. Remove the shroud.
5
Disconnect two black and white wire
connections on the side of the controller .
CAUTION
3
CONTROLLER
Remove the controller connections.
3
6
Loosen 3 screws on the insulation housing
to make room for the power plug.
601867 240315-GH
