- Page 1 PS30 Low Voltage Switching DC Power Supply...

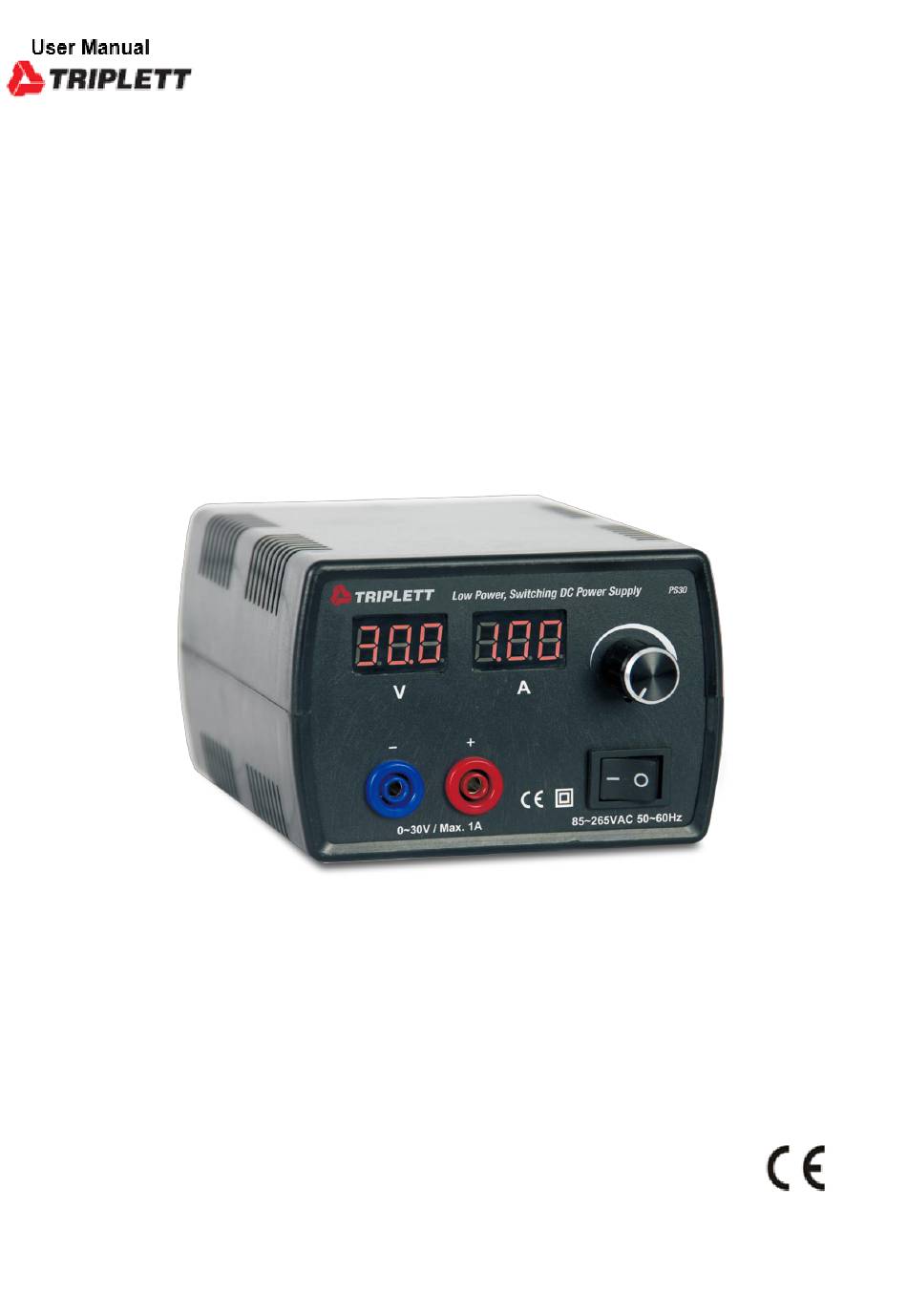

- Page 2 Introduction Congratulations on your purchase of the Triplett PS30 Power Supply. The Triplett PS30 is a low power switching DC power supply with 6 fixed output voltages and over current protection. The unit has compact structure, double insulation, safety and easy operation, wide voltage import, good performance, novel appearance and more.
- Page 3 Specifications Meter Description (1) Power switch: the unit is "ON" when in I position (2) Fixed DC output terminal (+): connecting the positive terminal of load (3) Fixed DC output terminal (-): connecting the negative terminal of load (4) Voltage display: display the output voltage (5) Current display: display the output current (6) Voltage adjustor: adjust the output voltage continuously...
- Page 4 Operation Load connection: A Load is connected as shown above. After the unit is switched on, six different fixed voltages DC power can be supplied to the load. Rotate selection knob (5) to select the voltage. To get more accurate measuring value, you should monitor by an external circuit with precision measuring meter. CAUTIONS •...
