Iflight Nazgul XL5 ECO Assembly Manual

Frame

Advertisement

Quick Links

Nazgul XL5 ECO V1.1
机架组装示意图

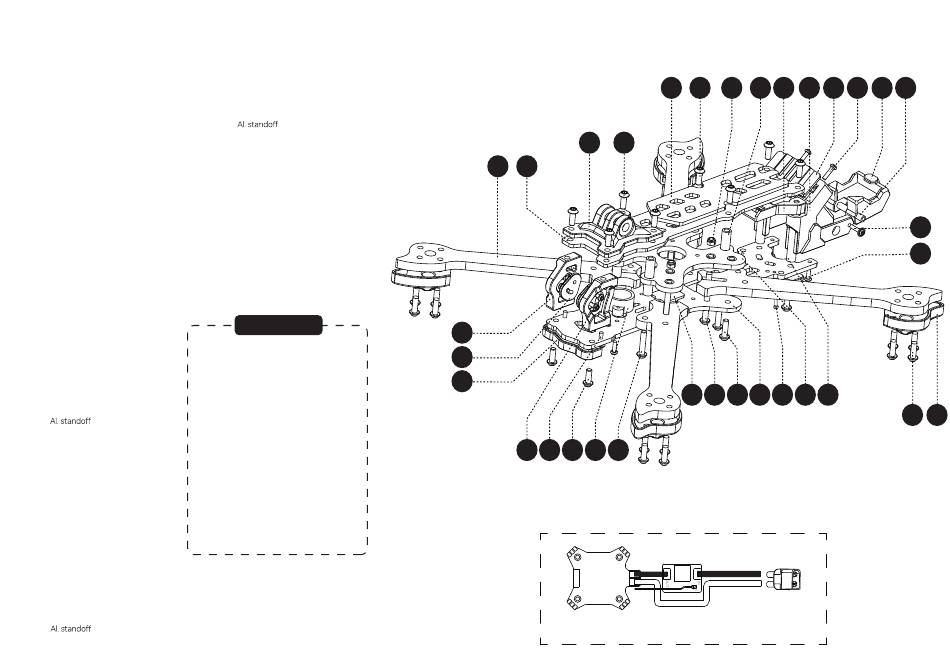

Frame Assembly Guide
顶板
1.
x1
Top plate
中板
2.
x1
Counter plate
机臂
3.
x4
ArmA
底板
4.
x1
Bottom plate
摄像头侧板CNC
5.
x1
CNC camera side plate
脚垫打印件 TPU
6.
x1
Arm guard TPU
GPS座 TPU
7.
x1
GPS mount TPU
可调节狗座底座打印件 TPU
8.
x1
GoPro bottom stand TPU
前后保险(一对分左右) TPU
9.
x1
Front bumpers
TPU
(left & right)
接收机座 TPU
10.
x1
Receiver Mount TPU
摄像头硅胶侧板
11.
x1
Silicone camera side plate
图传天线座打印件
12.
x1
Antenna TPU
LED灯显LOGO 打印件
13.
x1
LED logo TPU
BB响/蜂鸣器打印件
14.
x1
Buzzer holder TPU
15.
M3*22 圆形网纹铝柱
x5
M3*22
16.
M3 防松自紧螺母
x5
M3 lock nut
M3*8 内六角螺丝
17.
x5
M3*8 hex screw
M3*10 内六角螺丝
18.
x5
M3*10 hex screw
M3*14 内六角螺丝
19.
x5
M3*14 hex screw
M3*30 内六角螺丝
20.
x5
M3*30 hex screw
M2*5 内六角螺丝
21.
x5
M2*5 hex screw
M3*9 内六角螺丝
22.
x18
M3*9 hex screw
M1.6*10 杯头内六角螺丝
23.
x5
M1.6*10 socket head cap
M3*29 圆形网纹铝柱
24.
x3
M3*29
M3*6 内六角螺丝
25.
x5
M3*6 hex screw
26.
M3*8 内六角带垫螺丝
x5
M3*8 wash head hex screw
27.
M2*25 圆形网纹铝柱
x2
M2*25
28.
M2*8 内六角带垫螺丝
x3
M2*8 wash head hex screw
29.
M2*8 内六角自攻螺丝
x5
M2*8 self-tapping hex screw
30.
M2*6 内六角沉头螺丝
x3
cou nter sunk hex screw
M2*6
M2*10 内六角自攻螺丝
31.
x3
M2*10 self-tapping hex screw
尾座盖 ABS
32.
x1
XT60 Plug Mount ABS
格纹硅胶电池防滑垫
33.
x2
Battery pad
侧板
34.
x1
Side panels
附赠
(附赠)/(Additional parts)
(附赠)/(Additional parts)
Additional parts
XT60EW-M 公头
1.
x1
XT60EW-M connector with cable
电源线
2.
x2
Power cable
集线管
3.
x4
Motor wire protector
20*250超纤皮电池扎带
4.
x2
20*250 Battery strap
M5螺母
5.
x1
M5 nut
内六角扳手
6.
x1
Allen wrench
M5*20 内六角螺丝
7.
x1
M5*20 hex screw
通用贴纸V4
8.
x1
Sticker V4
9.
PEX直头转SMA直头内针转接线 总长8CM
x2
IPEX to RP-SMA F Adapter Cable 8CM
8
26
3
1
5
11
9
21
30
17
14
19
ESC
33
25
16
15
10
12
32
13
20
18
4
23
2
24
-
+
防打火模块接线
Anti-Spark filter wiring diagram
31
7
27
28
29
22
6
