Iflight MACH R5 SPORT LITE Assembly Manual

MACH R5 SPORT LITE碳板机架组装说明书
MACH R5 SPORT LITE Frame Assembly Guide
包装里有：
Packing list：
顶板 ×1
1
Top plate
×1
中板
2
Upper plate
底板 ×1
3
Bottom plate
机臂A ×2
4
ArmA
机臂B ×2
5
ArmB
图传天线座 TPU 打印件 ×1
6
Antenna Mount TPU
鲨鱼鳍 TPU打印件 ×1
7
Sharkfin TPU
14mm头罩 TPU打印件 ×1
8
14mm Camera canopy TPU
×1
接收机天线座 TPU打印
9
Receiver Antenna Mount TPU
格纹硅胶电池防滑垫 ×2
10
Batter y Pad
20*250mm 超纤皮电池扎带 ×2
11
20*250 mm Batter y strap
套机通用贴纸V4 ×1
12
Sticker V4
×5
M3*25mm圆形网纹铝柱
13
M3*25mm standoff
M3*16mm半圆头螺丝 ×5
14
M3*16mm half round head screws
M3*34mm半圆头螺丝 ×5
15
M3*34mm half round head screws
M3*11mm半圆头螺丝
×5
16
M3*11mm half round head screws
M3*8mm半圆头螺丝 ×20
17
M3*8mm half round head screws
×5
M3 防松自紧螺母
18
M3 screw nut
M2*4mm半圆头螺丝 ×3
19
M2*4mm half round head screws
×2
M2*5mm 半圆头螺丝
20
M2*5mm half round head screws
×3
M2.5*8mm 半圆头螺丝
21
M2.5*8mm half round head screws
×4
集线管
22
Motor wire shield tube
XT60EW-M 公头 ×1
23
XT60EW-M batter y plug

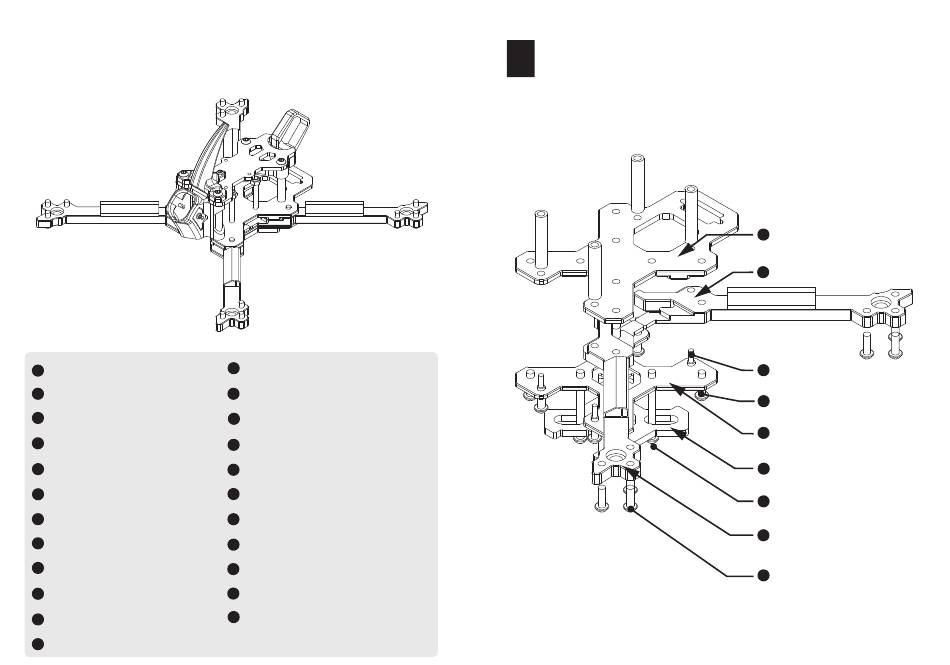

组装说明：
1
Part One
中板
2
Upper plate
机臂B
5
ArmB
M3*16mm半圆头螺丝
14
M3*16mm half round head screws
M3*11mm半圆头螺丝
16
M3*11mm half round head screws
底板
3
Bottom Plate
格纹硅胶电池防滑垫
10
Batter y pad
M3*34mm半圆头螺丝
15
M3*34mm half round head screws
机臂A
4
ArmA
M3*8mm半圆头螺丝
17
M3*8mm half round head screws
