BTECH BS-PTT Pairing Instructions

BS-PTT wireless PTT usage and pairing instructions
*Require wireless hand microphone or helmet microphone to use with it together*
Wireless PTT (only be compatible with our company's N series radios)
The wireless PTT has been waterproofed in the factory and can adapt to the complex outdoor use
environment.

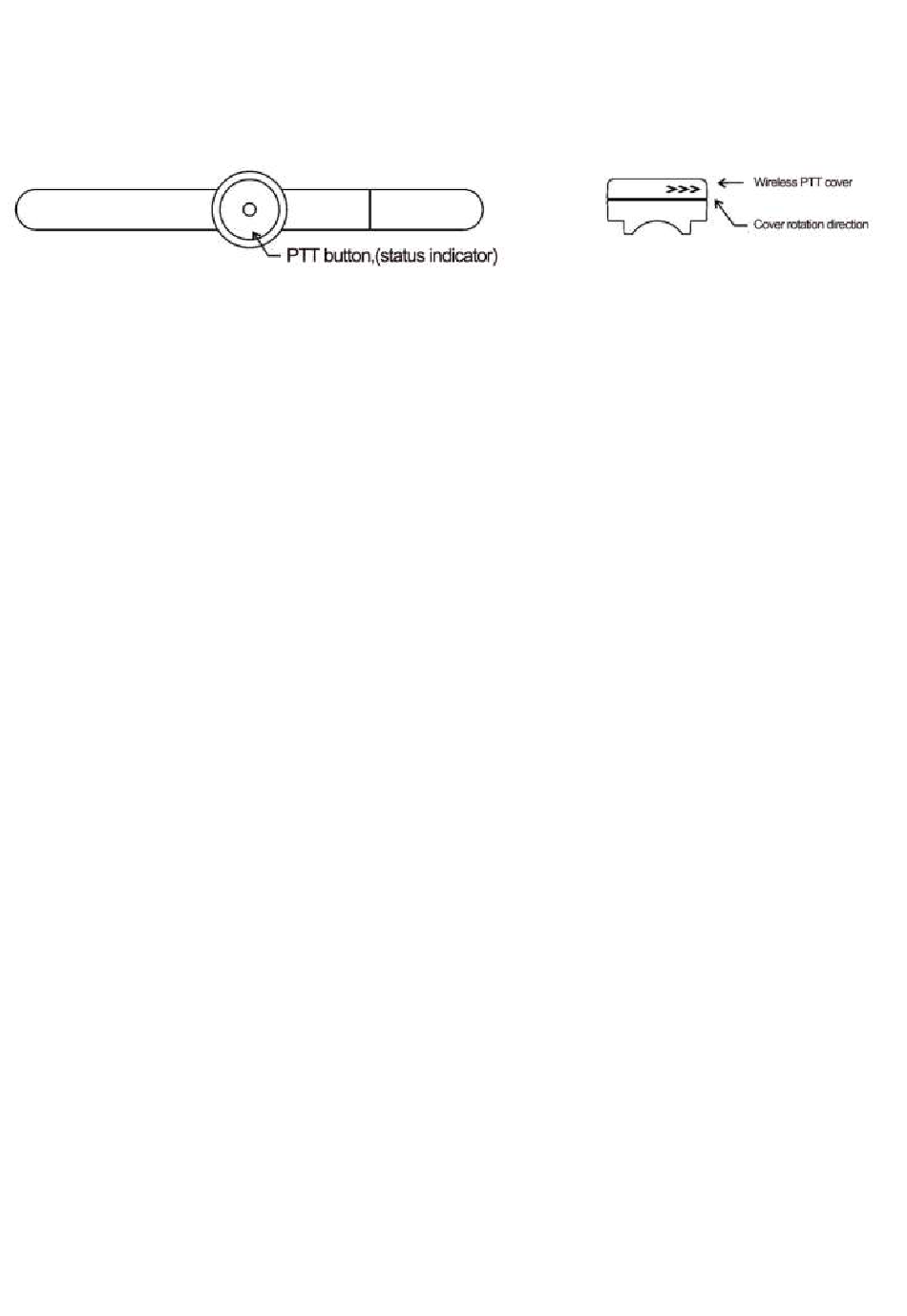

Status indicator: Short click the PTT button to enter pairing status, the indicator will flash quickly.
Press the PTT button after pairing, the indicator light flashes slowly if connection fails, try to connect
again within 1-2 seconds. If still unable to connect, the wireless PTT will enter the pairing status
(indicator flashes quickly).
Battery use and replacement: The BS-PTT uses CR1632 button cell to supply power, open the APP
device to check the battery voltage when it be in use, please replace the battery when the battery
voltage is too low or can not be used. To replace the battery, unscrew the wireless PTT cover in the
direction shown in the figure above, push out the battery with a non-metallic rod (remember the
battery direction), reinstall the battery in the correct direction (the battery positive corresponds to
the positive of the module), and put the lower cover back after checking for correct. Rotate the upper
cover in the reverse direction of removal to use.
--------------------------------------------Wireless PTT Pairing---------------------------------------------------
I. Use the mobile APP to pair
1. Press and hold the wireless PTT button, wait for the wireless PTT indicator to flash to enter the
pairing state.
2. Open the APP to enter the settings, click the connection management to open the scan.
3. In the list of paired devices, the <PTT-1> existing means pairing is successful, release PTT then
press it again to check whether the transmission icon on the app works or not. If there is no wireless
