Hideaway
Supplied Components:
x1 Hideaway Hut
Before
- Insert all cross dowels into machined holes (using hammer if required)
- Using a screwdriver align cross dowels in center of hole
Starting:
- Partially thread screws into cross dowel to check these are aligned

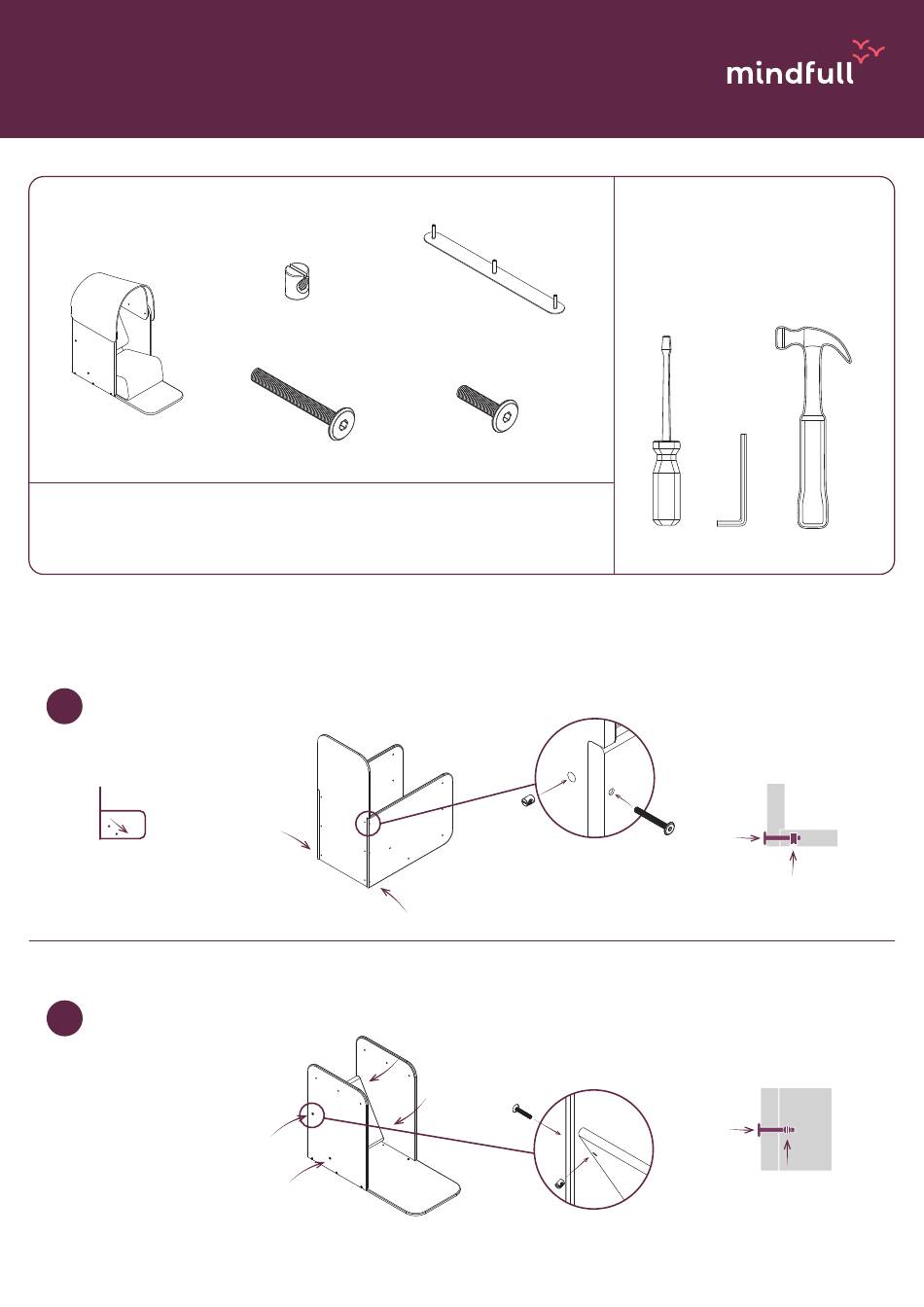

Assembly instructions:
1
Tip base on its end.
Place sides with back
rest fastening holes
drawing a line to
the right.
Fix sides to base using
x6 cross dowels &
x6 45mm bolts.
2
Position back in line
with the fixing holes
on the sides &
fasten using
x4 cross dowels &
x4 45mm Bolts.
Version: 5.1
Hood
x10 Cross Dowel
x2 Long Fixing Bar
x18 45mm Bolt
Front
Left
x6 20mm Bolt
Right
Tools required:
- Flat head screwdriver
- Hex head driver/alan key
- Hammer/mallet
mindfullspaces.com
1/2
Advertisement
Related Manuals for mindfull HideawayHood
Summary of Contents for mindfull HideawayHood
- Page 1 Hood Hideaway Supplied Components: Tools required: - Flat head screwdriver - Hex head driver/alan key - Hammer/mallet x10 Cross Dowel x2 Long Fixing Bar x1 Hideaway Hut x18 45mm Bolt x6 20mm Bolt Before - Insert all cross dowels into machined holes (using hammer if required) - Using a screwdriver align cross dowels in center of hole Starting: - Partially thread screws into cross dowel to check these are aligned...
- Page 2 Hood Hideaway Position outer and inner roof either side of the wall with the grooves facing Inner Outer towards the middle. Slide the fixing bar through the fixing holes & secure using x3 20mm bolts. Fold the Inner and Outer roof over & position either side of the wall.
