You have received:

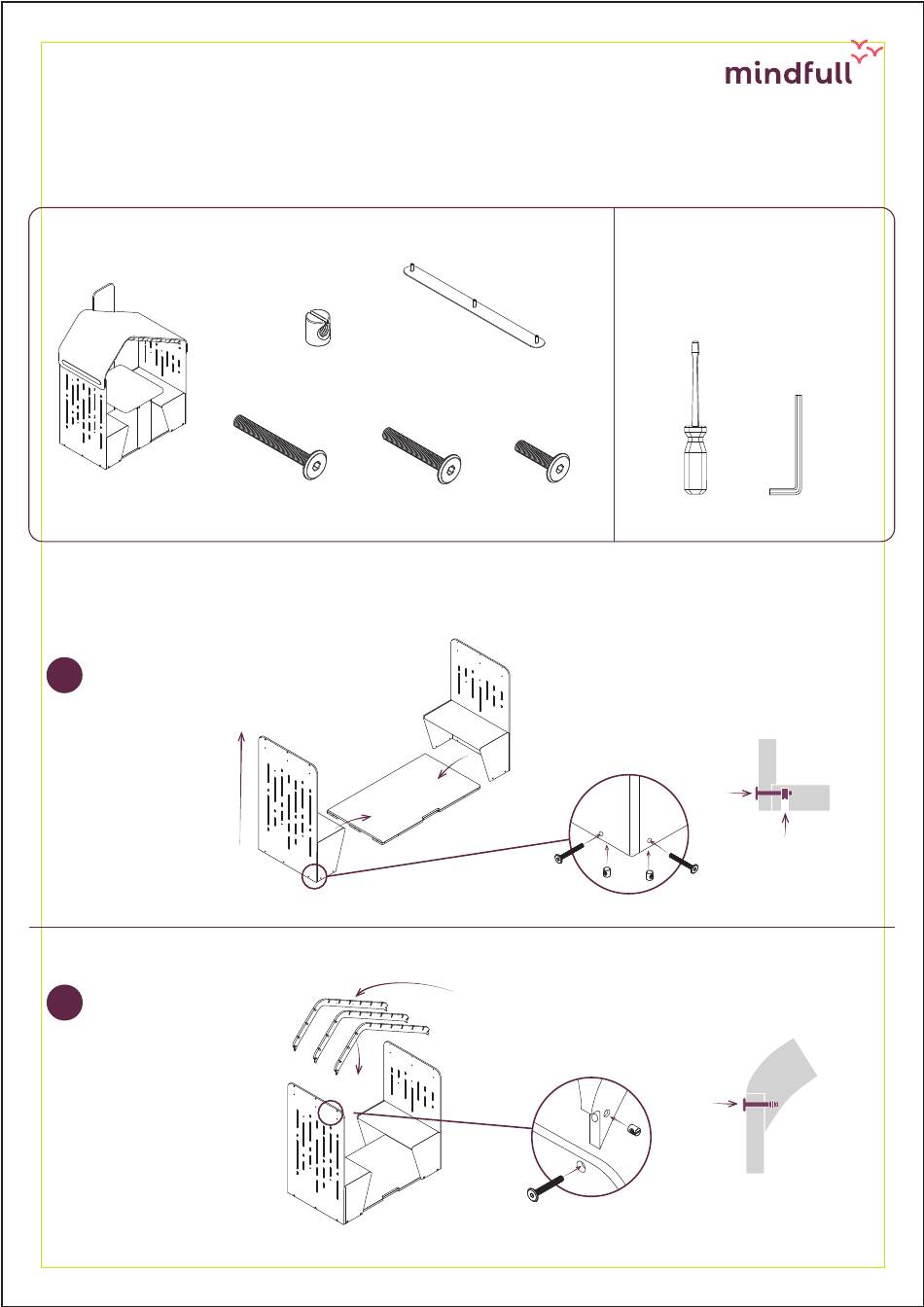

Assembly instructions:
1.
Slide the seat & side around the
end of the base. Fasten using
x14 cross dowels &
x14 45mm bolts.
Ensure the
tall side is on
the Left.
2.
Position stringers
with the short side
to the left.
Fix stringers to sides
using x6 cross dowels
& x6 32mm bolts.
mindfullspaces.com
x18 Cross Dowel
x10 32mm Bolt
x22 45mm Bolt
Back
Left
Front
Left
x2 Long Fixing Bar
x12 20mm Bolt
Right
Front
Ensure the stringer with
fastening holes is at the back.
Right
Tools required:
-Flat head screwdriver
-Hex head driver/alan key
1/3
