Model #
2402GACe
2402CAFe

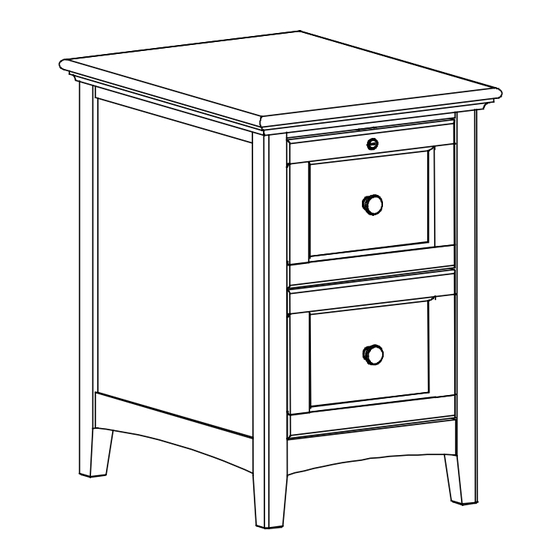

McKenzie
File Cabinet
GAC = Glazed Antique Cherry finish
CAF = Caffè finish
Assembly Instructions
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
• For normal household use only. Not recommended for commercial use.
• Use a protective pad when you use the top of this piece as a writing
surface.
• Do not climb, sit or stand on this piece of furniture.
• Do not overload the drawers.
• Unload items before you move this unit.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
VN
WARNING
12/19
Advertisement
Related Manuals for Whittier Wood Furniture McKenzie File Cabinet 2402GACe
Summary of Contents for Whittier Wood Furniture McKenzie File Cabinet 2402GACe
- Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
-
Page 2: Parts List
2402GACe 2402CAFe McKenzie File Cabinet Parts List Please identify the parts and check that quantities received match those on this list. If you need to replace a part, refer to the following letter and part name. Part Description Quantity Case Assembly Top Assembly (attached) Lower Drawer (inserted) Upper Drawer Face (installed) - Page 3 2402GACe 2402CAFe McKenzie File Cabinet Parts List Part Description Quantity Anti-Tip Snapper (attached) Drawer Clip (attached) 2402GACe_2402CAFe — Page 3 — 12/19...
- Page 4 2402GACe 2402CAFe McKenzie File Cabinet Assembly Instructions Tool Required: Phillips Screwdriver Use a protective pad when you use the top of this piece as a writing surface. The keys and the Aluminum File Rails are inside the hardware box. Store your letter-sized hanging folders either parallel or perpendicular to the front of the drawer. Legal-sized folders must hang perpendicularly.
- Page 5 2402GACe 2402CAFe McKenzie File Cabinet Assembly Instructions This piece of furniture includes a drawer interlock system allowing only one drawer to be open at a time. This is a safety feature to reduce the risk of tip over. Do not defeat or remove the drawer interlock system.
- Page 6 2402GACe 2402CAFe McKenzie File Cabinet Assembly Instructions When removing drawers from furniture featuring the Anti-Tip Drawer Interlock System it is important that the drawer is installed back in its original location. Numbers and letters are stamped on the back of the drawers. Stamping sequence starts at the bottom, moves to the top. Drawer back stamping example: Fig.
- Page 7 2402GACe 2402CAFe McKenzie File Cabinet Assembly Instructions Example; if you want to remove the First Drawer and Second Drawer from the cabinet; remove the Second Drawer first. When you remove this drawer, the upper arm on the Anti-Tip Snapper for that side will be pulled forward. See Fig. 8d. As long as this arm is angled toward the front of the case, you cannot remove the First Drawer.
