Operating Instructions
LED TV
Model No.
TX-32FS403E
TX-40FS403E
For more detailed instructions, please refer to [eHELP]
(Built-in Operating Instructions).
How to use [eHELP]
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and
retain them for future reference.
Please carefully read the "Safety Precautions" of this manual before use.
The images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local
Panasonic dealer for assistance.

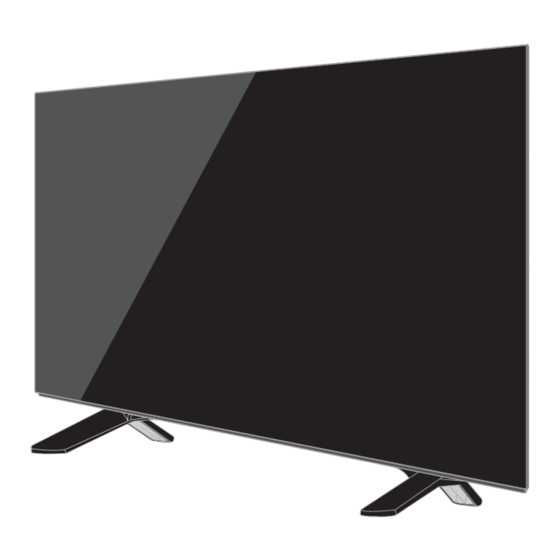

(image: TX-40FS403E)
(p. 19)
English
Italiano
ýHVN\
English
