Adjustments
A. Capscrew and
Lock washer
(two places)
B. Nut and
Lockwasher
(two places)

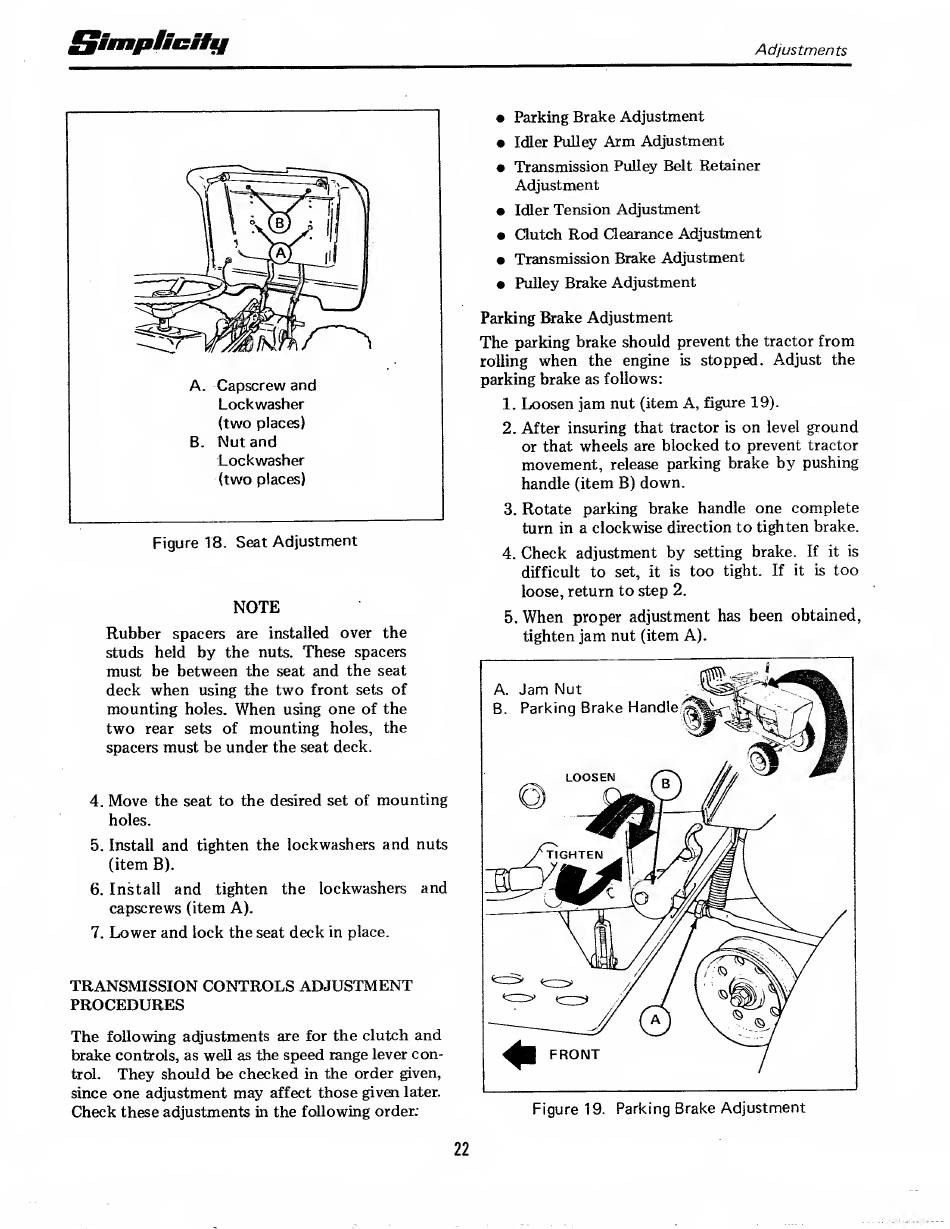

Figure 18. Seat Adjustment
NOTE
Rubber spacers are installed over the
studs held by the nuts. These spacers
must be between the seat and the seat
deck when using the two front sets of
mounting holes. When using one of the
two rear sets of mounting holes, the
spacers must be under the seat deck.
4. Move the seat to the desired set of mounting
holes.
5. Install and tighten the lockwashers and nuts
(item B).
6. Install and tighten the lockwashers and
capscrews (item A).
7. Lower and lock the seat deck in place.
TRANSMISSION CONTROLS ADJUSTMENT
PROCEDURES
The following adjustments are for the clutch and
brake controls, as well as the speed range lever con¬
trol. They should be checked in the order given,
since one adjustment may affect those given later.
Check these adjustments in the following order;
• Parking Brake Adjustment
• Idler Pulley Arm Adjustment
• Transmission Pulley Belt Retainer
Adjustment
• Idler Tension Adjustment
• Clutch Rod Clearance Adjustment
• Transmission Brake Adjustment
• Pulley Brake Adjustment
Parking Brake Adjustment
The parking brake should prevent the tractor from
rolling when the engine is stopped. Adjust the
parking brake as follows:
1. Loosen jam nut (item A, figure 19).
2. After insuring that tractor is on level ground
or that wheels are blocked to prevent tractor
movement, release parking brake by pushing
handle (item B) down.
3. Rotate parking brake handle one complete
turn in a clockwise direction to tighten brake.
4. Check adjustment by setting brake. If it is
difficult to set, it is too tight. If it is too
loose, return to step 2.
5. When proper adjustment has been obtained,
tighten jam nut (item A).
Figure 19. Parking Brake Adjustment
