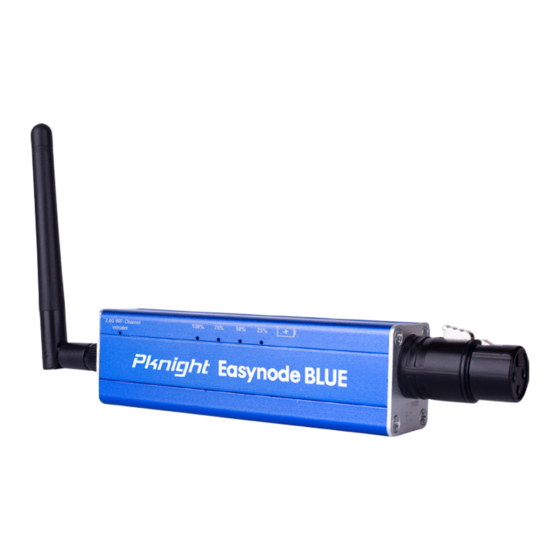

- Page 1 wifi-dmx easynode BLUE User Manual...
-
Page 2: Customer Support
Introduction Pknight® WIFI-DMX EasyNode Introduction: Congratulations and thank you for purchasing the Pknight WiFi- DMX EasyNode. The plug is a wireless bridge between your WiFi device and all lighting products equipped with DMX512. It is the ideal solution for film and television video lights or for any event where you don’t want data... - Page 3 Introduction Pknight® WIFI-DMX EasyNode The app we can use: own production free app *note*There are many other apps not on the list Pknight WiFi-DMX EasyNode Manual Page 2 ®...
- Page 4 Indicators Pknight® WIFI-DMX EasyNode Charging Port (Type-C) Power Indicator Antenna Function Button *refer to Page 4. Output Port （ USB-A ） Works as a power bank for other devices 2.4G WiFi Channel Indicator · Fast blink: Detects ArtNet or sACN input and outputs DMX signal ·...
- Page 5 General Instructions Pknight® WIFI-DMX EasyNode • For optimal performance, position the antenna higher with minimal obstructions. • Avoid using the device in crowded 2.4G environments. • Avoid using the device in crowded 2.4G environments. • Resetting the device will restore default settings.
- Page 6 Indicators Pknight® WIFI-DMX EasyNode WiFi indicator diagram 13 colors Channel Indicator Blue Magenta Yellow White Green Cyan Blue+White Red+White Magenta+White Yellow+White Green+White Cyan+White Reminder: The color of the indicator light inside the dashed rounded rectangle will cycle between two colors.
- Page 7 Pknight® WIFI-DMX EasyNode All setup is done by the device with the apps installed. Turned on the Pknight® WIFI-DMX EasyNode, you should be able to find the “PKNIGHT. WIFI+64123” network using the Wi-Fi settings on your mobile network equipment. (*note*The red number...
- Page 8 Setting Pknight® WIFI-DMX EasyNode PKNIGHT.WIFI Here we have completed the work of signal connection, if you want to change this controller WiFi name and password, open the web browser of your device and enter 192.168.4.1, a view will appear similar to the following figure.
-
Page 9: Wifi Setting
Setting Pknight® WIFI-DMX EasyNode WiFi SETTING Pknight WiFi-DMX EasyNode Manual Page 8 ®... - Page 10 Setting Pknight® WIFI-DMX EasyNode If you want to connect an external router, you need to enter the router's WiFi name and password, and not only that, you need to make sure the checkbox( ) is not checked if you want to make this connection take effect.(used only in router mode)
- Page 11 Multiple modes Pknight® WIFI-DMX EasyNode Easylink mode connected connected Unlimited number connected connected connected Phone or tablet... Pknight WiFi-DMX EasyNode Manual Page 10 ®...
- Page 12 Multiple modes Pknight® WIFI-DMX EasyNode How to do? In easylink mode,just make sure that the LED lights of each controller have the same color, and then connect the hotspot signal of any controller with a mobile phone.now it's good to go.
-
Page 13: Router Mode
Multiple modes Pknight® WIFI-DMX EasyNode Router mode connected Stand Alone Mode connected Stand Alone Mode connected connected Stand Alone Mode Router Phone or tablet... WiFi SSID:pknight Password:PKNIGHT.WIFI connected Stand Alone Mode In router mode, we want to build such a local... - Page 14 Multiple modes Pknight® WIFI-DMX EasyNode How to do? It's easy for our mobile phone or tablet PC.Let's follow the picture to set up the controller's network.First connect the mobile phone to the hotspot signal of the controller.Than open the mobile browser to do the operation as shown in...
- Page 15 Multiple modes Pknight® WIFI-DMX EasyNode Enter 192.168.4.1 in the browser Select the "WiFi" function bar Enter the WiFi information of the router Uncheck the Stand Alone checkbox Save Change Follow the steps in the figure above to connect all the controllers to the router one by one,the color indicator flashes on the controller should try different.
- Page 16 Bluetooth Pknight® WIFI-DMX EasyNode Bluetooth Available We support two apps for Bluetooth connection: Luminair (a third- party app) and WIFI DMX PRO (our proprietary app). Using a Bluetooth connection will not prevent your phone or tablet from connecting to the internet.
